This item is brand-new, factory sealed.

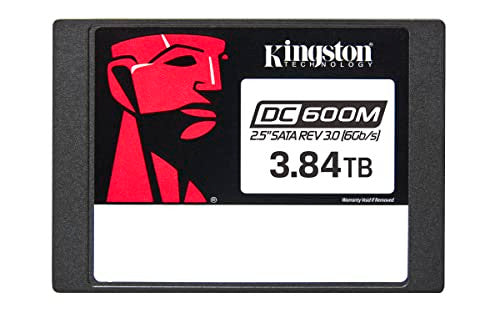

DC600M Series 2.5 SATA Enterprise SSD

6Gbps SATA 3.0 Storage for Mixed-Use Server Workloads

Kingstons DC600M and DC600ME SSDs are 4th generation data center SATA 3.0, 6Gbps SSDs utilizing 3D TLC NAND intended for mixed use server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully re-initialize on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers, and cloud service providers.


Designed for data center environments

Optimized to meet the high demands of Server RAID applications with low latency and IO consistency as the key design criteria.


Hardware-based PLP

Power loss capacitors to protect user data against unexpected power loss and enhance performance.


Delivers excellent Quality of Service (QoS ²

Optimized performance predictability to hit Service-level agreements (SLAs.


Note:

2. Quality of Service (QoS of an SSD refers to the consistency and predictability of Latency (response time and IOPS (IOs Per Second performance while servicing a read/write workload. QoS metrics demonstrate that, given a worst-case workload tested over a period of time, an SSDs latency and IOPS profiles stay within a specified range without having unexpected outliers causing a sudden drop in application performance. Form factor
2.5 Inch Interface
SATA Rev. 3.0 (6Gb/s - with backwards compatibility to SATA Rev. 2.0 (3Gb/s Capacities¹
3.84GB NAND
3D TLC DRAM Cache
Yes Sequential Read/Write
3.84TB - 560MBs/530MBs Steady State 4k Random Read/Write
3.84TB - 94,000/59,000 IOPS Quality of Service (Latency ^3,4,5 (99.999Read/Write
3.84TB - 200/300 uSec Typical Latency - Read/Write
<200 microsecond / <30 us^3,4,5 Hot-Plug Capable
Static and Dynamic Wear Leveling Enterprise SMART tools
Reliability tracking, usage statistics, life remaining, wear leveling, temperature Hardware-based Power Loss Protection
Yes Endurance (TBW ⁶
3.84TB, 1 DWPD (5 years, 1.66 DWPD (3 years Power Consumption
Idle: 1.30W
Average: 1.45W
Max Read: 1.6W
Max Write: 3.6W Storage temperature
-40^oC to 85^oC Operating temperature
0^oC to 70^oC Vibration operating
2.17G Peak (7-800Hz Vibration non-operating
20G Peak (10-2000Hz MTBF
2 million hours UBER
is less than or equal to 10 -17
