Overview

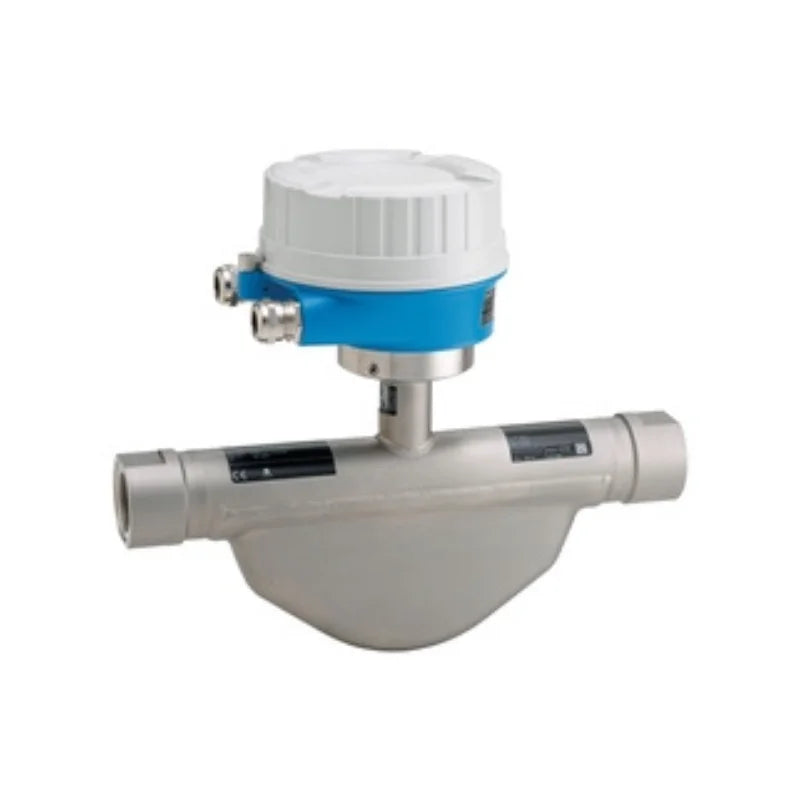

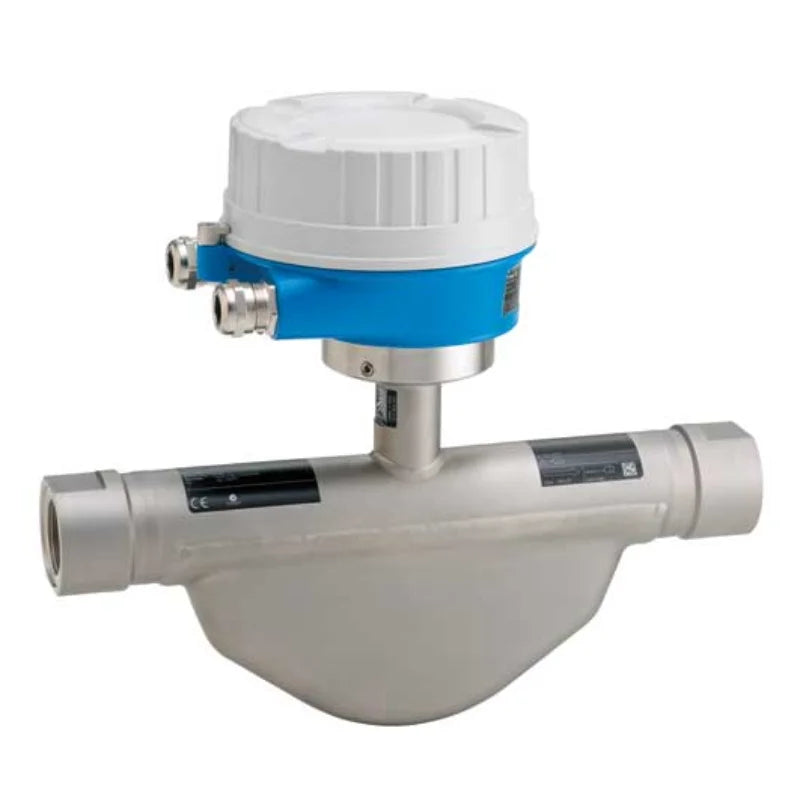

Endress+Hauser 8G1B Proline Promass G100 Coriolis Llowmeter is the most compact high-pressure sensor with an ultra-compact transmitter.

Specs at a glance

* Max. measurement error
Mass flow (liquid): ±0.15 %
Volume flow (liquid): ±0.15 %
Mass flow (gas): ±0.75 %
Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 18 000 kg/h (0 to 662 lb/min)
* Medium temperature range
–50 to +150 °C (–58 to +302 °F)
* Max. process pressure
350 bar (5080 psi)
* Wetted materials
Measuring tube: 1.4435 (316L)
Connection: 1.4404 (316/316L)


Field of application

Promass G provides safe and accurate measurement of liquids and gases in high pressure applications up to 350 bar (5080 psi).
Rupture disc and threaded process connections provide easy and safe integration. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Designed for applications where space is a premium, Promass G 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers.
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Accurate measurement of liquids and gases in high-pressure applications.

Device properties
* Internal threads as process connection
* Process pressure up to 350 bar (5080 psi)
* Rupture disc available
* Robust, ultra-compact transmitter housing
* Pre‐configured plug connector
* Local display available

Benefits

  * Easy and safe process integration – threaded connections
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Space-saving installation – no in/outlet run needs
* Space-saving transmitter – full functionality on the smallest footprint
* Time-saving local operation without additional software and hardware – integrated web server
* Integrated verification – Heartbeat Technology
