[shortdesc] 8x 10G SFP+ ports, 2x 25G SFP28 uplinks, 260 Gbps switching capacity, 193 Mpps throughput, L2/L3 surveillance optimization, TAA compliant. [/shortdesc]
[properties]
| Model |
AXIS D8308 (03063-004 |
| Product Type |
Fiber Aggregation Switch |
| Ports |
8 × SFP+ (10GBASE-LR/SR, 2 × SFP28 (25GBASE-LR/SR |
| Switching Capacity |
260 Gbps |
| Throughput |
193.44 Mpps |
| MAC Table |
32 K |
| Jumbo Frames |
10240 bytes |
| Operating Temperature |
0 to 50 °C (32 °F to 122 °F |
| Storage Temperature |
-20 °C to 70 °C (-4 °F to 158 °F |
| Humidity |
0–95% RH operating; 5–95% RH storage (non-condensing |
| Casing |
Steel; Color: Black |
| Power Input |
100–250 V AC, 50/60 Hz |
| Surge Protection |
Network ports: 1 kV; AC lines: 2 kV |
| Connectors |
1 × Power connector, 1 × RJ45 console |
| Size (Dimension Drawing |
See datasheet dimension diagram |
| Weight |
2580 g (5.67 lb |
[/properties]
[specifications]
| Network Function |
Full L2 switching with L3 features including IPv4/IPv6 static route, RIP, OSPF |
| Supported Protocols |
IPv4, IPv6, HTTP/HTTPS, QoS Layer 3 DiffServ, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP/UDP, IGMP v1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q VLAN, LLDP/LLDP-Med, STP/MSTP/RSTP, LACP, RIP v1/v2, OSPF v2/v3 |
| Approvals / Markings |
CSA, UL/cUL, CE, VCCI, RCM, ICES, FCC |
| EMC |
CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2/3-3/6-1/6-2/6-3/6-4; ICES(A; VCCI Class A; FCC Part 15 Class A |
| Safety Standards |
CAN/CSA C22.2 No. 62368-1 ed. 3; IEC/EN/UL 62368-1 ed. 3 |
| Cybersecurity Features |
IEEE 802.1X, HTTPS, TLS 1.2, X.509 PKI, ACLs, port security, IP source guard, storm control, private VLAN, DHCP snooping, ARP inspection, loop protection |
| System Tools |
AXIS Site Designer, AXIS Device Manager, product/accessory selectors |
| Supply Chain |
TAA Compliant |
| Environmental Compliance |
PVC free, BFR/CFR free (JS709; RoHS; REACH; conflict minerals screened |
[/specifications]
[accessories]
| Included in the Box |
Switch, installation guide, 19” ear rack kit, rubber feet (x4, power cord |
| Optional Accessories |
AXIS TD8910 Console Cable; AXIS TD8911 SFP28 Module LC.LR.X; AXIS TD8912 SFP28 Module LC.SR.X |
[/accessories]
High-Performance Fiber Aggregation for Demanding Surveillance Networks

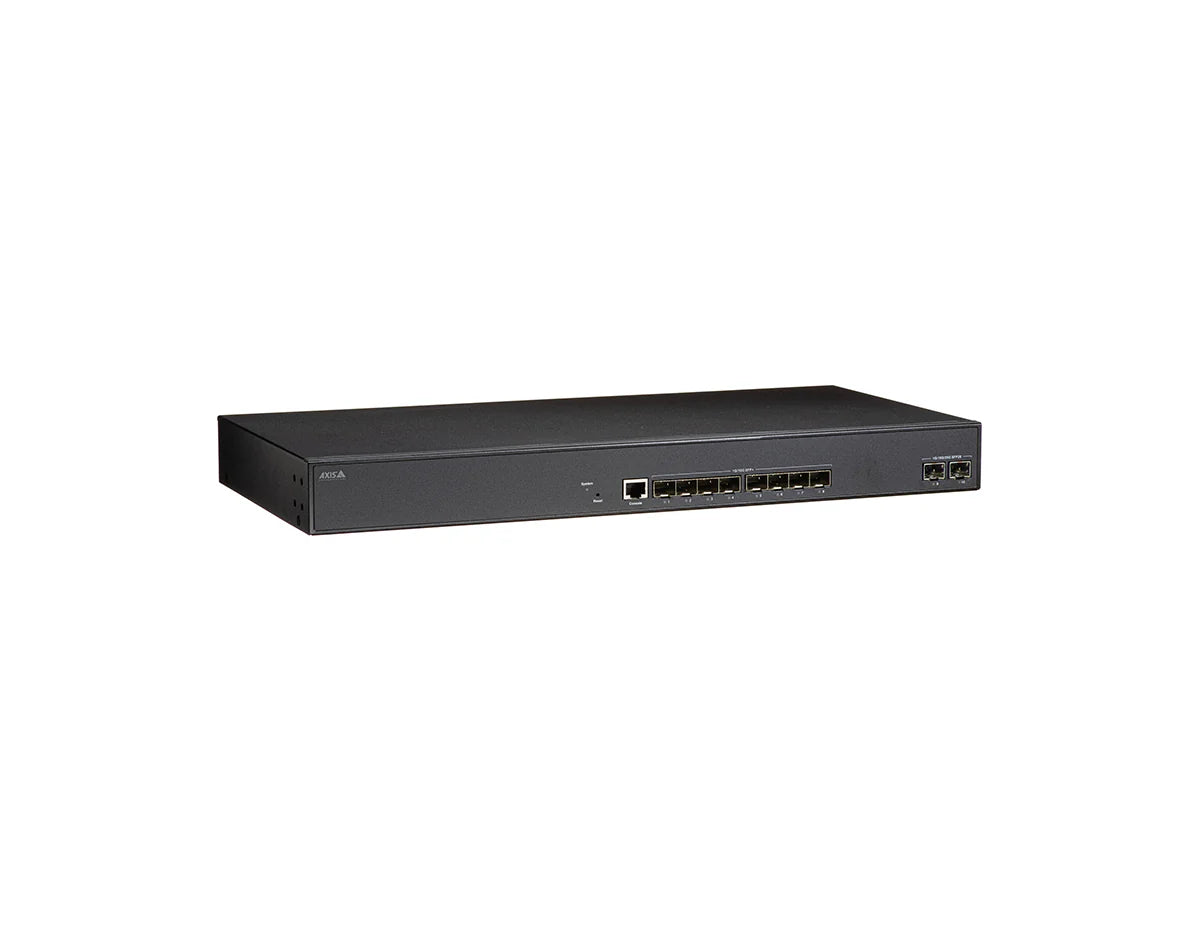

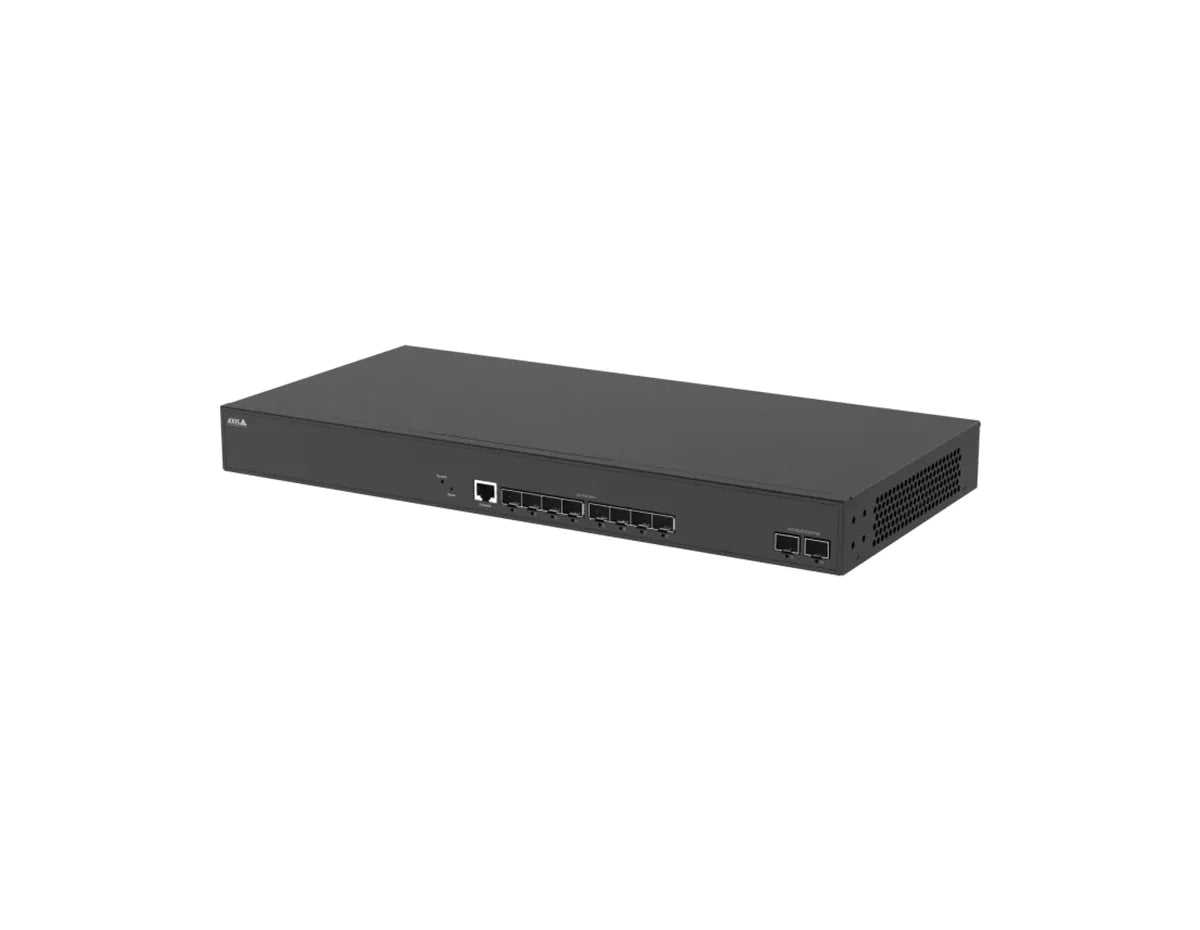

The AXIS D8308 Fiber Aggregation Switch delivers powerful, scalable connectivity designed specifically for multi-site surveillance environments. Acting as a central aggregation point for Axis midspans and cameras, it provides high-speed 10G and 25G fiber performance coupled with advanced Layer 2 and Layer 3 capabilities. With Axis’ intuitive web-based graphical interface, the D8308 simplifies network configuration, offering clear topology views and real-time status updates for all connected devices.
Key Benefits & Features
-
High-capacity fiber aggregation: Equipped with eight 10G SFP+ ports and two 25G SFP28 uplinks to support high-bandwidth traffic and network expansion.
-
Optimized for surveillance: Engineered to handle the rigorous data demands of video surveillance over long-distance fiber connections.
-
Advanced network control: Offers full L2 switching along with L3 features, including IPv4/IPv6 static routing, RIP, and OSPF for versatile network architecture.
-
Secure architecture: Comprehensive security suite featuring IEEE 802.1X, ACLs, HTTPS encryption, TLS 1.2, DHCP snooping, IP source guard, and port security.
-
Easy installation and management: Features a unique web graphic user interface that provides a visual topology of the system for effortless maintenance and setup.
Ideal Use Cases
- Large-scale surveillance deployments requiring central fiber aggregation
- Campus environments connecting distributed Axis devices
- Industrial or municipal security systems utilizing long-range fiber
- Networks requiring secure, TAA-compliant hardware
- System expansions needing seamless integration with existing Axis infrastructure
Technical Specifications
-
Fiber Ports: 8× SFP+ 10GBASE-LR/SR
-
Uplinks: 2× SFP28 25GBASE-LR/SR
-
Switching Capacity: 260 Gbps
-
Forwarding Rate: 193.44 Mpps
-
MAC Table Size: 32 K
-
Jumbo Frames: Up to 10240 bytes
-
Network Protocols: IPv4/IPv6, OSPF, RIP, VLAN, STP/MSTP/RSTP, LACP, LLDP, QoS
-
Security: 802.1X, ACLs, DHCP snooping, ARP inspection, port security, TLS 1.2
-
Operating Temperature: 0 °C to 50 °C
-
Power Input: 100–250 V AC, 50/60 Hz
-
Casing: Steel, Black
Upgrade Your Network Performance Today
Enhance your surveillance infrastructure with powerful, secure, and scalable fiber aggregation—order the AXIS D8308 today.
