[shortdesc]All-in-one rack-mounted appliance with integrated PoE switch, 24 Axis Camera Station licenses tied to hardware, Intel® i3 CPU, RAID-supported storage, and secure Windows 11 IoT OS.[/shortdesc]
[properties]
| Model |
AXIS S2224 Mk II Rack Appliance (02810-004
|
| Product Type |
1U rack network video recorder (NVR with integrated PoE switch |
| Processor |
Intel® Core™ i3 |
| Memory |
16 GB DDR5 (2×8 GB |
| Operating System |
Microsoft® Windows® 11 IoT Enterprise LTSC 2024 |
| Storage Capacity |
12 TB out-of-the-box (2×6 TB, Surveillance-Class HDD |
| HDD Bays |
Surveillance Class HDD
Total HDD slot: 4
Free HDD slot: 2 |
| RAID Support |
Levels 0, 1, 10 |
| Switch Ports |
24× PoE RJ45 (1 Gbps, IEEE 802.3at Class 4 |
| PoE Budget |
260 W total power budget |
| Power Input |
100–240 V AC, 6.5–2.5 A, 50/60 Hz |
| Operating Temperature |
0 to 40 °C (32 to 104 °F |
| Storage Temperature |
-40 to 65 °C (-40 to 149 °F |
| Humidity |
10–90% RH (non-condensing |
| Dimensions |
476 × 440 × 45 mm (18.7 × 17.3 × 1.8 in, 1U rack |
| Weight |
11 kg (24.3 lb |
| Certifications |
UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM |
| Cybersecurity Hardware |
TPM 2.0 – FIPS 140-2 Level 2 certified |
[/properties]
[specifications]
| Licensing |
24 AXIS Camera Station Pro Core Device NVR licenses included and tied to the hardware |
| Scalability |
Qualified for up to 24 video channels and 48 doors (up to 1,000 doors with access control only with up to 384 Mbps recording |
| System Expansion |
Can expand using AXIS S30 Recorder Series |

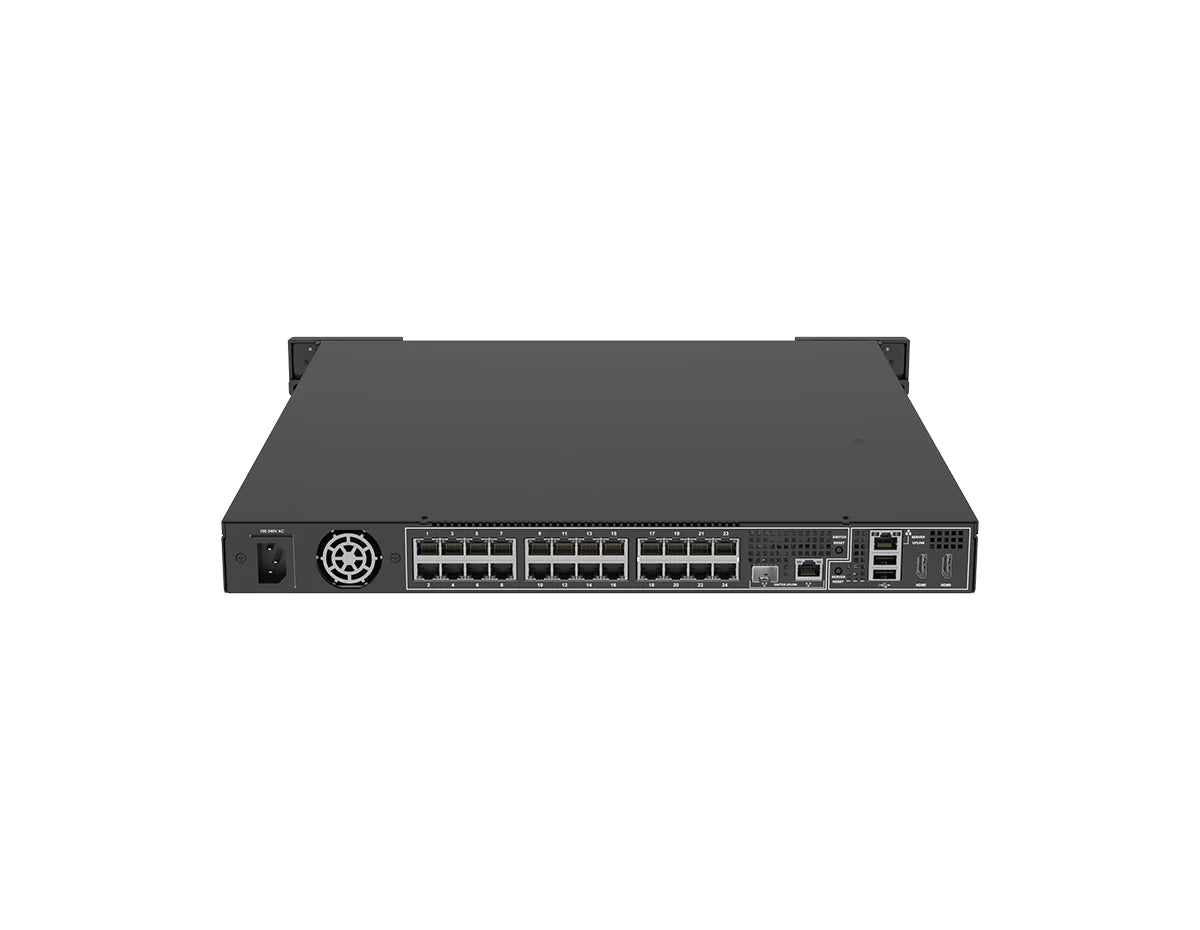

| Network Ports – Rear Switch |
24× PoE RJ45 1 Gbps, 1× SFP 1 Gbps, 1× RJ45 1 Gbps |
| Network Ports – Server |
1× RJ45 1 Gbps |
| Peripheral Connections |

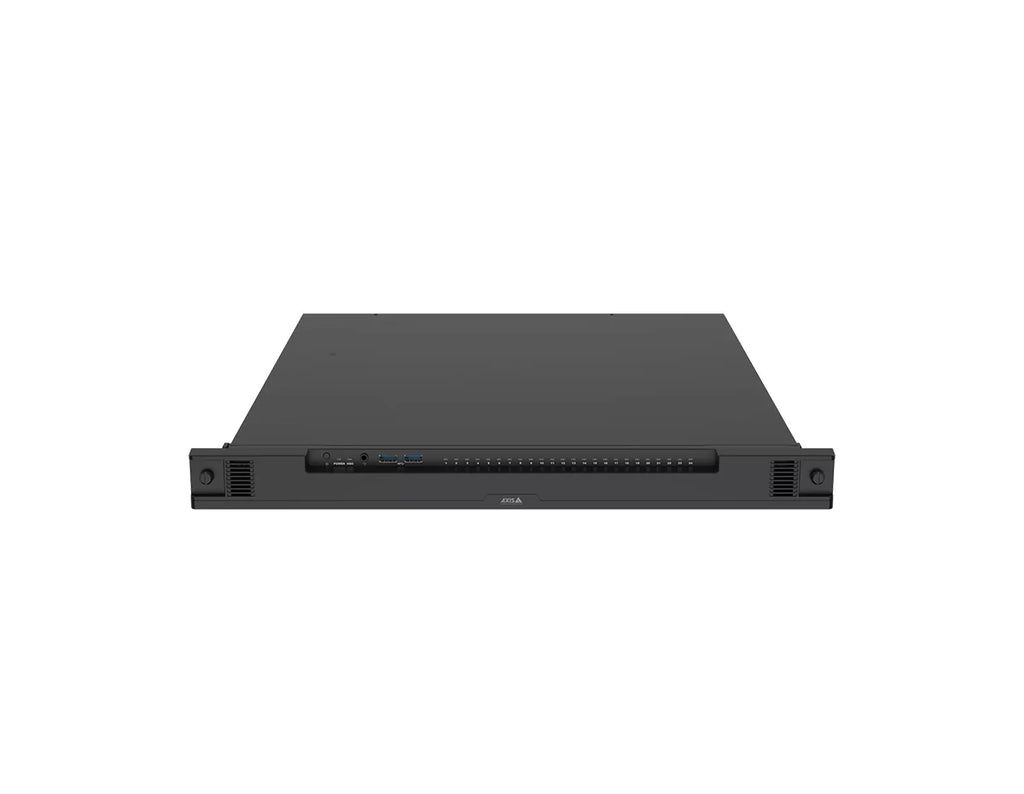

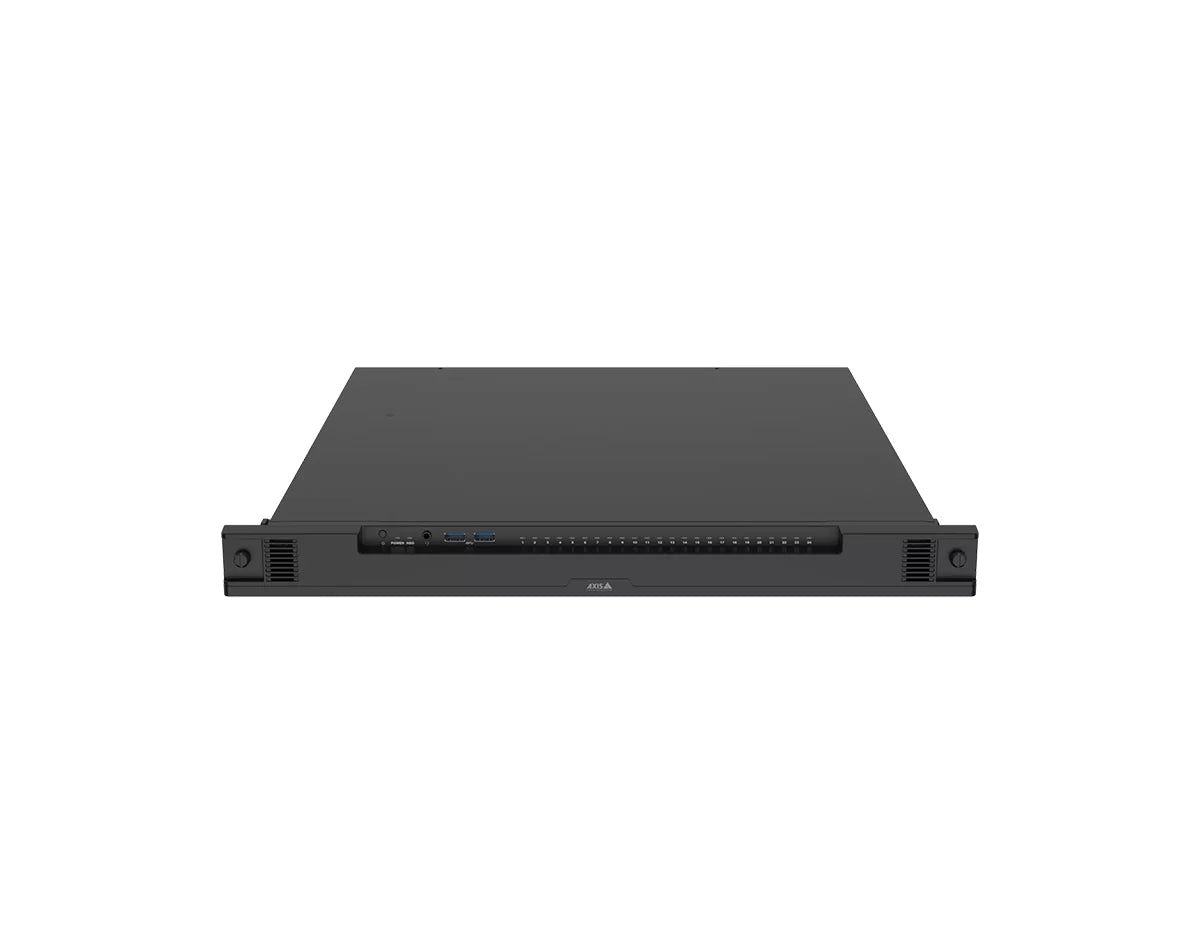

Front: 2× USB 3.2, 1× universal audio jack; Rear: 2× USB 2.0, 2× HDMI 2.1 |
| Graphics |
Intel® UHD Graphics |
| Video Streaming – Windows Client |
Up to one 8K @ 20 fps, or 4K @ 30 fps, with split-view limitations as specified in datasheet |
| Video Streaming – Web Client |
Up to one 8K @ 30 fps or 4K @ 30 fps, with split-view configurations |
| Power Consumption |
Typical: 110 W; Maximum: 130 W (excluding PoE load |
| Operating System Drive |
256 GB SSD (with OS recovery enabled |
| Security Features |
FIPS-certified TPM, secure boot, signed switch firmware, SBOM transparency |
| Supply Chain Compliance |
TAA compliant |
[/specifications]
[accesories]
| Included Accessories |
Rack rails, power cord |
| Optional Accessories |
Axis 4 TB and 6 TB surveillance-grade HDDs, Axis desktop terminals, Axis Ethernet surge protector |
[/accesories]
The AXIS S2224 Mk II Rack Appliance is a fully integrated all-in-one NVR built for professional-scale video surveillance. With 24 dedicated AXIS Camera Station licenses, PoE switch power distribution, 12 TB surveillance-grade storage, and RAID options, it delivers reliable retention and high-performance multi-stream handling. Designed for enterprise environments, this 1U chassis integrates cleanly into rack cabinets and supports scalable multi-site deployments.
With Windows 11 IoT Enterprise LTSC, a TPM-secured OS, secure boot, and signed firmware, this platform provides enterprise-class cybersecurity transparency and device integrity. The hardware configuration is optimized for simultaneous multi-monitor setups, remote and local client streaming, and large-scale continuous recording operations.
Professional-grade secure NVR with integrated PoE power and expansion capability
- Integrated 24-port PoE switch enables direct camera powering without external switches.
- Supports up to 384 Mbps total recording throughput for high-resolution systems.
- RAID-supported storage functionality ensures service continuity and data safety.
- FIPS 140-2 Level 2 TPM and secure boot prevent unauthorized firmware or OS manipulation.
- Validated for multi-monitor and 8K/4K live view performance.
- Qualified for up to 24 video channels and 48 doors simultaneously.
Ideal Use Cases
- Large multi-camera enterprise surveillance deployments
- Government or critical-infrastructure security environments
- Retail chains and warehouse monitoring systems
- Schools, hospitals, universities, and facility campuses
- Video-intensive monitoring with multi-monitor operator stations
Technical Specifications Summary
-
CPU: Intel® Core™ i3
-
RAM: 16 GB DDR5
-
Storage: 12 TB surveillance HDD (2×6 TB, 4 drive bays total
-
RAID: 0, 1, 10 supported
-
PoE Switch: 24 ports, 260 W total budget
-
Operating Temperature: 0–40 °C (32–104 °F
-
Dimensions: 476 × 440 × 45 mm (18.7 × 17.3 × 1.8 in
-
Weight: 11 kg (24.3 lb
-
Security: TPM 2.0, secure boot, signed firmware
Upgrade Your Operations
Deploy enterprise-class recording performance with industry-leading cybersecurity and PoE integration.
