[shortdesc]
- Managed, Rack-mountable, 8 x 1G PoE+ ports, 2 x 1G copper/SFP combo Uplinks, PoE+ (60W), Layer 3
[/shortdesc]
[properties]
| Properties |
CBS250-8P-E-2G |
| Description |
— 8 10/100/1000 ports PoE+ ports with 60W power budget
— 2 Gigabit copper/SFP combo ports |
| Product Family |
CBS 250 Series |
| Product Type |
Small Business Switch |
| Number of Ports |
10 |
| RJ-45 ports |
8 Gigabit Ethernet |
| Downlinks total 10/100/1000 ports |
8 |
| Power dedicated to PoE |
60W |
| Number of ports that support PoE |
8 |
| Power |
100 to 240V 50 to 60 Hz, external |
| Fans |
Fanless |
| Unit dimensions in. (W x D x H) |
10.56 x 7.28 x 1.73 |
| Rack-mountable |
Yes |
[/properties]
[specifications]
| Specifications |
CBS250-8P-E-2G |
| Capacity in millions of packets |
14.88 mpps |
| Switching capacity |
20.0 Gbps |
| Flash Memory |
16 MB |
| DRAM |
512 MB |
| CPU |
400 MHz ARM |
| CPU Memory |
128 MB |
| Packet Buffer |
1.5 MB |
| MAC addresses |
8K |
| Head-of-line (HOL) blocking |
HOL blocking prevention |
| Quality of Service (QoS) |
802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection |
Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics |
Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface |
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Operating Temperature |
23° to 122°F (-5° to 50°C) |
| Operating humidity |
10% to 90%, relative, noncondensing |
| Compliance/certifications |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
[/specifications]
[accesories]
| Hardware |
|
| LEDs |
Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE. |
| Cabling type |
Category 5e or better |
| Mounting options |
Desktop, wall-mount or rack mount |
| Physical security lock |
Kensington lock slot |
| Accessories |
There is no additional accessories other than the power supply and the mounting kit which are included with the device package . |
| Supported SFP modules |
SKU |
| MGBSX1 |
Multimode fiber |
| MGBLX1 |
Single-mode fiber |
| MGBLH1 |
Single-mode fiber |
| MGBT1 |
UTP cat 5e |
| Package contents |
|
— Cisco Business 250 Series Smart Switch
— Power cord (power adapter for 8-port SKUs)
— Quick start guide
— Mounting kit |
| Minimum requirements |
|
| Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet |
| Cat5e or better Ethernet cable |
|
| Network interface card for each computer |
[/accesories]

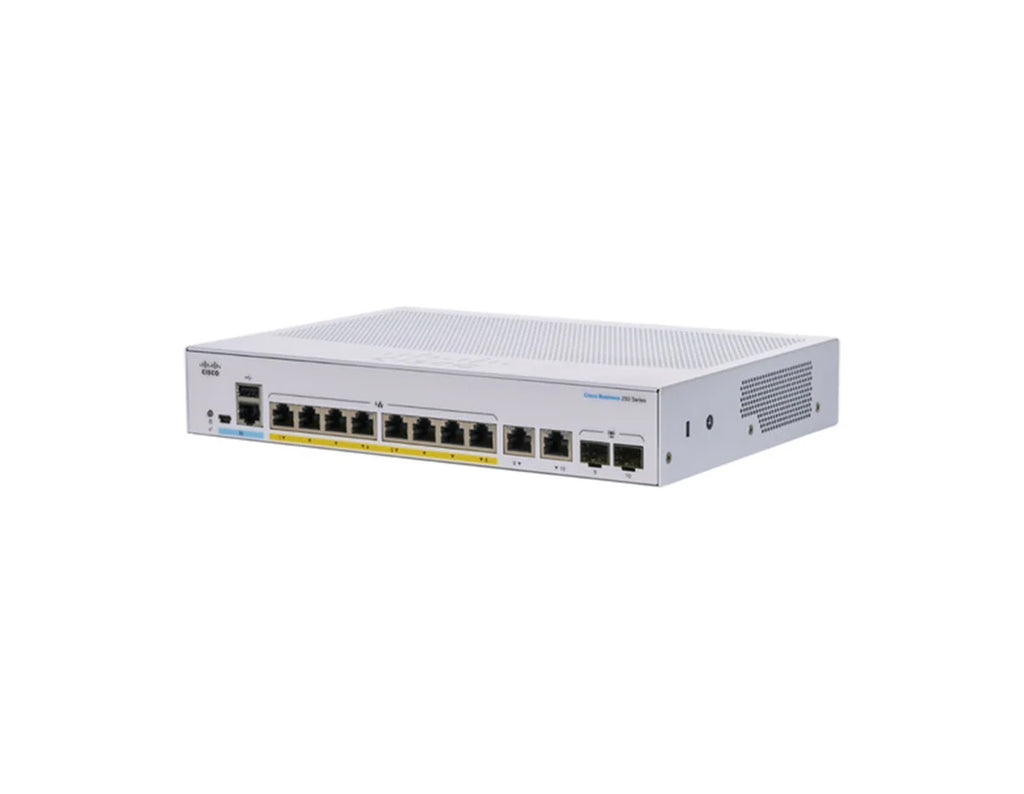

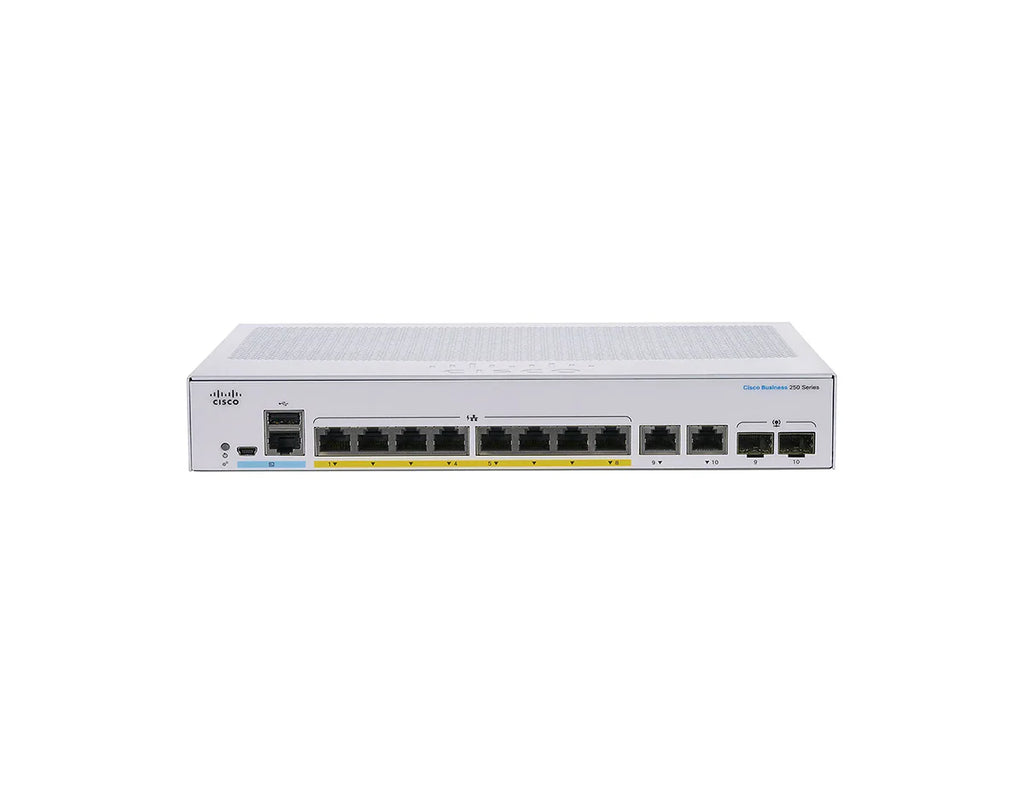

Cisco CBS250-8P-E-2G Switch
The Cisco CBS250-8P-E-2G Switch is an ideal solution for small businesses looking to deploy Power over Ethernet (PoE) devices with minimal space requirements. Equipped with 8 Gigabit Ethernet PoE+ ports and a total PoE budget of 60W, this switch powers devices such as IP phones, wireless access points, and cameras without the need for separate power sources. It also includes 2 Gigabit SFP uplink ports for flexible and fast network expansion.
Key Features:
-
8 x Gigabit Ethernet PoE+ Ports: Provides up to 30W per port, ideal for powering PoE-enabled devices.
-
2 x SFP Uplink Ports: Supports high-speed uplinks to ensure smooth data transfer and network expansion.
-
Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption without sacrificing performance.
-
Advanced Security: Includes 802.1X authentication, ACLs, and DoS protection to safeguard your network.
-
Compact Design: Fanless operation and compact size make it ideal for deployment in noise-sensitive environments.
Technical Overview:
-
Recommended for: Small businesses, retail environments, and remote offices.
-
Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
-
Uplink Modules: 2 x Gigabit SFP ports.
-
Switching Capacity: 20 Gbps.
-
Forwarding Rate: 14.88 Mpps.
-
Energy Efficiency: Complies with IEEE 802.3az standards for reduced energy consumption.
You can check the related tab for the CBS250-8P-E-2G datasheet.
