[shortdesc] 6MP resolution, 360° panoramic view, IR up to 20 m, IK10/IP66, SoC:ARTPEC-8, PoE powered (IEEE 802.3af, Class 3 [/shortdesc]
[properties]
| Model |
AXIS M4317-PLR |
| Product Type |
6 MP Panoramic Fisheye Network Camera |
| Image Sensor |
1/1.8" Progressive Scan RGB CMOS |
| Lens |
1.1 mm, F2.2, Fixed Iris, Fixed Focus, IR-Corrected |
| Field of View |
182° Horizontal, 182° Vertical |
| Minimum Illumination |
Color: 0.16 lux • B/W: 0.03 lux • 0 lux with IR |
| Infrared Illumination |
850 nm IR LEDs, up to 20 m (65.6 ft |
| Day/Night |
Automatic IR-Cut Filter |
| Shutter Speed |
1/33500 s to 0.2 s |
| WDR |
Forensic WDR up to 120 dB |
| Video Compression |
H.264, H.265, Motion JPEG |
| Max Resolution / FPS |
2160 × 2160 up to 50/60 fps |
| Network Protocols |
IPv4/IPv6, HTTPS, TLS 1.2/1.3, MQTT, SNMP v1/v2c/v3, RTSP, RTP, SRTP, SFTP, DHCP, LLDP, IEEE 802.1X |
| Storage Options |
microSD/microSDHC/microSDXC, NAS |
| Analytics |
AXIS Object Analytics, People Counter, Image Health Analytics, Metadata |
| Onboard AI |
Deep Learning Processing Unit (DLPU |
| Power |
PoE IEEE 802.3af/at Class 3 (5.7 W typical / 12.95 W max |
| Operating Conditions |
-40 °C to 50 °C (Humidity 10–100% RH condensing |
| Storage Conditions |
-40 °C to 65 °C (5–95% RH non-condensing |
| Ingress & Impact Rating |
IP66, IK10, NEMA 4X |
| Dimensions |
Ø149 mm × 70 mm |
| Weight |
860 g |
| Certifications |
CE, UL, FCC, IEC/EN 62368-1, TAA, ONVIF G/M/S/T |
[/properties]
[specifications]
| Video Resolutions |
Overview: 2160×2160 to 160×160
Panorama: 2560×1440 to 192×72
Double Panorama: 2560×1920 to 384×288
Quad View: 2560×1920 to 384×288 |
| Frame Rates |
360° overview: up to 50/60 fps
With WDR + dewarping: up to 25/30 fps |
| Image Settings |
Saturation, Contrast, Brightness, Sharpness, Tone Mapping, Local Contrast, Privacy Masks |
| Noise Reduction |
2D + 3D Noise Reduction |
| Digital PTZ |
Supports PTZ for panorama, corner, corridor, quad views |
| Audio Support |
Two-way audio via Portcast Technology |
| I/O |
1 Alarm Input / 1 Alarm Output (12 VDC, 25 mA |
| Memory |
2048 MB RAM / 8192 MB Flash |
| SoC |
ARTPEC-8 |
| Cybersecurity Features |
Axis Edge Vault, Secure Boot, Signed OS, AES-XTS 256-bit SD Encryption, OAuth 2.0 |
| Event Triggers |
Device status, digital input, motion, tampering, storage warnings, scheduled events |
| Event Actions |
Recordings, Notifications, SNMP traps, MQTT publish, Overlay text, IR control |
| IR Range |
Up to 20 m (65.6 ft |
| Startup Temperature |
-30 °C |
| Supported Languages |
EN, DE, FR, ES, IT, RU, CN, JP, KR, PT, PL, TR + others |
[/specifications]
[accesories]
| Included in the Box |
Camera
Terminal Block Connector
Connector Guard
Cable Gaskets
Cable Hole Lid
Owner Authentication Key
Installation Guide
|
| Optional Mounting Accessories |
AXIS T94T02D Pendant Kit
AXIS TM3204 Recessed Mount
AXIS TM3206 Recessed Mount
AXIS Mounts & Cabinets
|
| Optional Installation Tools |
AXIS T8415 Wireless Installation Tool |
| Optional Cosmetic Accessories |
AXIS TM3814 Skin Cover (Black |
| Storage Accessories |
AXIS Surveillance Cards |
[/accesories]

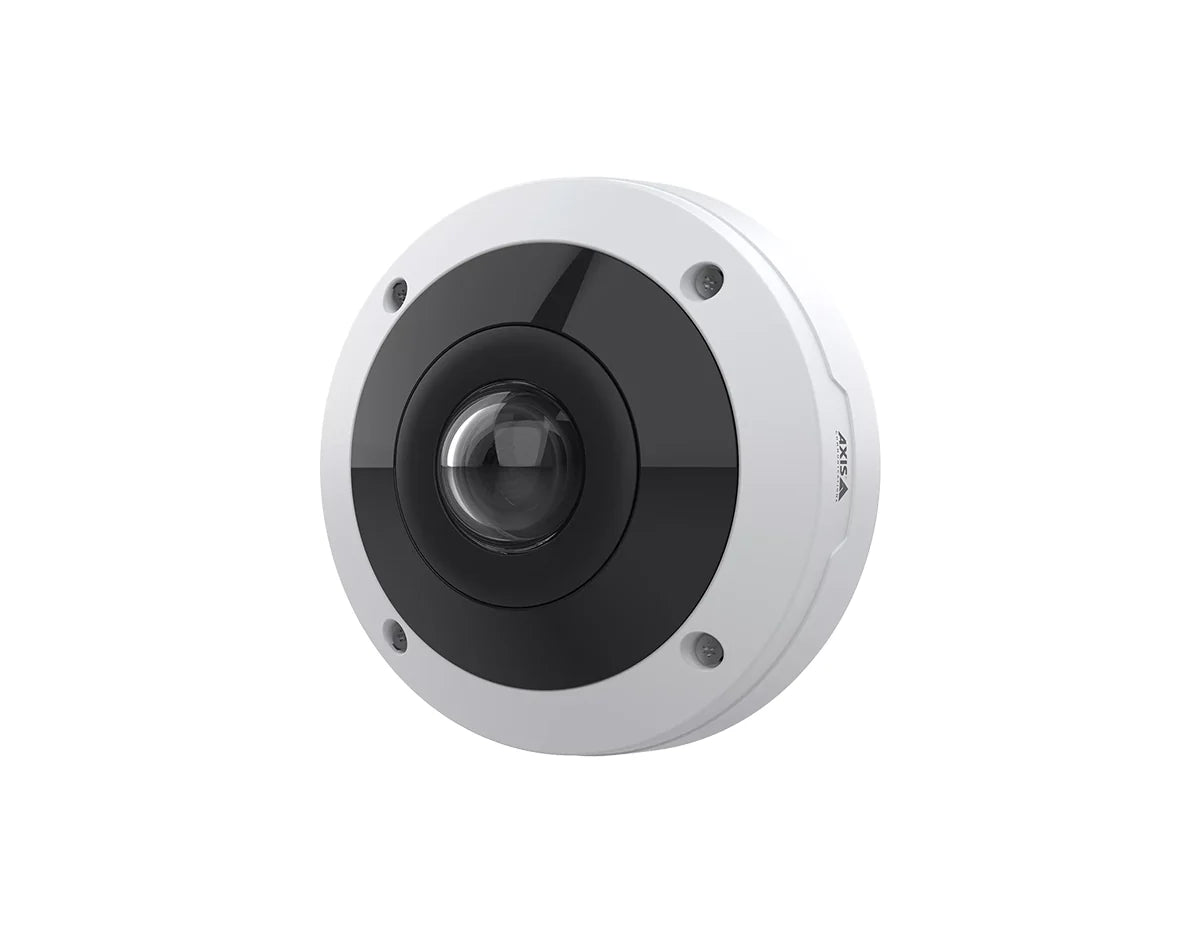

Rugged 360° Protection with Advanced AI Analytics
The Axis 02833-001 Panoramic Camera M4317-PLR 6MP delivers complete 180° and 360° situational coverage for buses and high-vibration environments. Built on the ARTPEC-8 platform with deep learning analytics and OptimizedIR, it provides sharp, reflection-free imaging in any lighting condition. Designed to exceed industry transportation requirements, it ensures dependable security where durability and accuracy matter most.
Key Benefits & Features
-
6MP panoramic imaging: Capture crisp 360° or 180° overviews with up to 2160×2160 resolution for maximum scene awareness.
-
OptimizedIR illumination: Individually controlled IR LEDs provide up to 20 m visibility in complete darkness without reflections.
-
ARTPEC-8 with DLPU: Deep learning–powered analytics, including people and vehicle detection, for precise real-time insights.
-
Transit-grade durability: IP66, IK10, and NEMA 4X ratings protect against shock, vibration, dust, and moisture.
-
Flexible deployment: Digital roll, multiple dewarped views, and PoE+ support simplify installation and integration.
Ideal Use Cases
- Public transportation surveillance (buses, shuttles, and rail vehicles
- 360° coverage in entrances, corridors, and compact interior spaces
- Rugged industrial or outdoor monitoring with harsh conditions
- Smart analytics applications requiring deep learning at the edge
- Fleet, depot, or logistic-focused security deployments
Technical Specifications
-
Resolution: Up to 2160×2160 at 50/60 fps
-
Sensor: 1/1.8" RGB CMOS, 6MP
-
Lens: 1.1 mm fixed focal, F2.2
-
Field of View: 182° horizontal / 182° vertical
-
IR Range: Up to 20 m with 850 nm LEDs
-
Minimum Illumination: 0.16 lux color, 0.03 lux B/W, 0 lux with IR
-
Analytics: AXIS Object Analytics, People/Vehicle detection
-
WDR: Forensic WDR up to 120 dB
-
Network Protocols: IPv4/IPv6, HTTPS, ONVIF G/M/S/T
-
Power: PoE+ (802.3af/at, 5.7–12.95 W
-
Durability: IK10, IP66, NEMA 4X, -40°C to 50°C operating
-
Storage: microSD/microSDHC/microSDXC & NAS
