[shortdesc]2 MP outdoor-ready PTZ camera with a 1/2" sensor, 31x optical zoom, Forensic WDR, Lightfinder, OptimizedIR up to 300 m, ARTPEC-9 SoC with deep-learning analytics, and rugged IP66/IP67/IK10/NEMA 4X protection for demanding surveillance environments.[/shortdesc]
[properties]
| Model |

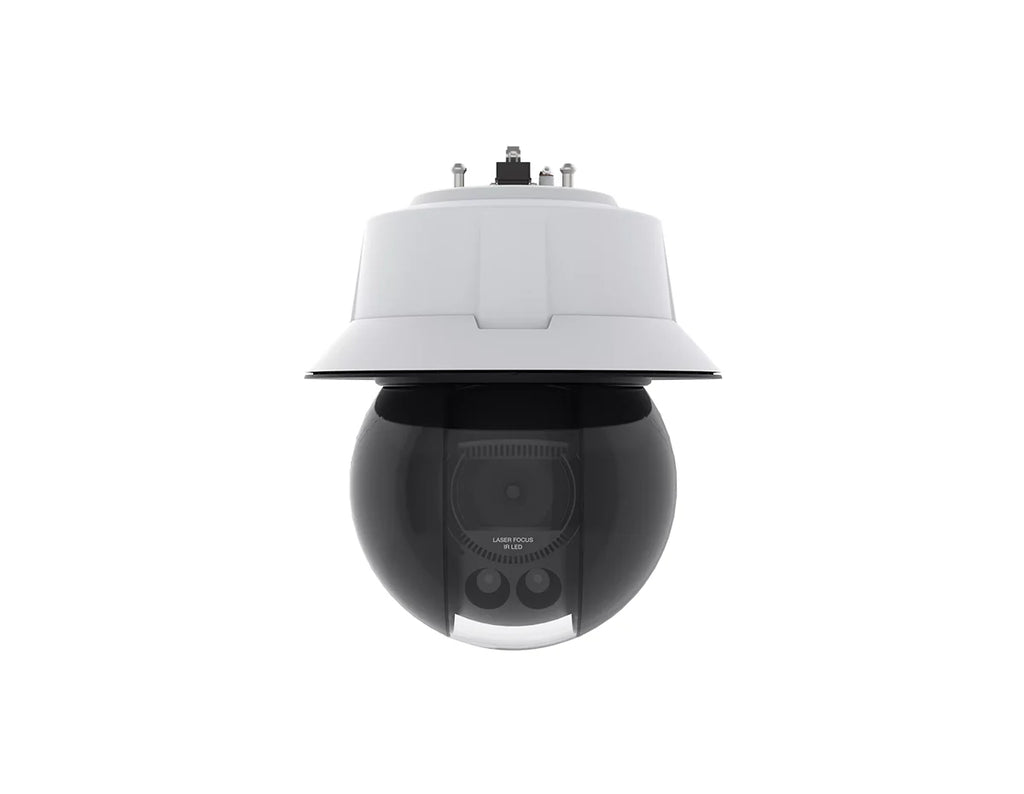

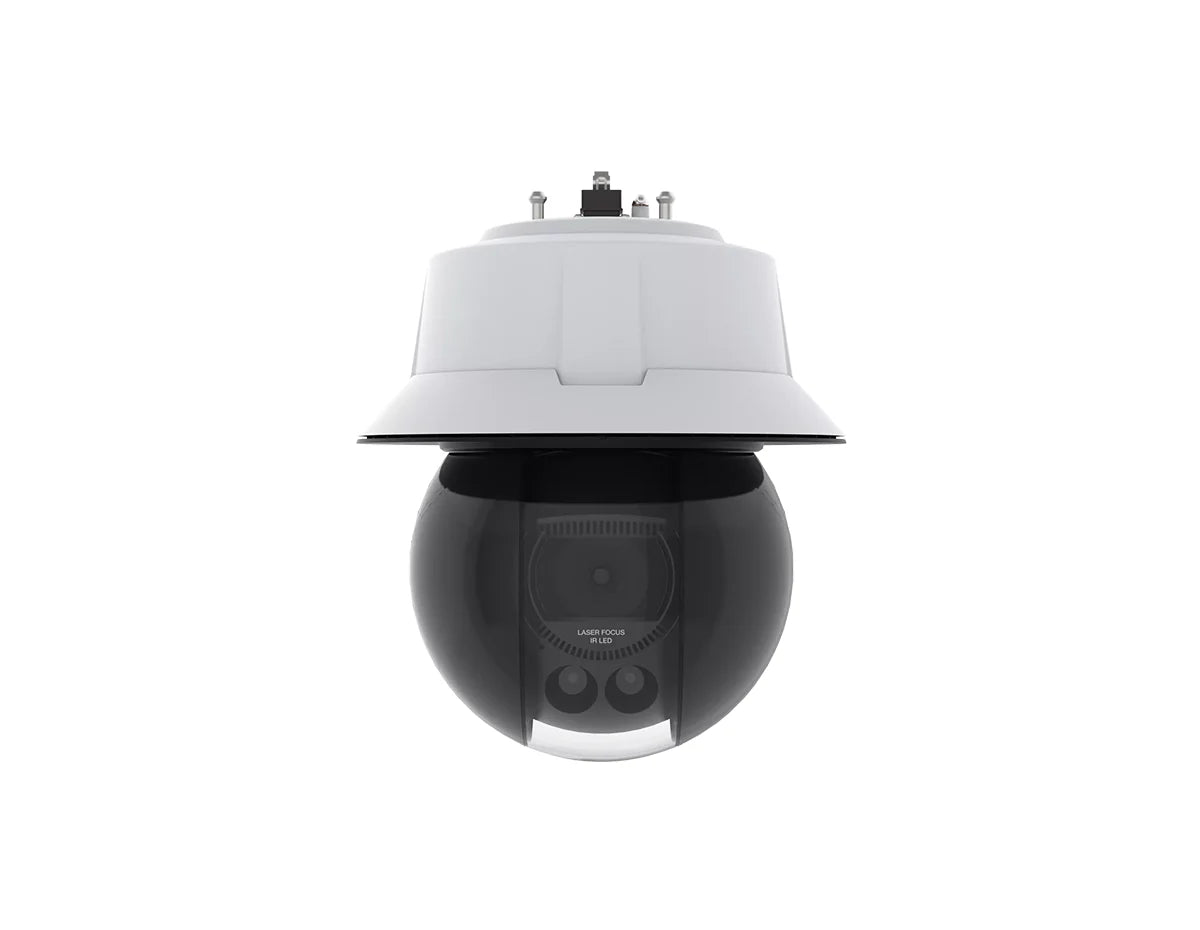

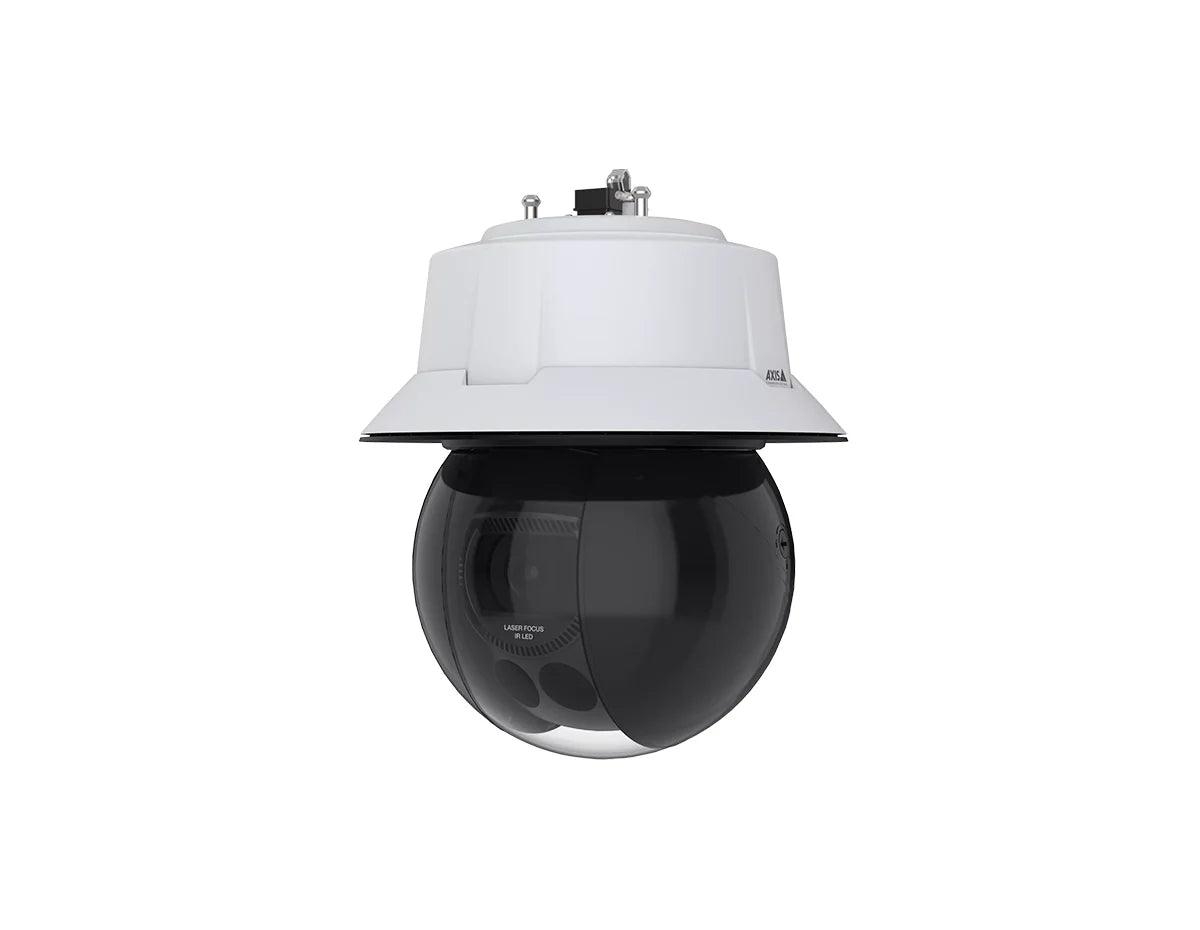

AXIS Q6355-LE PTZ Camera (02976-004 |
| Product Type |
PTZ Camera |
| Image Sensor |
1/2" progressive scan CMOS |
| Optical Zoom |
31x optical zoom |
| Minimum Illumination |
Color: 0.06 lux at 30 IRE, F1.36; B/W: 0.001 lux at 30 IRE, F1.36, 0 lux with IR |
| Shutter Speed |
1/111000 s to 1/2 s |
| Video Resolution |
1920×1080 (HDTV 1080p to 320×180 |
| Frame Rate |
Up to 50/60 fps (50/60 Hz in all resolutions |
| IR Range |
OptimizedIR, 300 m (984 ft or more depending on scene |
| Operating Conditions |
Full power: -50 °C to 55 °C (-58 °F to 131 °F;
Low power: -10 °C to 55 °C (14 °F to 131 °F;
Arctic startup down to -40 °C (-40 °F;
Maximum temperature (NEMA TS2: 74 °C (165 °F;
Humidity 10–100% RH |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F; Humidity 5-95% RH (non-condensing |
| Environmental Protection |
IP66, IP67, IK10, NEMA 4X, NEMA TS2 |
| Dimensions |
Height: 261 mm; Ø239 mm (with shield / Ø192 mm (without shield |
| Weight |
4400 g (9.7 lb |
| Power |
IEEE 802.3bt Type 3 Class 6; typical 13.7 W (no IR, max 51 W |
| Storage |
SD/SDHC/SDXC support; encrypted SD card recording |
| Casing |
Repaintable metal casing (aluminum, hard coated
Polycarbonate (PC clear dome with Sharpdome
technology |
[/properties]
[specifications]
| Lens |
6.91–214.64 mm; HFOV 60.6°–2.0°; VFOV 36.5°–1.1°; laser focus; autofocus; P-iris |
| Pan/Tilt |
Pan: 360° endless, 0.05°–550°/s; Tilt: +20° to −90°, 0.05°–500°/s |
| Zoom |
31x optical, 12x digital, total 372x; quick-zoom; speed dry; 300 presets; guard tours |
| Video Compression |
AV1, H.264 Baseline/Main/High, H.265 Main, Motion JPEG |
| Streaming |
Multiple streams; Zipstream for AV1/H.264/H.265; VBR/ABR/MBR; low-latency mode |
| Image Features |
Forensic WDR up to 120 dB; EIS; defogging; local contrast; 100 polygon privacy masks |
| Audio |
Input/output via Portcast technology |
| Network Protocols |
IPv4/IPv6, HTTPS, HTTP/2, TLS, FTP/SFTP, SMB, SMTP, UPnP, SNMP, RTP/RTSP/SRTP, DHCP, MQTT, LLDP/CDP, NTCIP, secure syslog |
| System Integration |
Open API; VAPIX; ACAP; One-Click Cloud Connection; ONVIF Profiles G/M/S/T |
| Analytics |
AXIS Object Analytics; human/vehicle classification; line crossing; time-in-area; tailgating detection; PPE monitoring (BETA; motion-based triggers |
| Scene Metadata |
Humans, faces, vehicles, license plates; attributes: colors, confidence, position |
| Cybersecurity |
Signed OS; secure boot; encrypted filesystem; Axis Edge Vault; secure keystore (CC EAL6+; AES-XTS SD encryption |
| Approvals |
EMC: EN 55032 A, FCC A, EN 61000-series;
Safety: IEC/EN/UL 62368-1;
Environment: IK10, IP66/IP67, NEMA 4X, NEMA TS2, ISO 21207, ISO 12944-6 C5 |
| IR Illumination |
OptimizedIR, 850 nm LEDs, 300+ m reach |
[/specifications]
[accesories]
| Included |
Installation guide; Windows decoder license; 90 W midspan; IP66 connector; repaint template; paint paper |
| Optional Accessories |
AXIS TQ6808-E Clear Dome; AXIS TQ6815-E Smoked Dome; AXIS TU8003 90 W Midspan; AXIS T91/T94 Mounts; AXIS Surveillance Cards |
[/accesories]
High-Performance 2 MP PTZ with AI Analytics and Extreme Low-Light Clarity
The AXIS Q6355-LE delivers outstanding image quality with its 1/2" sensor, 31x optical zoom, Forensic WDR, and Lightfinder. Its OptimizedIR enables visibility up to 300 m, ensuring reliable performance even in complete darkness.
Powered by the ARTPEC-9 chipset with a dedicated deep-learning processing unit, it supports advanced analytics including AXIS Object Analytics and Scene Metadata. The hardened housing—IP66/IP67, IK10, and NEMA 4X—ensures dependable performance in harsh outdoor conditions.
Key Benefits
- High sensitivity 1/2” sensor ensures superior clarity in low-light scenes.
- 31x optical zoom and 372x total zoom for long-distance identification.
- OptimizedIR provides powerful illumination extending beyond 300 m.
- AI-powered analytics enable accurate detection, classification, and automation.
- Rugged weather- and impact-resistant housing for demanding installations.
- Zipstream with AV1/H.264/H.265 significantly reduces bandwidth and storage use.
- Axis Edge Vault and advanced encryption strengthen device security.
Ideal Use Cases
- City surveillance and traffic monitoring in wide outdoor areas.
- Critical infrastructure protection with long-range nighttime visibility.
- Perimeter security for industrial facilities and transportation hubs.
- High-security locations requiring automated analytics and event detection.
Technical Specifications Summary
-
Image sensor: 1/2” progressive scan CMOS
-
Lens: 6.91–214.64 mm; HFOV 60.6°–2.0°
-
Video: 1080p up to 60 fps; Forensic WDR; Lightfinder; EIS
-
IR: OptimizedIR, 300 m reach
-
Compression: AV1, H.264, H.265, Motion JPEG
-
PTZ: 360° endless pan; +20° to −90° tilt; 31x optical zoom
-
Protection: IP66/IP67, IK10, NEMA 4X
-
Power: IEEE 802.3bt Type 3 Class 6
Upgrade Your Operations
Enhance wide-area surveillance with powerful PTZ performance and next-generation analytics.
