[shortdesc]
- Managed, Fanless, 8 x 1G ports, 2 x 1G SFP + 2 x 1G Copper Uplinks, No PoE (Data Only), Layer 3
[/shortdesc]
[properties]
| Properties |
WS-C3560CX-8TC-S |
| Description |
3560-CX Switch 8 GE, uplinks: 2 x 1G SFP and 2 x 1G copper, IP Base
|
| Product Family |
Catalyst 3560 |
| Product Type |
Ethernet Switch |
| Ethernet Ports |
8 x 10/100/1000 Gigabit Ethernet |
| PoE Output Ports |
NA |
| Available PoE Power |
- |
| Uplinks |
2 x 1G copper plus 2 x 1G SFP |
| Default Software |
IP Base (IP Services with RTU License) |
| AC/DC input voltage and current |
100-240 VAC, 0.5- 0.2A |
| Dimensions in. |
1.75 x 10.6 x 8.4 |
[/properties][specifications]
| Specifications |
WS-C3560CX-8TC-S |
| DRAM |
512 MB |
| Flash Memory |
128 MB |
| Forwarding Rate |
17.9 mpps |
| Switching Bandwith |
32 Gbps |
| Max VLANs |
1023 |
| VLAN IDs |
4000 |
| Jumbo frames |
9198 bytes |
| MTBF |
756,26 |
Operating Temperature
Up to 5,000 ft (1500 m) |
-5 to 45 degree C |
Operating Temperature
Up to 10,000 ft (3000 m) |
-5 to 45 degree C |
| Safety |
● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
|
| EMC: emissions |
● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
|
| Environmental |
Reduction of Hazardous Substances (RoHS) 6 |
| Telco |
Common Language Equipment Identifier (CLEI) code
|
| Telnet - SSH |
Yes |
| TACACS+ |
Yes |
[/specifications][accesories]
| PWR-CLP= |
Power clip for the 3560-CX and 2960-CX compact switches |
| CMPCT-CBLE-GRD= |
Cable guard for the 3560-CX and 2960-CX compact switches |
| CMPCT-MGNT-TRAY = |
Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches |
| CMPCT-DIN-MNT= |
DIN Rail Mount for 3560-CX and 2960-CX compact switches |
| RCKMNT-19-CMPCT= |
19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches |
| RCKMNT-23-CMPCT= |
23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches |
[/accesories]

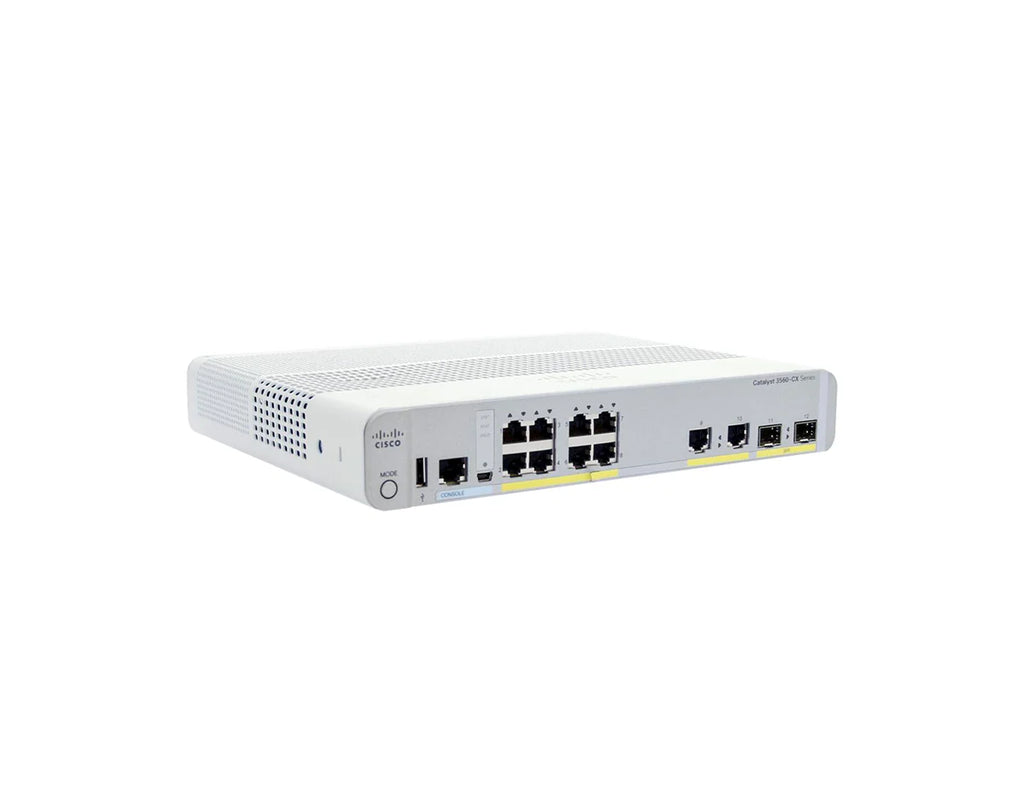

Cisco Catalyst WS-C3560CX-8TC-S Switch
The Cisco Catalyst WS-C3560CX-8TC-S Switch is a compact and powerful solution designed for modern business environments that need reliable and high-speed connectivity. This fanless switch features 8 Gigabit Ethernet ports and 2 SFP uplinks, providing flexible deployment options for small to medium-sized networks. Its compact design and quiet operation make it ideal for office and branch locations.
Key Features:
-
8 x Gigabit Ethernet Ports: Provides fast and reliable connections for multiple devices.
-
2 SFP Uplinks: Offers high-speed fiber connections, ensuring scalable network expansion.
-
Fanless Design: Silent operation suitable for office and noise-sensitive environments.
-
Energy Efficient: Complies with IEEE 802.3az, reducing energy consumption while maintaining performance.
-
Layer 3 IP Base: Supports advanced Layer 3 features like OSPF, EIGRP, and VRF-Lite.
Technical Overview:
-
Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
-
Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet ports.
-
Uplink Modules: 2 x 1G SFP uplinks.
-
Switching Capacity: 32 Gbps.
-
Forwarding Rate: 17.9 Mpps.
-
Layer 3 Features: OSPF, EIGRP, VRF-Lite for advanced routing.
-
Management: Web UI, CLI, SNMP, and Cisco DNA Center.
-
Licensing: IP Base.
-
Energy Efficiency: Supports IEEE 802.3az standards for energy-saving operations.
You can check the related tab for the WS-C3560CX-8TC-S datasheet.
