[shortdesc]
- Managed, Rack-mountable, 24 x 1G ports, 4 x 1G SFP Uplinks, No PoE (Data Only, Layer 2+ with static and RIP routing
[/shortdesc]
[properties]
| Properties |
HPE OfficeConnect 2930F JL259A |
| Description |
The HPE Aruba 2930F JL259A is a 28-port Gigabit access switch with 24 RJ-45 Gigabit ports and 4 fixed SFP uplink ports, designed for reliable enterprise connectivity. |
| Product Family |
2930F Series |
| Product Type |
Ethernet Switch |
| I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP |
| Additional ports and slots |
1 dual-personality (RJ-45 or USB micro-B serial console port |
| Electrical characteristics |
| Frequency |
50/60 Hz |
| Voltage |
100 - 127 / 200 - 240 VAC, rated |
| Current |
0.6/0.4 A |
| Maximum heat dissipation |
100.0 BTU/hr (105.5 kj/hr |
| Maximum power rating |
29.3 W |
| Idle power |
19.5 W |
| PoE power |
- |
| Dimensions |
17.42 x 7.88 x 1.73 in |
| Weight |
5.31 lb (2.41 kg |
[/properties][specifications]
| Specifications |
2930F-JL259A |
| CPU |
Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM, 4 GB eMMC; Packet buffer size: 12.38 MB (4.5 MB ingress / 7.875 MB egress. |
| Memory and Flash |
1 GB DDR3 SDRAM 4 GB Emmc |
| Packet Buffer |
12.38 MB 4.5MB Ingress/7.785 Egress |
| 1000 Mb Latency |
< 3.8 μs (64-byte packets |
| 10 Gbps Latency |
- |
| Throughput |
up to 41.7 Mpps |
| Switching capacity |
56 Gbps |
| Routing table size |
2,000 IPv4 routes, 1,000 IPv6 routes (static and RIP. |
| MAC address table size |
32,768 entries |
| Management |
Aruba AirWave Network Management, IMC (Intelligent Management Center, CLI, Web browser, SNMP manager, Telnet, RMON1, FTP, Out-of-band management (RS-232C or micro USB. |
| Operating temperature |
32°F to 113°F (0°C to 45°C; up to 5,000 Feet,
0°C to 40°C (32°F to 104°F up to 10,000 Feet |
| Airflow direction |
Side-to-side |
| Acoustic |
Power: 49.7 dB, Pressure: 37.1 dB |
| Safety |
UL 60950-1: 2nd Edition;
UL 62368-1: 2nd Edition;
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013;
EN 62368-1: 2nd Edition;
IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition;
EN 60825-1:2014 / IEC 60825-1:2014 Class 1 |
| Emissions |
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438 |
| Immunity |
EN 55024, CISPR 24
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3 |
[/specifications][accesories]
| Cables |
| JL448A |
Aruba X2C2 RJ45 to DB9 Console Cable |
| Mounting Kit |
| J9583A |
HPE X410 1U Universal 4-post Rack Mounting Kit |
| J9583B |
Aruba X414 1U Universal 4-post Rack Mounting Kit |
| Transceivers |
|
| J9054D |
Aruba 100M SFP LC FX 2km MMF XCVR |
| J9054DCM |
Aruba CM 100M SFP LC FX 2km MMF XCVR |
| J4858D |
Aruba 1G SFP LC SX 500m MMF XCVR |
| J4858DCM |
Aruba CM 1G SFP LC SX 500m MMF XCVR |
| J4859D |
Aruba 1G SFP LC LX 10km SMF XCVR |
| J4859DCM |
Aruba CM 1G SFP LC LX 10km SMF XCVR |
| J4860D |
Aruba 1G SFP LC LH 70km SMF XCVR |
| J4860DCM |
Aruba CM 1G SFP LC LH 70km SMF XCVR |
| J8177D |
Aruba 1G SFP RJ45 T 100m Cat5e XCVR |
| J8177DCM |
Aruba CM 1G SFP RJ45 T 100m Cat5e XCVR |
| J9150D |
Aruba 10G SFP+ LC SR 300m MMF XCVR |
| J9150DCM |
Aruba CM 10G SFP+ LC SR 300m MMF XCVR |
| J9151E |
Aruba 10G SFP+ LC LR 10km SMF XCVR |
| J9151ECM |
Aruba CM 10G SFP+ LC LR 10km SMF XCVR |
| J9153D |
Aruba 10G SFP+ LC ER 40km SMF XCVR |
| J9281D |
Aruba 10G SFP+ to SFP+ 1m DAC Cable |
| J9283D |
Aruba 10G SFP+ to SFP+ 3m DAC Cable |
| Note: 2930F Series Switches do not support the use of 10G LRM, nor 7M 10G DAC |
[/accesories]

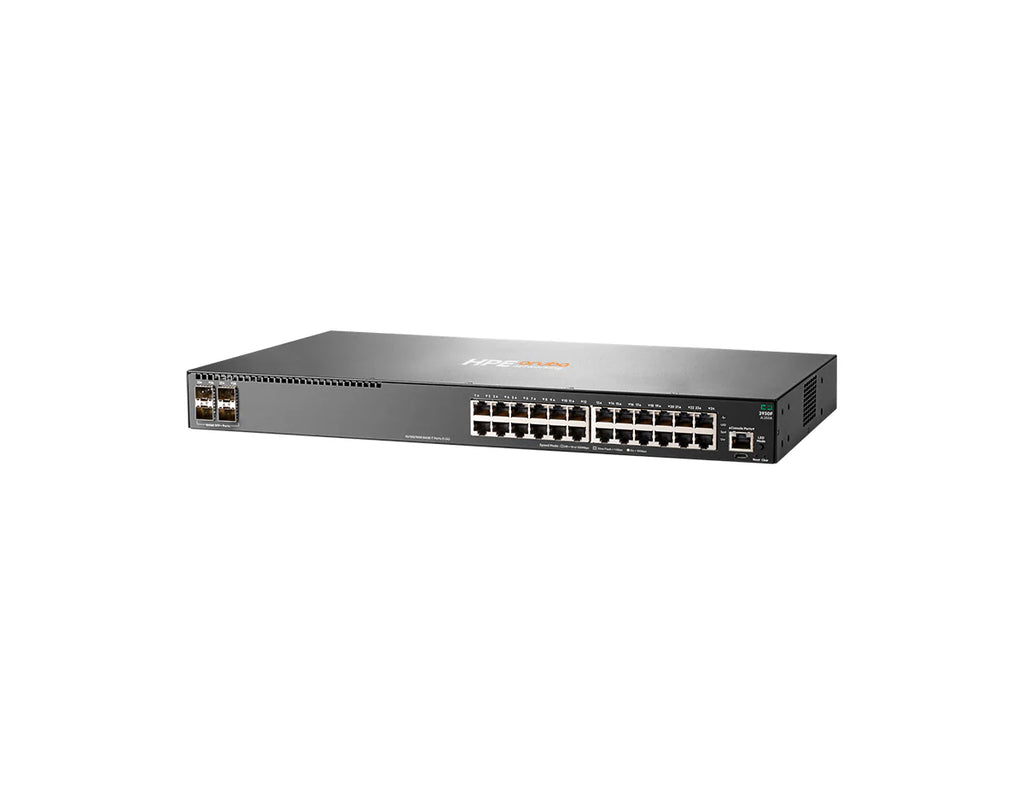

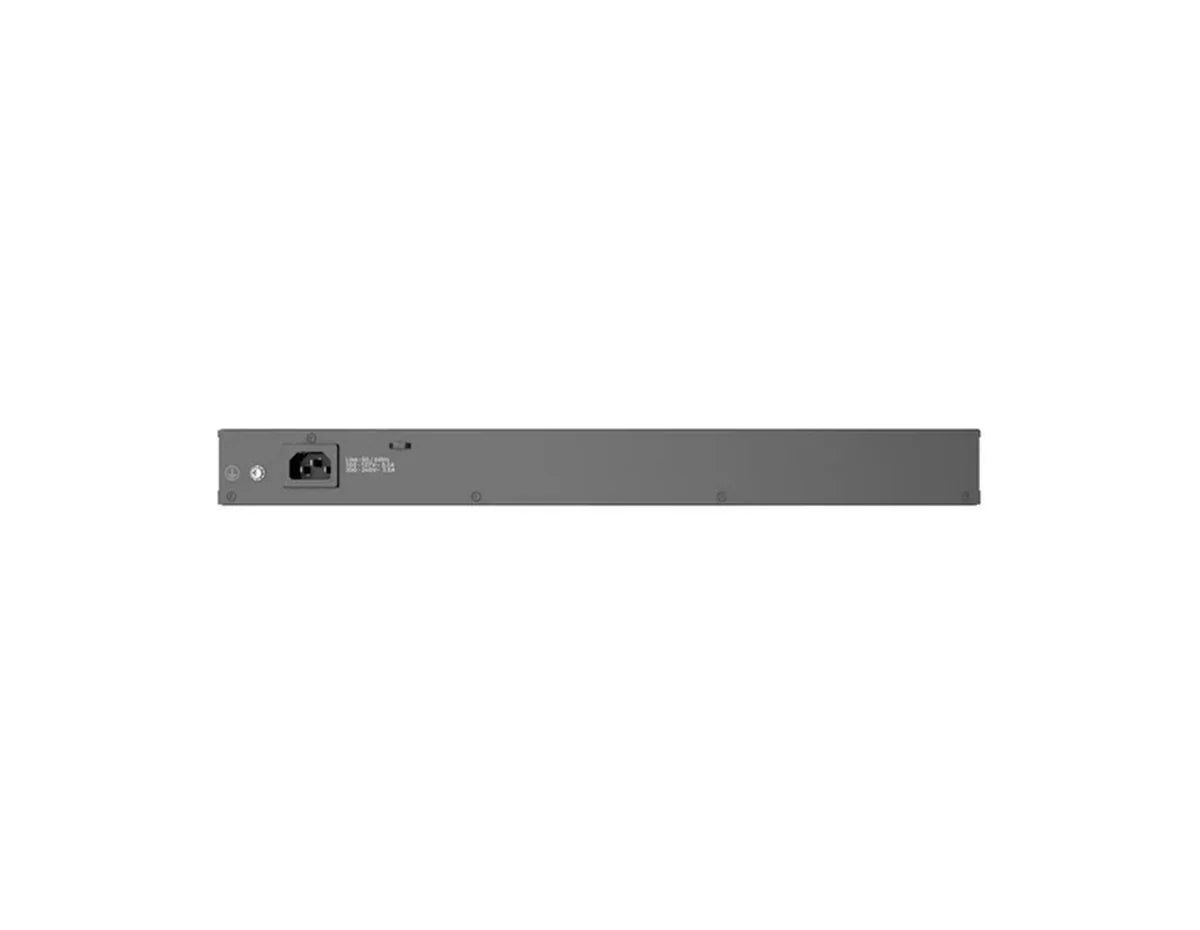

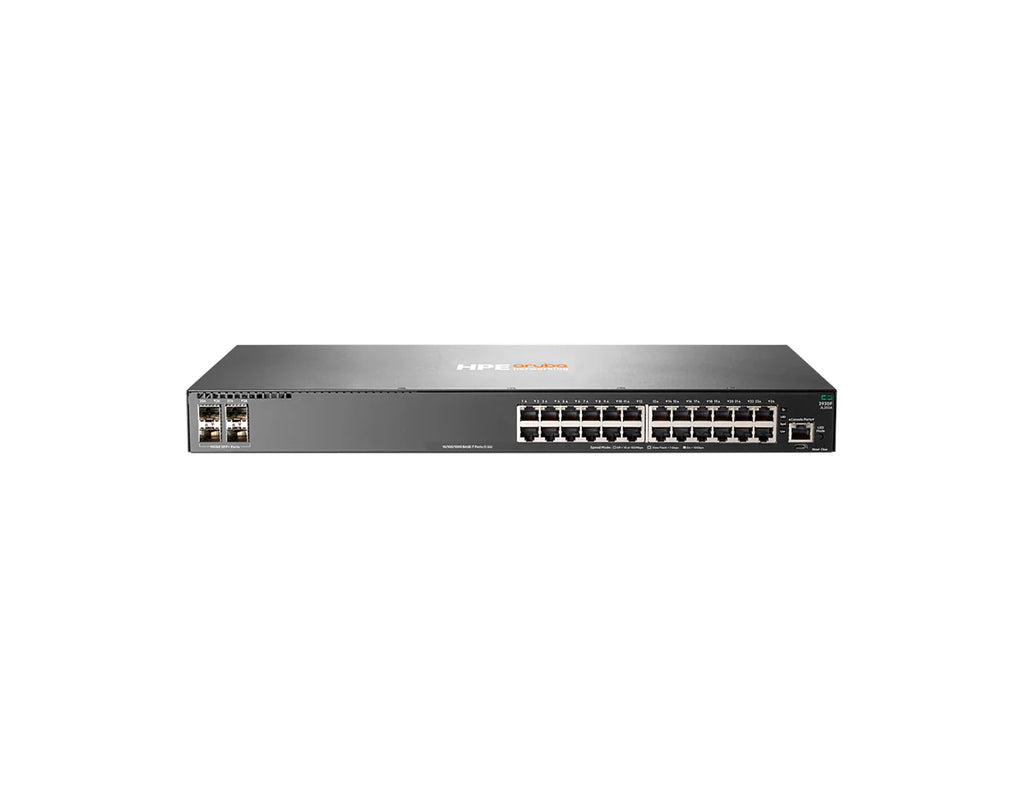

HPE Aruba 2930F 24G 4SFP Switch (JL259A
The HPE Aruba 2930F 24G 4SFP Switch (JL259A is a reliable Layer 2+ Gigabit access switch designed for small and medium-sized businesses, branch offices, and enterprise edge deployments. With 24 RJ-45 Gigabit ports and 4 fixed SFP uplinks, this model delivers fast, secure, and scalable connectivity. Featuring static and RIP routing, robust QoS, and ACL support, the JL259A provides advanced traffic management while remaining cost-effective and simple to deploy.
Key Features:
-
24 x 1GbE Ports: High-performance access layer connectivity for business-critical devices.
-
4 x SFP Uplink Ports: Flexible fiber uplinks for connecting to distribution or core switches.
-
Layer 2+ Switching: Includes VLANs, ACLs, QoS, static and RIP routing for efficient network control.
-
Scalable & Easy to Manage: Supports Aruba AirWave and IMC for centralized management.
-
Energy Efficient: Compliant with IEEE 802.3az standards to reduce power usage.
Technical Overview:
-
Recommended for: SMBs, branch offices, and education networks.
-
Ports: 24 x 1GbE, 4 x SFP uplinks.
-
Switching Capacity: 56 Gbps.
-
Forwarding Rate: 41.7 Mpps.
-
Routing: Static and RIP IPv4/IPv6.
-
MAC Address Table: 32,768 entries.
-
Latency: < 3.8 µs (64-byte packets at 1GbE.
-
Management: Aruba AirWave, IMC, CLI, Web GUI, SNMP, RMON, OOB console.
-
Power Consumption: 29.3 W max / 19.5 W idle.
-
Dimensions: 1.73 x 17.42 x 7.88 in (4.39 x 44.25 x 20.02 cm.
-
Weight: 2.41 kg (5.31 lb.
