Name: FSP Group 500W ATX Power Supply Single 2U Size 80 PLUS Bronze Certifie
Brand: FSP Group
SKU: 47747119153369
Availability: InStock

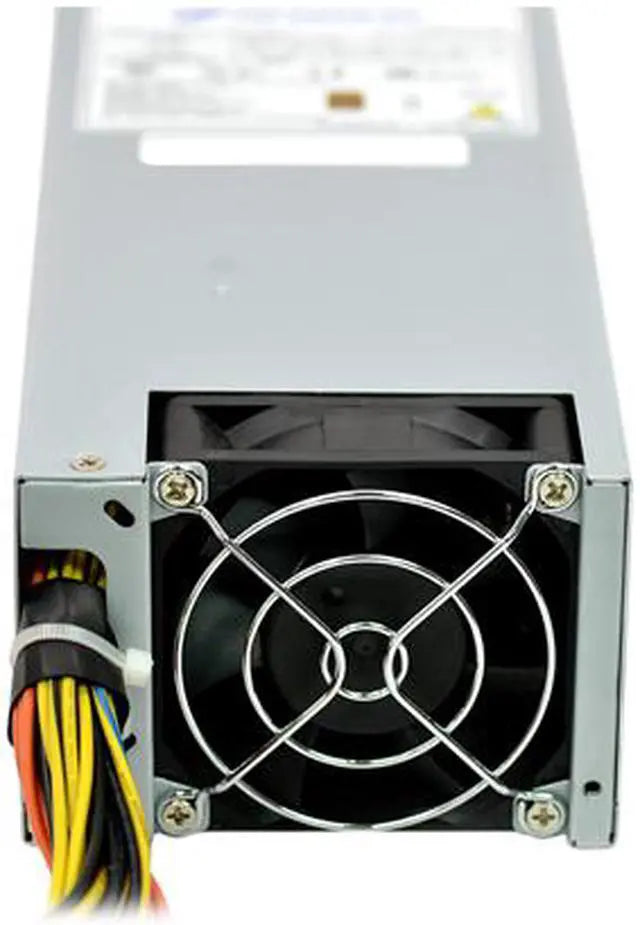

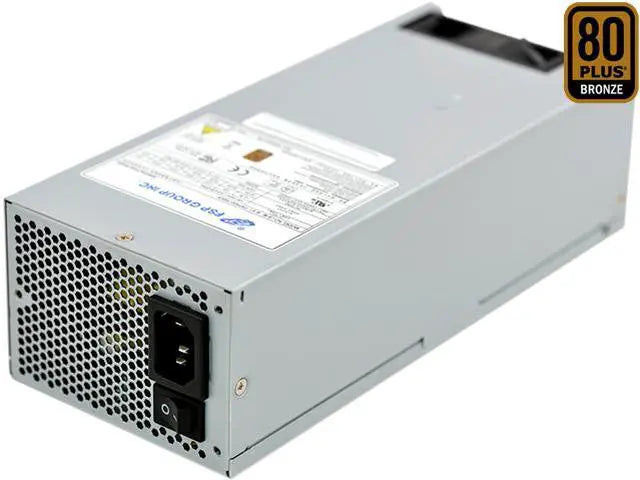

Main image of FSP Group 500W ATX Power Supply Single 2U Size 80 PLUS Bronze Certified for Rack Mount Case (FSP500-702UH) - OEM

Alt view image 2 of 5 - FSP Group 500W ATX Power Supply Single 2U Size 80 PLUS Bronze Certified for Rack Mount Case (FSP500-702UH) - OEM

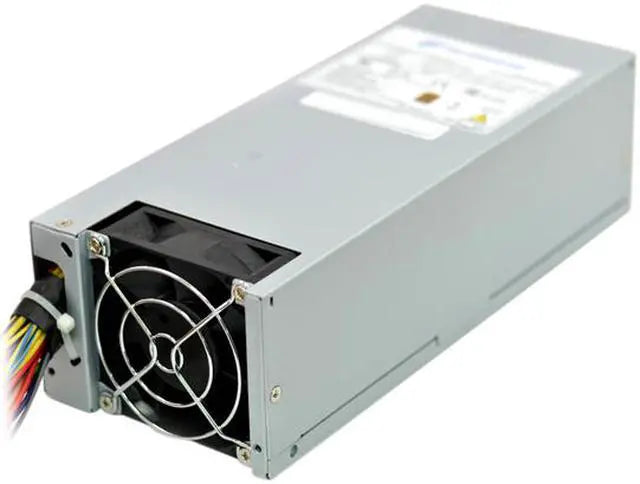

Alt view image 3 of 5 - FSP Group 500W ATX Power Supply Single 2U Size 80 PLUS Bronze Certified for Rack Mount Case (FSP500-702UH) - OEM

Alt view image 4 of 5 - FSP Group 500W ATX Power Supply Single 2U Size 80 PLUS Bronze Certified for Rack Mount Case (FSP500-702UH) - OEM

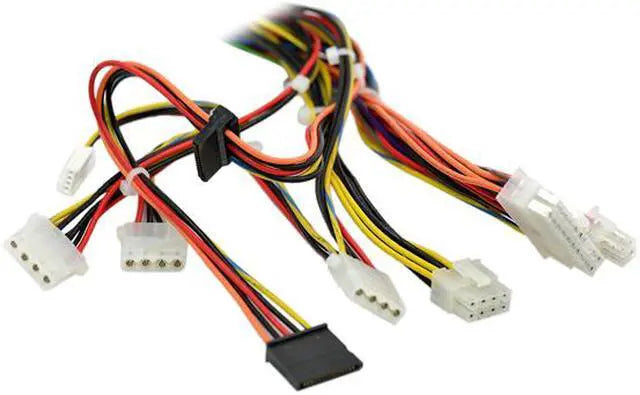

Alt view image 5 of 5 - FSP Group 500W ATX Power Supply Single 2U Size 80 PLUS Bronze Certified for Rack Mount Case (FSP500-702UH) - OEM

Méthodes de paiement

Vos informations de paiement sont gérées de manière sécurisée. Nous ne stockons ni ne pouvons récupérer votre numéro de carte bancaire.

Sécurité

Learn more about the FSP FSP500-702UH

Model
Brand	FSP Group
Model	FSP500-702UH

Details
Maximum Power	500W
Output	Output Voltage: +3.3Vdc output : +3.5 Vdc minimum, + 4.5Vdc maximum +5Vdc output : +5.5 Vdc minimum, + 6.82Vdc maximum +12Vdc output : +13.4 Vdc minimum, + 15.6Vdc maximum
Input Frequency Range	47 - 63 Hz
Input Current	115V @ 8.0 Amps-rms maximum 230V @ 4.0 Amps-rms maximum
MTBF	The power supply have a minimum predicted MTBF(MIL-HDBK-217) of 100,000 hours of continuous operation at 25 degree C, maximum-output load, and nominal AC inout voltage
Efficiency	85% 230V AC
Hold-up Time	115V / 60Hz 16mSec. Minimum @ 100% Load, 230V / 50Hz 16mSec. Minimum @ 100% Load
Protection	Over current protection 3.3V:50mV p-p 5V:50mV p-p 12V1:120mV p-p 12V2:120mV p-p 12V3:120mV p-p -12V:120mV p-p 5Vsb:50mV p-p -5V:100mV p-p

Features
Features	80 Plus Bronze Low Ripple & Noise Output over voltage protection Short circuit protection on all outputs Resettable power shut down INTERNAL 4 cm fan 100% burn-in under high ambient temperature (50 degree C) Vacuum-impregnated transformer MTBF:100K hours at 25 degree C 100% Hi-pot tested Line input fuse protection

Dimensions & Weight
Dimensions	2.76" x 9.45" x 3.94"

Environmental
Humidity	Operating : 85% to % RH, Non-condensing Storage : 95% to % RH, Non-condensing
Temperature	Operating : 0 to +50 degree C Storage :-20 to +80 degree C
