[shortdesc]
5kVA / 4800W Online, Integrated 208V→120V Transformer, 12x NEMA 5-20R + 2x L6-20R + 2x L6-30R, Pre-installed Network Management Card 3
[/shortdesc]
[properties]
| Brand |
APC by Schneider Electric |
| Model |
SRT5KRMXLT-5KTF |
| Product Type |
Smart-UPS On-Line with Transformer |
| Form Factor |
Rackmount 5U |
| Dimensions (H x W x D |
8.6" x 17.0" x 28.3" (218 x 432 x 719 mm |
| Weight |
217.99 lb (98.88 kg |
| Color |
Black |
| Number of Rack Units |
5U |
| Cable Length |
10 ft (3.05 m |
| Cooling |
Not specified |
[/properties]
[specifications]
| Capacity |
5000 VA / 4800 W |
| Input Voltage |
208 V (other: 220 V • Adjustable (half load: 100–275 V |
| Input Connection Type |
NEMA L6-30P |
| Input Frequency |
40–70 Hz auto-sensing |
| Output Voltage |
120 V |
| Output Connections |
12 × NEMA 5-20R, 2 × NEMA L6-20R, 2 × NEMA L6-30R |
| Waveform Type |
Sine wave |
| Topology |
Double Conversion On-Line |
| Transfer Time |
Not specified |
| Bypass Type |
Internal Bypass (Automatic and Manual |
| Crest Factor |
3:1 |
| Harmonic Distortion |
<2% |
| Battery Type |
Lead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated |
| Extendable Runtime |
Yes |
| Surge Energy Rating |
480 J |
| Acoustic Noise |
55 dBA |
| Thermal Dissipation |
1047 BTU/h |
| Operating Temperature |
0–40 °C (32–104 °F |
| Operating Humidity |
0–95% non-condensing |
| Altitude |
0–10,000 ft operating |
| Communications |
USB compatible, EPO, Audible/visible alarms, 1 SmartSlot (free, Pre-installed Network Management Card 3 with environmental monitoring |
| Certifications |
ENERGY STAR V2.0 (USA |
| Warranty |
3 years repair or replace (UPS, 2 years for battery |
[/specifications]
[accessories]
| Rack Mounting Hardware |
Included in the box |
| Rack Mounting Brackets |
Included in the box |
| Rack Mounting Support Rails |
Included in the box |
| USB Cable |
Included in the box |
| Documentation |
Documentation CD, Installation guide, User Manual, Warranty card |
| Web/SNMP Management Card |
Pre-installed in the unit |
[/accesories]
Overview

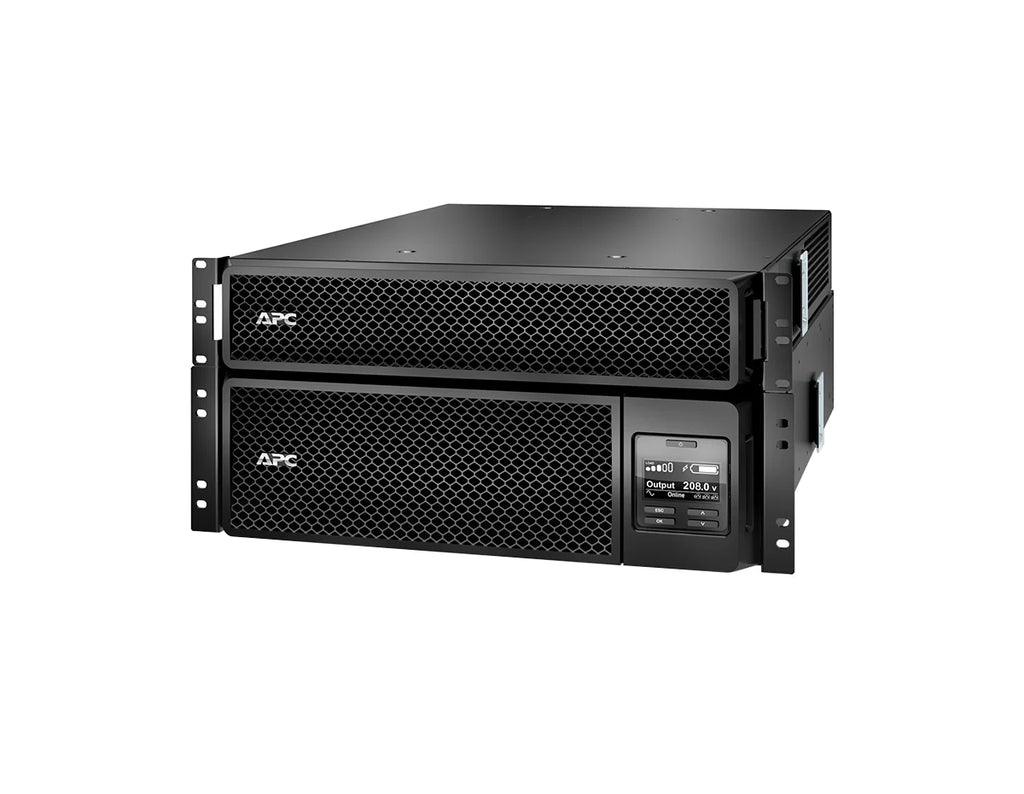

The APC Smart-UPS On-Line SRT5KRMXLT-5KTF delivers 5kVA/4800W of conditioned power in a 5U rackmount design. With true double-conversion protection, an integrated 208V to 120V transformer, a comprehensive outlet mix, and a factory-installed Network Management Card 3 with environmental monitoring, it safeguards mission-critical servers, storage, and network devices with centralized visibility and control.
Key Features & Benefits
-
Double Conversion Online – Continuous AC-DC-AC conditioning provides stable, low-distortion sine wave output.
-
208V→120V Transformer – Built-in step-down conversion broadens compatibility for downstream 120 V equipment.
-
Comprehensive Outlets – 12× 5-20R, 2× L6-20R, 2× L6-30R support diverse IT loads and higher-current connections.
-
Pre-installed NMC 3 – Enables secure remote monitoring, control, and environmental sensing.
-
Internal Bypass – Automatic and manual bypass paths help maintain power to the load during certain events.
-
Extendable Runtime – External battery support with typical 1.5 h recharge restores readiness quickly.
-
ENERGY STAR® V2.0 – High-efficiency design helps reduce operating impact.
Technical Deep Dive
Online Topology: The UPS isolates connected loads from sags, surges, and line noise by regenerating AC power. Output harmonic distortion is less than 2%, and a 3:1 crest factor handles transient inrush typical of electronic equipment.
Power Distribution & Conversion: An integrated transformer converts 208 V input to regulated 120 V output. The outlet mix (5-20R, L6-20R, L6-30R simplifies distribution across mixed equipment profiles while retaining locking options for higher-current devices.
Energy Storage & Controls: A 192 V lead-acid battery system supports extended runtime and typically recharges in about 1.5 hours. The unit includes Emergency Power Off (EPO, prioritized audible/visible alarms, USB compatibility, and a SmartSlot architecture with the Network Management Card 3 pre-installed.
Ideal Applications
- Rack-mounted servers, high-capacity storage, and core network hardware
- Sites needing 120 V distribution from a 208 V source
- Distributed IT and edge locations requiring remote monitoring
- Environments within 32–104 °F (0–40 °C and up to 95% RH non-condensing
Frequently Asked Questions (FAQs
Q1: How is the SRT5KRMXLT-5KTF installed?
A: It is a 5U rackmount UPS and ships with rack hardware, brackets, support rails, user manual, and USB cable. Input uses a NEMA L6-30P; cord length is 10 ft (3.05 m.
Q2: What performance can I expect?
A: Rated 5kVA / 4800 W with sine wave output. Runtime varies by load and any external battery packs; consult APC’s runtime chart for exact values. Typical recharge is ~1.5 hours.
Q3: How can it be managed?
A: The pre-installed Network Management Card 3 enables remote monitoring and environmental inputs. USB compatibility, EPO, and prioritized alarms support local control and safety integration.
