[shortdesc]
- Network Essentials, Managed, DIN rail mountable, Switch, 4 x 10/100/1000 + 2 x Gigabit SFP
[/shortdesc]
| Properties |
IE-3100-4T2S-E |
| Description |
Catalyst IE3100 w/4 Ports GE Copper and 2 GE SFP uplinks, NE |
| Product Family |
Cisco Catalyst IE3100 Rugged Series |
| Product Type |
Ethernet Switch |
| Number of Ports |
6 |
| Downlinks |
4 x 10/100/1000M RJ45 ports |
| Uplinks (SFP/SFP+ |
2 x 1G SFP Fiber ports |
| Cisco IOS Software |
Network Essentials |
| Optional Removable Storage |
SD Card |
| Console ports |
1 RS-232 (via RJ-45, 1 Micro USB |
| Power inputs |
Dual DC power inputs |
| Input Voltage Range |
12V to 48V nominal |
| 9.6V to 60V absolute |
| Power consumption |
14W |
| Fans |
Fanless |
| Dimensions (H x W x D |
5.00 x 2.55 x 4.33 in. (12.70 x 6.48 x 11.00 cm |
| Mounting |
DIN Rail |
|
|
|
|
[/properties][specifications]
| Specifications |
IE-3100-4T2S-E |
| DRAM |
4 GB |
| MAC addresses |
8000 |
| Number of queues / port |
8 egress |
| MTBF (hours |
931,290 |
| Internet Group Management Protocol (IGMP multicast groups |
512 |
| VLANs |
256 |
| Operating Temperature |
–40° to 75°C (max |
| Safety |
Information Technology Equipment:
● UL/CSA 60950-1
● UL/CSA 62368-1
● CB report and certificate to IEC 62368-1 with all country deviations
Industrial floor (control equipment:
● UL/CSA 61010-2-201
● CB report and certificate to IEC/EN 61010-2-201
Hazardous Locations:
● UL121201 (Class I, Div 2, groups A–D
● CSA 22.2 No 213 (Class I, Div 2, groups A–D
● UL/CSA 60079-0, -15 (Class I, Zone 2, Gc/IIC
● IEC 60079-0, -7, -15 IECEx test report (Class I, Zone 2, Gc/IIC
● EN 60079-0, -7, -15 ATEX certificate (Class I, Zone 2, Gc/IIC |
| Emissions, immunity and regulatory compliance |
FCC 47 CFR Part 15 Subpart B Class A
EN 55032 Class A
EN 55035
VCCI Class A
AS/NZS CISPR 32 Class A, AS/NZS CISPR 35
IEC/EN 61000-4-2 (Electro Static Discharge, 15kV air/8kV contact
IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m with unshielded cables
IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line
IEC/EN 61000-4-5 (Surge 2 kV/1 kV
IEC/EN 61000-4-6 (Conducted Immunity, 10 Vrms
IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity¹
IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity¹
IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity¹
IEC/EN 61000-4-29 (Voltage Dips Immunity¹
IEC/EN 61000-6-1 (Immunity for Light Industrial Environments
IEC/EN 61000-6-2 (Immunity for Industrial Environments
IEC/EN 61000-6-4 (Emission for Industrial Environments
EN 61326 |
[/specifications][accesories]
| SD-IE-1GB= |
1GB SD memory card for IE |
| SD-IE-4GB= |
4GB SD memory card for IE |
| PWR-IE50W-AC= |
50W AC to DC or High DC to DC Power Supply |
| PWR-IE50W-AC-L= |
50W AC to DC Power Supply |
| PWR-IE50W-AC-IEC= |
50W AC to DC Power Supply with IEC connector |
| PWR-IE65W-PC-AC= |
65W AC to DC or High DC to DC Power Supply |
| PWR-IE65W-PC-DC= |
65W Low DC to DC Power Supply |
| PWR-IE170W-PC-AC= |
170W AC to DC or High DC to DC Power Supply |
| PWR-IE170W-PC-DC= |
170W Low DC to DC Power Supply |
| PWR-IE240W-PCAC-L= |
240W AC to DC Power Supply |
| PWR-IE480W-PCAC-L= |
480W AC to DC Power Supply |
| STK-RACK-DINRAIL= |
19" DIN Rail mount kit |
| SFP support |
| GLC-FE-100FX-RGD= |
100BASE-FX FE 2km MMF |
| GLC-FE-100LX-RGD |
100BASE-LX10 FE 10km SMF |
| GLC-FE-100FX= |
100BASE-FX FE 2km MMF |
| GLC-FE-100LX= |
100BASE-LX10 FE 10km SMF |
| GLC-FE-100EX= |
100BASE-EX FE 40km SMF |
| GLC-FE-100ZX= |
100BASE-ZX FE 80km SMF |
| GLC-FE-100BX-D= |
100BASE-BX10 FE 10km SMF |
| GLC-FE-100BX-U= |
100BASE-BX10 FE 10km SMF |
| GLC-SX-MM-RGD= |
1000BASE-SX GE 550m MMF |
| GLC-LX-SM-RGD= |
1000BASE-LX/LH GE 550m/10km MMF/SMF |
| GLC-ZX-SM-RGD= |
1000BASE-ZX GE 70km SMF |
| GLC-BX40-U-I= |
1000BASE-BX40 GE 40km SMF |
| GLC-BX40-D-I= |
1000BASE-BX40 GE 40km SMF |
| GLC-BX40-DA-I= |
1000BASE-BX40 GE 40km SMF |
| GLC-BX80-U-I= |
1000BASE-BX80 GE 80km SMF |
| GLC-BX80-D-I= |
1000BASE-BX80 GE 80km SMF |
| GLC-SX-MMD= |
1000BASE-SX GE 550m MMF |
| GLC-LH-SMD= |
1000BASE-LX/LH GE 550m/10km MMF/SMF |
| GLC-EX-SMD= |
1000BASE-EX GE 40km SMF |
| GLC-ZX-SMD= |
1000BASE-ZX GE 70km SMF |
| GLC-BX-D= |
1000BASE-BX10 GE 10km SMF |
| GLC-BX-U= |
1000BASE-BX10 GE 10km SMF |
| CWDM-SFP-xxxx= (8 freq |
CWDM 1000BASE-X GE SMF |
| DWDM-SFP-xxxx= (40 freq |
DWDM 1000BASE-X GE SMF |
| SFP-GE-S= |
1000BASE-SX GE 550m MMF |
| SFP-GE-L= |
1000BASE-LX/LH GE 550m/10km MMF/SMF |
| SFP-GE-Z= |
1000BASE-ZX GE 70km SMF |
| GLC-SX-MM= |
1000BASE-SX GE 550m MMF |
| GLC-LH-SM= |
1000BASE-LX/LH GE 550m/10km MMF/SMF |
| GLC-ZX-SM= |
1000BASE-ZX GE 70km SMF |
| GLC-T= |
1000BASE-T GE 100m Copper |
| GLC-TE= |
1000BASE-T GE 100m Copper |
| GLC-T-RGD= |
1000BASE-T GE 100m Copper |
[/accesories]

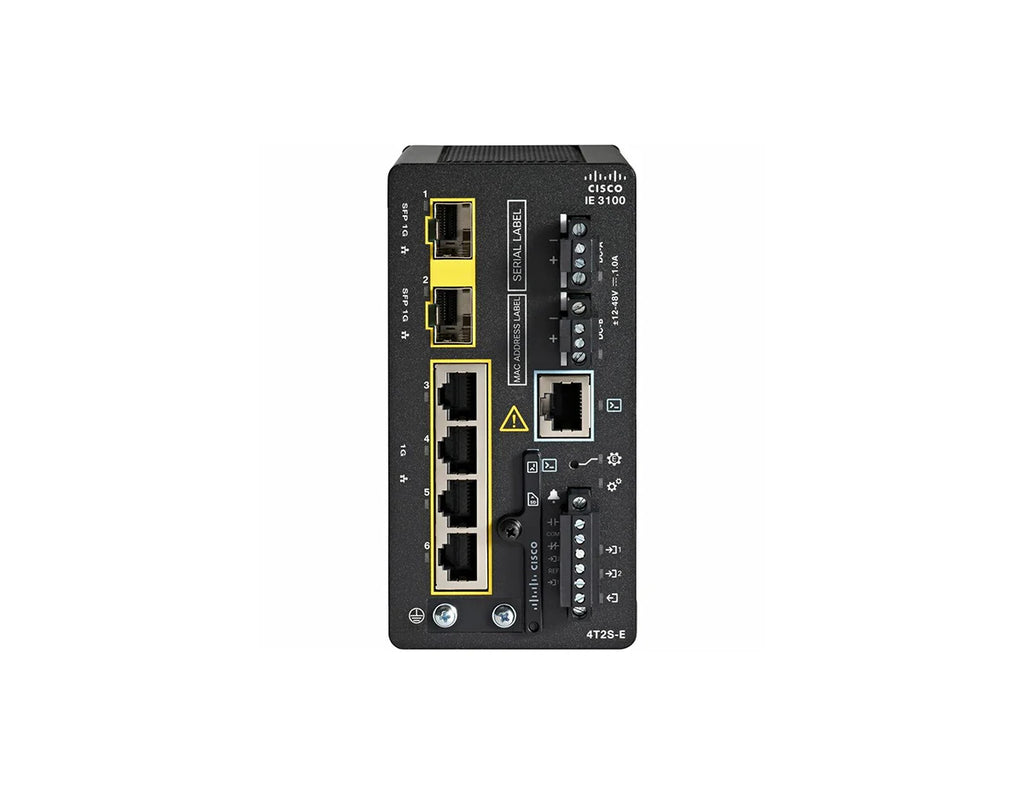

Cisco IE-3100-4T2S-E Industrial Ethernet Switch
The Cisco IE-3100-4T2S-E is a rugged industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh environments. This switch features 4 Gigabit Ethernet ports and 2 SFP slots, making it an ideal solution for connecting critical industrial devices such as sensors, controllers, and IP cameras. The IE-3100-4T2S-E is engineered to operate in extreme conditions, ensuring continuous operation while offering Layer 2 and Layer 3 (static inter-VLAN capabilities under the Network Essentials license for effective segmentation, security, and traffic control.
Key Features:
-
4 x Gigabit Ethernet Ports: Provides reliable and high-speed data connectivity for various industrial devices, ensuring stable network communication.
-
2 x SFP Slots: Offers flexible uplink options with fiber connectivity, enabling high-speed data transfer and network scalability.
-
Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
-
Layer 2 & Static Layer 3: Includes VLANs, QoS, security, and basic routing to enhance network control and segmentation.
-
Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.
Technical Overview:
-
Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management features.
-
Ports: 4 x Gigabit Ethernet ports, 2 x SFP slots.
-
Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
-
Management: Managed via WebUI, CLI, SNMP, and Cisco Catalyst Center for comprehensive setup and monitoring.
-
Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-3100-4T2S-E datasheet.
