Descrizione
Overview

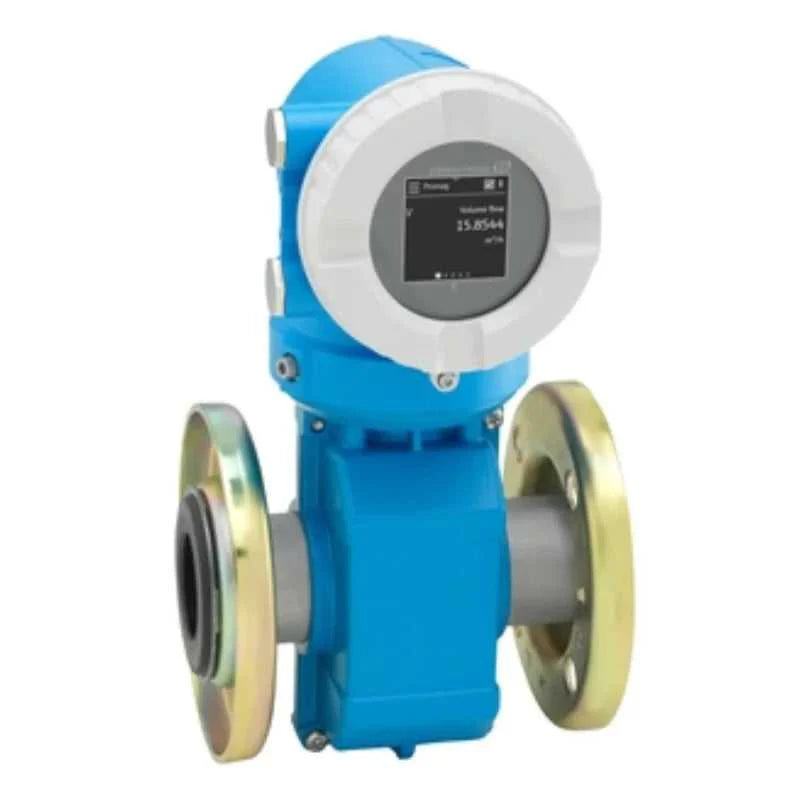

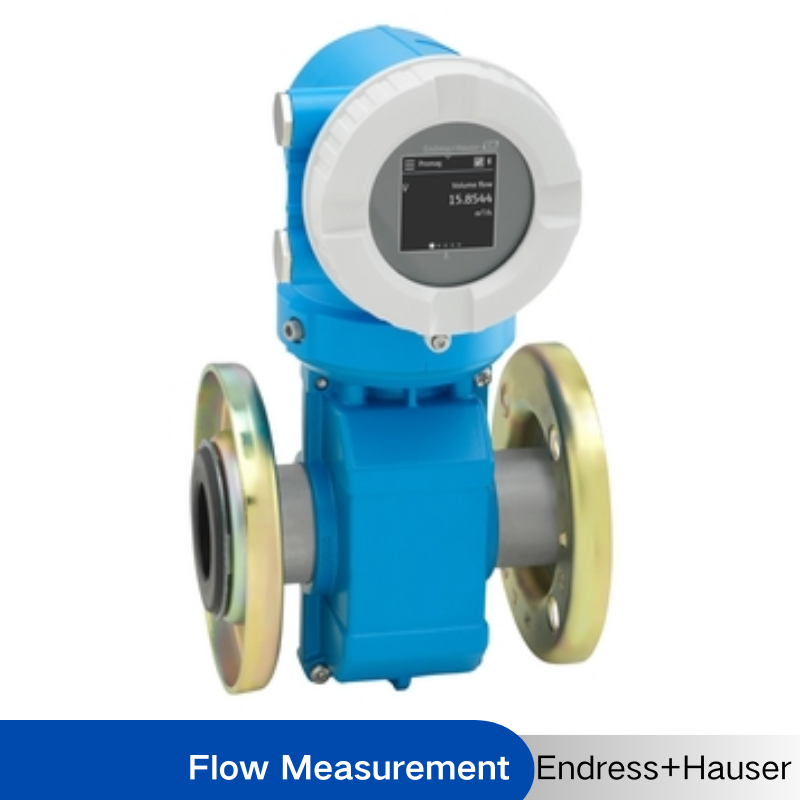

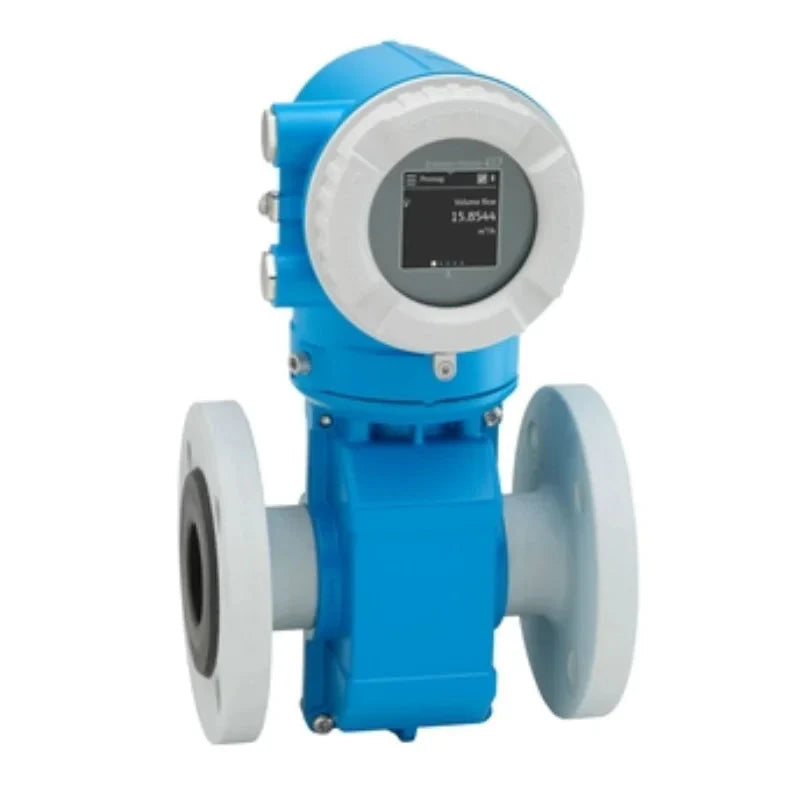

Endress Hauser Proline Promag W10 Electromagnetic Flowmeter. A flowmeter for basic water and wastewater applications with easy-to-use operation concept
Specs at a glance
Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Measuring range 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d) Medium temperature range Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194°F) Max. process pressure PN 40, Class 300, 20K Wetted materials Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +160 °F) Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)
Application

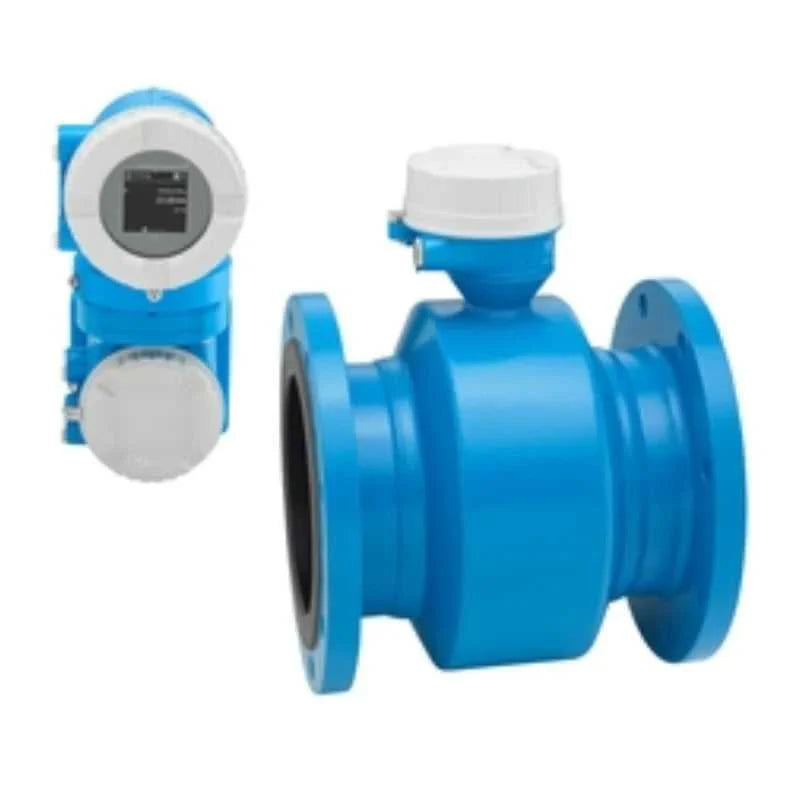

Thanks to its international approvals (e.g. for drinking water), Promag W serves a wide variety of applications. It is available as both compact or remote version. With its straightforward hard- and software design, Promag W 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and compliant verification.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity. * Suitable for elementary measurement tasks such as raw water intake. Device properties: * International drinking water approvals * Degree of protection IP68 (Type 6P enclosure) * System integration with HART, Modbus RS485 * Flexible operation with app and optional display
Benefits
* Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss * Flexible engineering – sensor with fixed or lap-joint process connections * Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation * Improved plant availability – sensor compliant with industry-specific requirements * Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen * Simple, time-saving commissioning – guided parameterization in advance and in the field * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Germany
Brand Name
Endress+Hauser
Model Number
Proline Promag W 10
Type
Electromagnetic flowmeter
Product Headline
Flowmeter for basic water and wastewater applications with easy-to-use operation concept. Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss. Suitable for elementary measurement tasks such as raw water intake.
Sensor Features
Flexible engineering – sensor with fixed or lap-joint process connections. Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation. Improved plant availability – sensor compliant with industry-specific requirements. International drinking water approvals. Degree of protection IP68 (Type 6P enclosure). International drinking water approvals. Installation length: DVGW/ISO conform.
Transmitter Features
Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology. System integration with HART, Modbus RS485. Flexible operation with app and optional display.
Nominal Diameter Range
DN 25 to 3000(1 to 120")
Wetted Materials
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +160 °F) Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)
0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)
Max. Process Pressure
PN 40, Class 300, 20K
Medium Temperature Range
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194°F)
Ambient Temperature Range
-40 to 60°C (-40 to 140°F)
Sensor Housing Material
DN 25 to 300 (1 to 12"): AlSi10Mg, coated DN 350 to 2000 (14 to 78"): Carbon steel with protective varnish
Transmitter Housing Material
Polycarbonat; AlSi10Mg, coated
Degree Of Protection
Compact version: IP66/67, type 4X enclosure Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP68, type 6P enclosure, with protective varnish according to EN ISO 12944 C5-M/Im1/Im2/Im3
Display/Operation
LCD display with touch & auto rotate
Outputs
4-20 mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20 mA
Digital Communication
HART, MODBUS RS485
Power Supply
DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals
CSA, GP, KC
Metrological Approvals And Certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Pressure Approvals And Certificates
CRN, PED
Material Certificates
3.1 material
Hygienic approvals and certificates
Drinking water approvals: ACS, KTW/W270, NSF 61, WRAS BS 6920
