[shortdesc]
- Cisco 3850 Series Power Supply PWR-C1-440WDC 440W DC Config 1 Power Supply
[/shortdesc]
[properties]
| Properties |

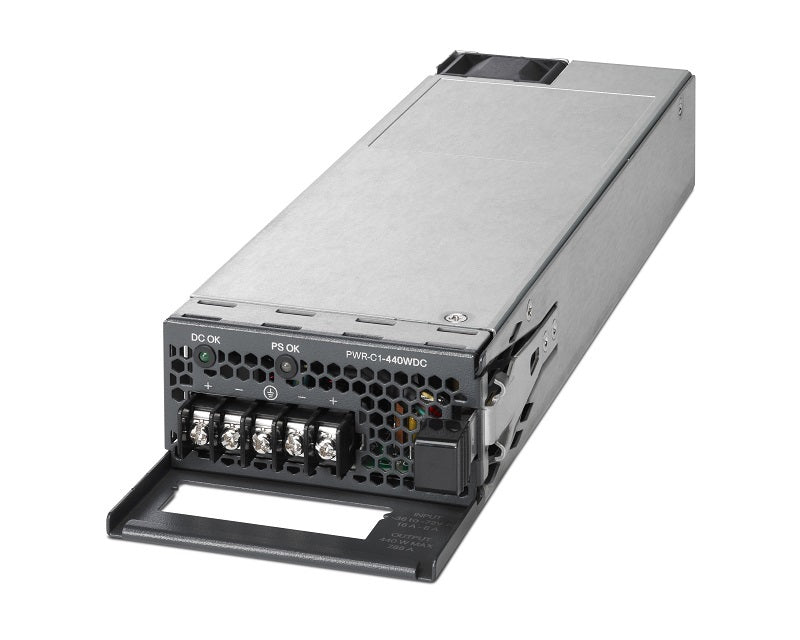

Cisco PWR-C1-440WDC Power Supply |
| Description |
440W DC power supply unit designed for Cisco Catalyst 3850 Series Switches, offering efficient and redundant power for network infrastructure |
| Compatibility |
Designed for Cisco Catalyst 3850 Series Switches |
| Product Type |
Power Supply – hot-plug / redundant (DC) |
[/properties]
[specifications]
| Specifications |
Cisco PWR-C1-440WDC |
| Power Device |
| Power Type |
DC |
| Power Provided |
440W |
| Input Voltage Range |
–36 VDC (min), –48 VDC (nominal), –72 VDC (max) |
| Input Current |
16–8 A |
| Output Rating |
–56 V @ 7.86 A |
| BTU (Input / Output) |
1841 / 1502 BTU/hr |
| Wire Gauge |
12 AWG or 8 AWG |
| Branch Circuit Protection |
20 A |
| Physical Characteristics |
| Dimensions (H x W x D) |
1.58 x 3.25 x 12.21 in (40.1 x 82.55 x 310.1 mm) |
| Weight |
2.6 lb (1.2 kg) |
| Environmental Parameters |
| Operating Temperature |
23 to 131°F (–5 to 55°C) |
| Storage Temperature |
–40 to 158°F (–40 to 70°C) |
| Humidity Range Operating |
10 to 95% (non-condensing) |
| Operating Altitude |
Up to 13,000 ft (4000 m) |
[/specifications]
[accesories]
| Included Accessories |
| — |
No additional accessories included in the box |
| Optional Accessories |
| PWR-C1-BLANK |
Power supply bay blank cover for unused slots |
| CAB-DC-12AWG |
DC power cable with 12 AWG wire (for grounding) |
| FAN-T1-F |
Fan module (front-to-back airflow) |
| FAN-T1-R |
Fan module (back-to-front airflow) |
[/accesories]
High-available Cisco PWR-C1-440WDC Power Supply
Cisco PWR-C1-440WDC Power Supply is designed for the DC power supply for the 3850 series switches. Cisco has pioneered a host of rich capabilities, such as high availability based on stateful switchover on stacking, granular QoS, security, and Flexible Netflow across wired and wireless in a seamless manner.
Key Benefits of Cisco PWR-C1-440WDC Power Supply
Cisco PWR-C1-440WDC Power Supply provides a power of 440 watts and is compatible with Cisco Catalyst 3850-24P-BA, 3850-24P-E, 3850-24P-L, 3850-48F-E, and other devices.
