[shortdesc] 5MP resolution, ARTPEC-9 processing, Lightfinder 2.0, Forensic WDR, IK10/IP54, OptimizedIR 40 m, AI analytics [/shortdesc]
[properties]
| Model |
AXIS P3277-LV |
| Product Type |
Indoor 5 MP AI-powered Dome Camera |
| Image Sensor |
1/2.8” progressive scan RGB CMOS |
| Pixel Size |
2.0 µm |
| Lens |
Varifocal 3.0–8.5 mm, F1.38–2.58; IR-corrected; Remote zoom & focus; P-Iris |
| Horizontal FOV |
104°–34° |
| Vertical FOV |
76°–26° |
| Minimum Illumination |
Color: 0.1 lux at 50 IRE, F1.38; B/W: 0.03 lux; 0 lux with IR |
| Shutter Speed |
1/30500 s to 1/25 s (matches max 25 fps |
| Pan/Tilt/Rotate |
Pan ±190°; Tilt –45° to +80°; Rotation ±95° |
| Video Resolution |
2592×1944 (4:3; 2560×1440 (16:9; 1920×1200 (16:10 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz in all resolutions |
| WDR |
Forensic WDR up to 120 dB |
| IR Illumination |
OptimizedIR, 850 nm, up to 40 m |
| Power |
PoE IEEE 802.3af/at Type 1 Class 3 |
| Power Consumption |
Max 12.6 W; Typical 4.7 W |
| Operating Temperature |
0 °C to 50 °C (32 °F to 122 °F |
| Storage Temperature |
−40 °C to 65 °C (−40 °F to 149 °F |
| Operating Humidity |
10–85% RH (non-condensing |
| Ingress / Impact Rating |
IP54, IK10 |
| Dimensions |
See datasheet dimension drawing |
| Weight |
810 g (1.8 lb |
[/properties]
[specifications]
| Video Compression |
H.264 Baseline/Main/High; H.265 Main; AV1; Motion JPEG |
| Video Streaming |
Up to 20 streams; Zipstream; VBR/ABR/MBR; Low-latency mode |
| Multi-view Streaming |
Up to 7 cropped view areas |
| SNR |
>55 dB |
| Image Settings |
Saturation, contrast, brightness, sharpness, WB, BLC, tone mapping, exposure, rotation, overlays, privacy masks |
| PTZ |
Digital PTZ; Presets; Guard tour |
| Audio Input/Output |
Mic/line in; Portcast audio; External mic power; Duplex audio |
| Audio Encoding |
24-bit LPCM; AAC-LC; G.711; G.726; Opus |
| Network Protocols |
IPv4/IPv6, HTTPS, TLS, QoS, FTP/SFTP, CIFS/SMB, SMTP, UPnP, SNMP, DNS, DDNS, NTP/NTS, RTSP/RTP/SRTP, TCP/UDP, IGMP, MQTT |
| System Integration |
VAPIX, ACAP, ONVIF G/M/S/T, SIP, AXIS Camera Station support |
| Event Triggers |
Audio detection, temperature, casing open, network loss, motion, tampering, I/O, schedules |
| Event Actions |
Day/Night shift, Defog, IR control, I/O toggle, Notifications, Recordings, Overlay text, SNMP traps |
| Built-in Analytics |
AXIS Object Analytics, Image Health Analytics, Scene Metadata, Live Privacy Shield |
| Optional Analytics |
Perimeter Defender, License Plate Verifier |
| Cybersecurity |
Axis Edge Vault; Secure keystore; Signed OS; Secure boot; Encrypted filesystem |
| Onboard Storage |
microSD/microSDHC/microSDXC; SD encryption |
| I/O |
1 configurable supervised input/output (12 V, max 25 mA |
| Network Interface |
RJ45 10/100 Mbps PoE |
| Approvals |
UL/cUL, CE, FCC, UKCA, KC, RCM, VCCI, EAC, IK10, IP54 |
| DORI |
Detect: 60–170 m; Observe: 24–67 m; Recognize: 12–34 m; Identify: 6–17 m |
[/specifications]
[accesories]
| Included in the Box |
Camera; Installation guide; Terminal block connector; Connector guard; Cable gasket; Owner authentication key |
| Optional – Portcast |
AXIS T61 MkII Audio and I/O Interface Series; AXIS D6210 Air Quality Sensor |
| Optional – Installation |
AXIS T8415 Wireless Installation Tool |
| Optional – Mounting |
AXIS TP3205 Recessed Mount; AXIS T94K01D Pendant Kit |
| Optional – Storage |
AXIS Surveillance Cards |
[/accesories]

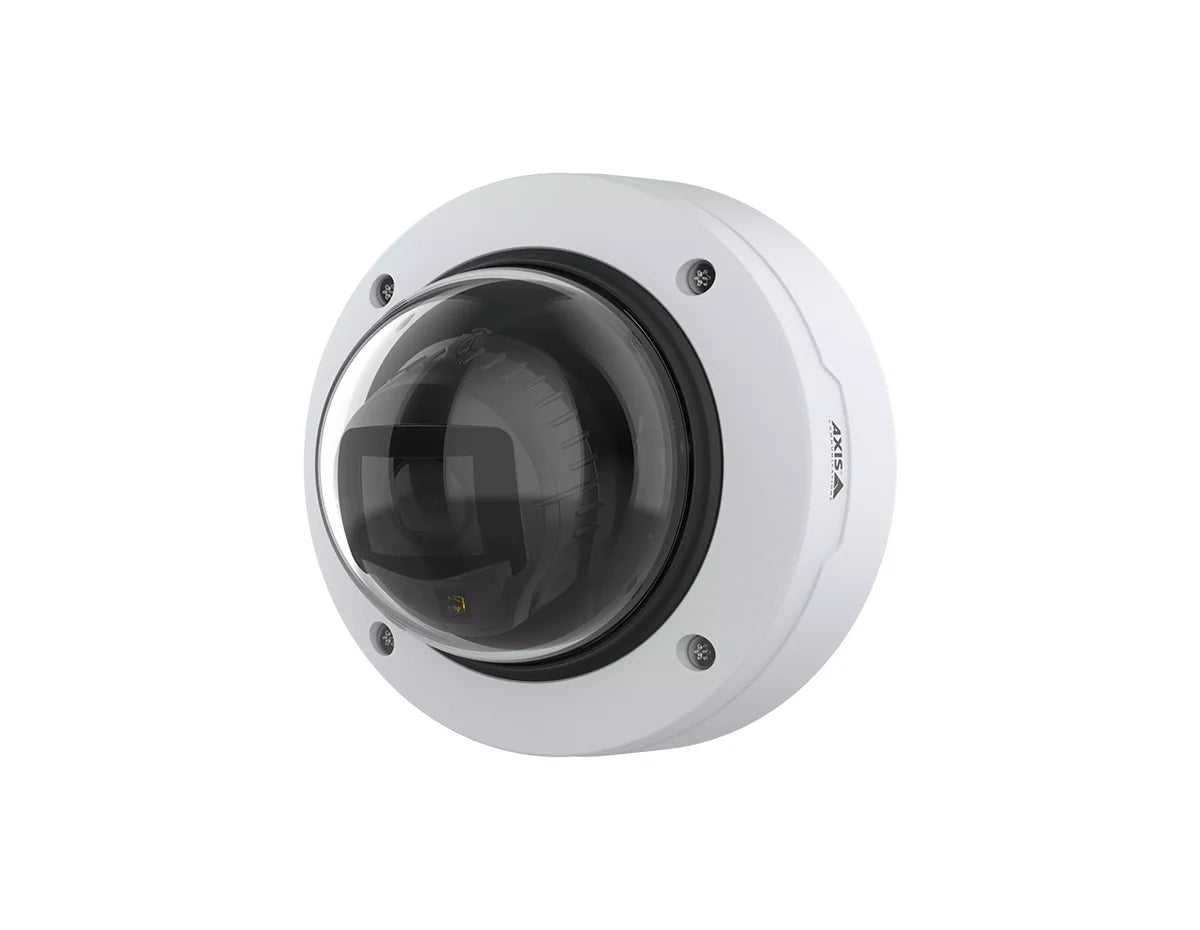

Advanced Indoor Security Powered by AI Precision
The AXIS P3277-LV Dome Camera delivers outstanding 5 MP image quality in any lighting environment, backed by the cutting-edge ARTPEC-9 system-on-chip for accelerated deep-learning analytics. With Lightfinder 2.0, Forensic WDR up to 120 dB, and long-range OptimizedIR (up to 40 m, this dome camera ensures clear, actionable video 24/7. Designed for demanding indoor surveillance, it combines strong Axis Edge Vault cybersecurity, robust IK10 vandal resistance and IP54 ingress protection, and intelligent AI analytics for professional deployments.
Key Benefits & Features
-
Superior 5 MP Image Quality: Capture detailed footage with 5 MP resolution, Lightfinder 2.0, and Forensic WDR up to 120 dB for clarity in challenging light.
-
AI-Powered Video Analytics: Built on ARTPEC-9 with a deep learning processing unit (DLPU, enabling advanced human and vehicle classification, tracking, and behavior detection via AXIS Object Analytics.
-
OptimizedIR for Zero-Light Scenes: Integrated 850 nm IR LEDs provide a powerful range of up to 40 m (130 ft or more, ensuring visibility even in total darkness.
-
Robust Cybersecurity: Axis Edge Vault hardware platform safeguards device identity, utilizing a secure keystore, secure boot, signed OS, and encrypted storage for maximum protection.
-
Flexible Installation & Adjustment: Features like remote zoom/focus, P-Iris control, corridor format support (90°, 270°, and full pan/tilt/rotation adjustments streamline professional setup.
Ideal Use Cases
- Indoor retail environments requiring high-detail forensic imaging and AI-powered analytics for loss prevention.
- Corporate offices demanding strict cybersecurity and privacy protection with features like AXIS Live Privacy Shield.
- Healthcare or education facilities needing AI-driven event detection and robust, tamper-resistant hardware (IK10.
- Transportation hubs with variable lighting and heavy foot traffic, benefiting from WDR and Object Analytics.
- Critical infrastructure requiring highly durable, vandal- and impact-resistant, IK10-rated hardware.
Technical Specifications
-
Image Sensor: 1/2.8” progressive scan RGB CMOS.
-
Resolution: Up to 2592×1944.
-
Lens: Varifocal 3.0–8.5 mm, remote zoom & focus, P-Iris.
-
Minimum Illumination: 0.1 lux color, 0.03 lux B/W, 0 lux with IR.
-
IR Range: 40 m or more (OptimizedIR.
-
WDR: Forensic WDR up to 120 dB.
-
Video Compression: H.264, H.265, AV1, Motion JPEG.
-
Frame Rate: Up to 25/30 fps in all resolutions.
-
Audio: Mic/line-in, duplex streaming, AAC/LPCM/Opus encoding.
-
Network: IPv4/IPv6, ONVIF Profiles G/M/S/T, HTTPS/TLS.
-
Power: PoE IEEE 802.3af/at Type 1 Class 3, max 12.6 W.
-
Operating Conditions: 0 °C to 50 °C, IK10 & IP54 rated.
Upgrade Your Indoor Surveillance Today
Order now to deploy advanced AI-powered protection with Axis reliability.
