[shortdesc] 2 MP resolution, Lightfinder 2.0 imaging, Forensic WDR, OptimizedIR ≥ 40 m reach, ARTPEC-9 chip, Axis Edge Vault security [/shortdesc]
[properties]
| Model |
AXIS P3285-LV |
| Product Type |
Indoor 2 MP AI-powered Dome Camera |
| Image Sensor |
1/2.8'' progressive scan RGB CMOS |
| Lens |
Varifocal 3.4–9.8 mm, F1.4–2.7; IR corrected; Remote zoom & focus; P-Iris |
| Field of View |
Horizontal: 100°–32°; Vertical: 52°–18° |
| Minimum Illumination |
Color: 0.08 lux at 50 IRE, F1.4; B/W: 0.02 lux at 50 IRE, F1.4; 0 lux with IR |
| Day/Night |
Automatic IR-cut filter |
| Shutter Speed |
1/37000 s to 2 s |
| Camera Adjustment |
Pan ±190°; Tilt -45° to +80°; Rotation ±95° |
| SoC |
ARTPEC-9 |
| Memory |
2 GB RAM, 8 GB Flash |
| WDR |
Forensic WDR up to 120 dB |
| IR Illumination |
OptimizedIR, 850 nm, ≥ 40 m |
| Power |
PoE IEEE 802.3af/802.3at Type 1 Class 3 (Max 10 W |
| Operating Conditions |
0°C to 50°C; 10–85% RH (non-condensing |
| Storage Conditions |
-40°C to 65°C; 5–95% RH (non-condensing |
| IP Rating |
IP54 |
| IK Rating |
IK10 |
| Dimensions |
See datasheet drawing |
| Weight |
810 g (1.8 lb |
[/properties]
[specifications]
| Video Compression |
H.264, H.265, AV1, Motion JPEG |
| Resolutions |
1920x1080 (16:9; 1440x1080 (4:3; 1280x800 (16:10 |
| Frame Rate |
Up to 50/60 fps in all resolutions |
| Video Streaming |
Up to 20 streams; Zipstream; VBR/ABR/MBR; Low latency mode |
| SNR |
>55 dB |
| Noise Reduction |
2D and 3D noise reduction |
| Image Settings |
Saturation, contrast, WDR, exposure zones, rotation, privacy masks |
| Analytics (Included |
AXIS Object Analytics; Image Health Analytics; Audio Analytics; Scene Metadata; Live Privacy Shield; VMD |
| Object Analytics Classes |
Humans, vehicles (cars, trucks, buses, bikes |
| Network Protocols |
IPv4/IPv6, HTTP/HTTPS, FTP/SFTP, RTSP, SNMP, MQTT, NTP/NTS, SSH, LLDP, CDP |
| Video Management |
AXIS Camera Station; ONVIF Profiles G, M, S, T |
| Event Triggers |
Motion, tampering, audio detection, I/O, temperature, storage issues |
| Event Actions |
Recordings, notifications, overlay text, I/O control, SNMP traps |
| Cybersecurity |
Axis Edge Vault, Secure Boot, Signed Video, TLS 1.2/1.3, MACsec |
| I/O |
1 configurable input/output (12 V DC output, max 25 mA |
| Connectors |
RJ45 10/100 PoE; 4-pin terminal block |
| Storage |
microSD/microSDHC/microSDXC; SD encryption; NAS support |
| Approvals |
UL/cUL, CE, FCC, IK10, IP54, EN 62368-1 |
| DORI Distances |
Detect 48–135 m; Observe 19–54 m; Recognize 9.6–27 m; Identify 4.8–14 m |
[/specifications]
[accesories]
| Included in the Box |
Camera; Installation guide; Drill template; Terminal block connector; Connector guard; Cable gasket; Owner authentication key |
| Optional – Installation |
AXIS T8415 Wireless Installation Tool |
| Optional – Mounting |
AXIS TP3205 Recessed Mount; AXIS T94K01D Pendant Kit |
| Optional – Storage |
AXIS Surveillance Cards |
[/accesories]

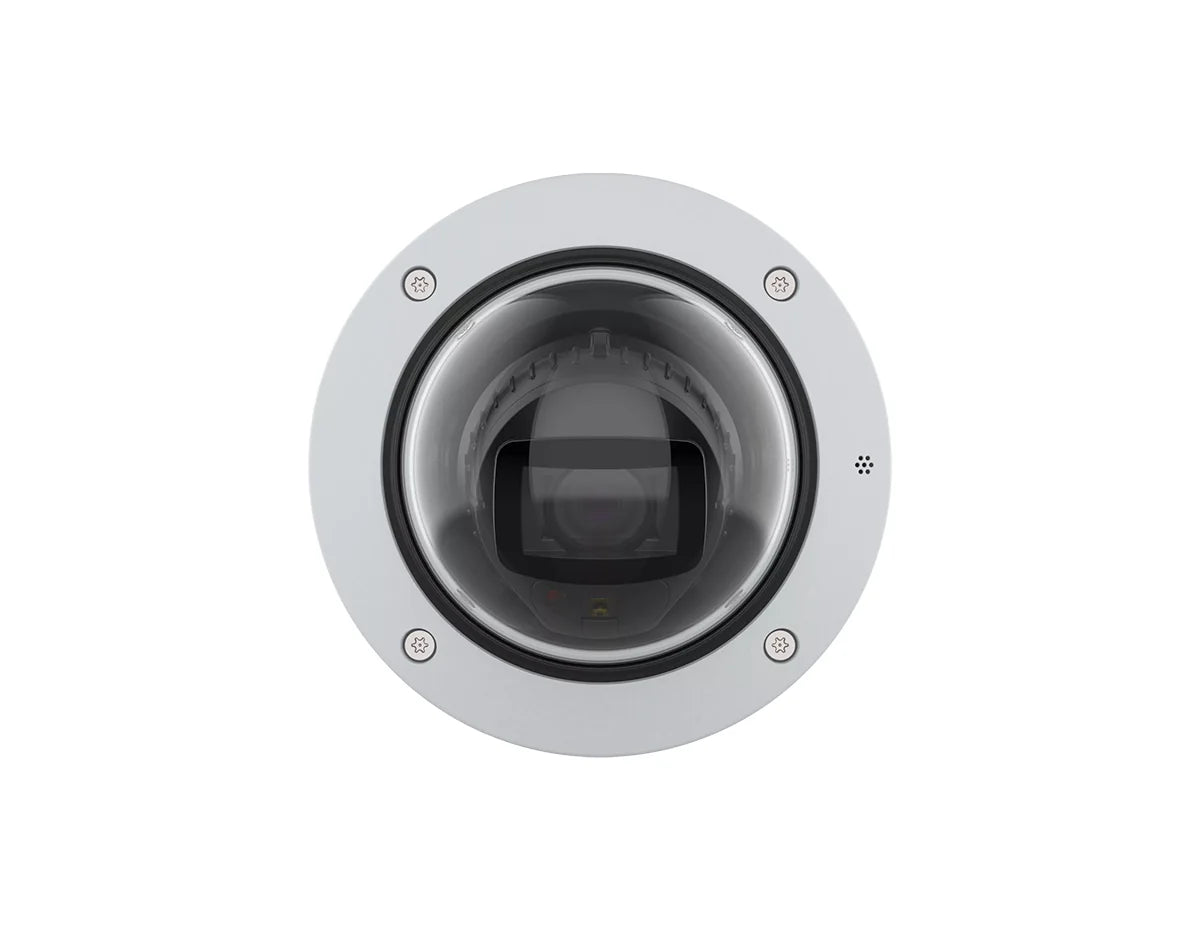

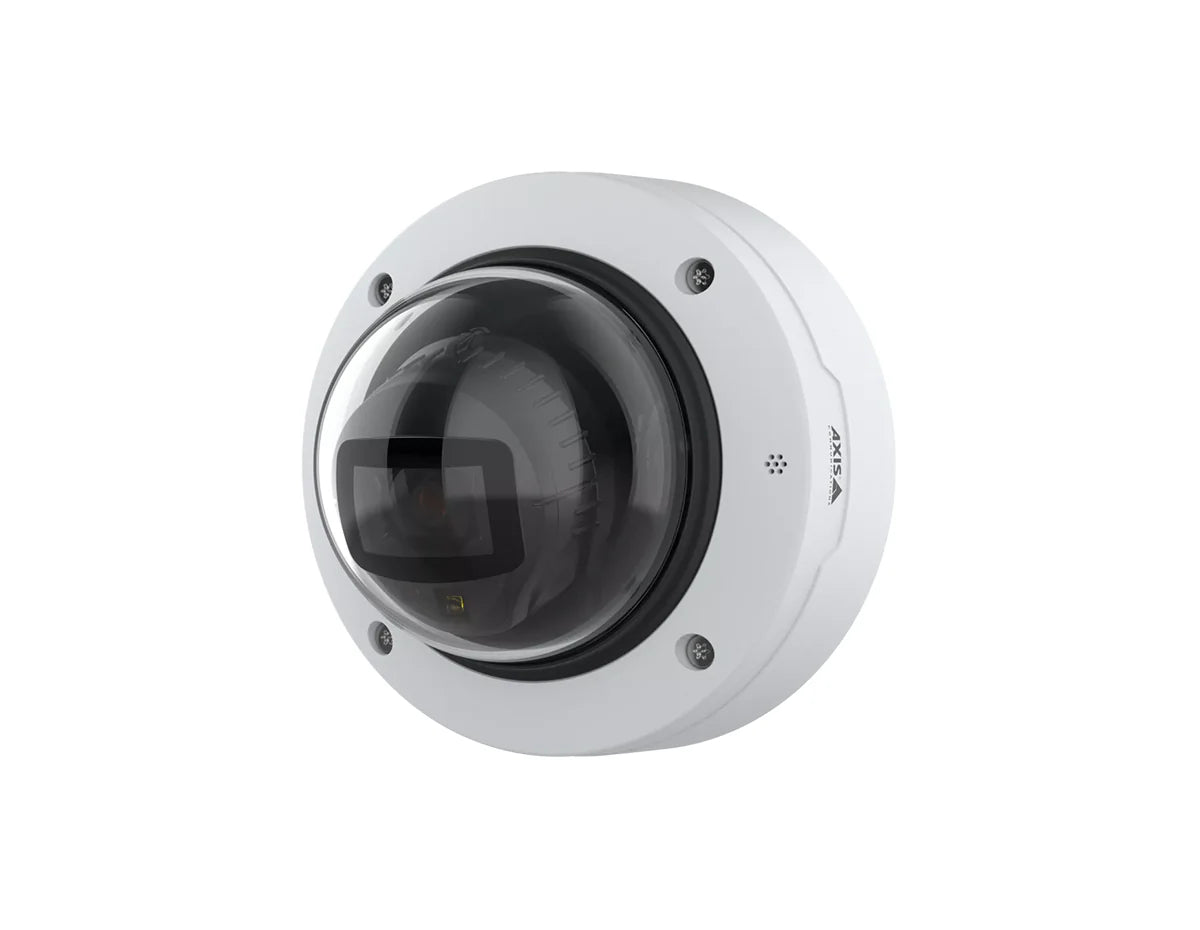

Intelligent Indoor Surveillance with AI Precision
The AXIS P3285-LV Dome Camera delivers exceptional 2 MP clarity and advanced on-device analytics for precise real-time detection and incident response. Built on the powerful ARTPEC-9 system-on-chip, it provides superior imaging in challenging light and supports AI-powered object and audio analytics for smarter, faster decision-making. Featuring the Axis Edge Vault cybersecurity platform, it ensures industry-leading protection for device identity and data integrity.
Key Benefits & Features
-
AI-powered analytics: Detect, classify, track, and count humans and vehicles using deep learning-based AXIS Object Analytics.
-
Superior low-light performance: Lightfinder 2.0 and Forensic WDR (up to 120 dB enable high-detail imaging in complex lighting conditions.
-
Advanced audio analytics: Built-in capabilities identify sound events such as screams, shouts, glass break, and speech for proactive security.
-
OptimizedIR illumination: 850 nm integrated IR provides clear monochrome imaging at distances of 40 m or more.
-
Hardened cybersecurity: Axis Edge Vault with secure boot, signed OS, encrypted storage, and FIPS 140-3 Level 3 certified hardware modules.
Ideal Use Cases
- Indoor retail environments requiring behavioral tracking and advanced analytics.
- Corporate offices and sensitive areas needing enhanced cybersecurity and privacy controls (AXIS Live Privacy Shield.
- Healthcare and education facilities monitoring with audio-event detection.
- Critical infrastructure sites needing reliable AI classification and tamper-resistant hardware (IK10 rated.
- Smart building deployments requiring real-time metadata and multi-stream output (up to 20 unique streams.
Technical Specifications
-
Image Sensor: 1/2.8" progressive scan RGB CMOS.
-
Resolution: Up to 1920 x 1080 at 50/60 fps.
-
Lens: 3.4–9.8 mm varifocal, remote zoom/focus, P-Iris.
-
Minimum Illumination: 0.08 lux color, 0.02 lux B/W, 0 lux with IR.
-
IR Range: 40 m or more via OptimizedIR.
-
Video Compression: H.264, H.265, AV1, Motion JPEG with Zipstream.
-
Analytics: Object Analytics, Audio Analytics, Image Health Analytics
-
Cybersecurity: Axis Edge Vault, Secure Boot, Secure Keystore.
-
Ingress Rating: IP54, IK10 impact protection.
-
Power: PoE IEEE 802.3af/at, max 10 W.
Upgrade to Next-Level Indoor Surveillance
Enhance your security infrastructure with advanced analytics, superior imaging, and hardened protection, order the AXIS P3285-LV Dome Camera now for unmatched indoor surveillance precision.
