[shortdesc] 5MP indoor dome, 3–8.5mm varifocal lens, IR night vision 40 m (131 ft, PoE/PoE+ power, IK10-rated housing, edge analytics [/shortdesc]
[properties]
| Brand |
Axis Communications |
| Model |
AXIS P3287-LV |
| Product Type |
5MP Indoor Network Dome Camera |
| Form Factor |
Fixed dome, indoor |
| Image Sensor |
1/2.8" progressive scan RGB CMOS |
| Effective Resolution |
5 megapixel; up to 2560 × 1440 video |
| Lens Type |
3 to 8.5 mm varifocal, P-Iris, auto iris |
| Maximum Aperture |
f/1.38 to f/2.58 |
| Day/Night Function |
Day & night with IR-cut filter |
| Minimum Illumination |
0.1 lux color; 0.03 lux B/W (F1.38, 50 IRE; 0 lux with IR |
| Infrared Illumination |
850 nm IR LEDs; range up to 40 m (131 ft |
| Field of View (H × V |
Horizontal 104° to 34°; vertical 76° to 26° |
| Pan / Tilt / Rotate |
Pan −190° to 190°; tilt −50° to 80°; rotate −95° to 95° |
| Network Interface |
10/100 Ethernet (RJ45 LAN/power |
| Power & PoE |
PoE IEEE 802.3af / 802.3at (PoE+ Class 3 |
| Power Consumption |
Approx. 4.7 W (IR off; up to 12.6 W (heater and IR on |
| Local Storage |
microSD / microSDHC / microSDXC card slot |
| System Memory |
2 GB RAM; 8 GB flash |
| Operating Conditions |
0 to 50 °C (32 to 122 °F; 10–85% humidity |
| Storage Conditions |
−40 to 65 °C (−40 to 149 °F; 5–95% humidity |
| Impact Protection |
Vandal-resistant, IK10 |
| Environmental Protection |
Dust- and water-resistant (IP66, vandal/ingress proof |
| Housing Material |
Plastic and polycarbonate |
| Dimensions (W × H × D |
149 × 107 × 149 mm (5.9 × 4.2 × 5.9 in |
| Weight |
820 g (1.8 lb |
[/properties]
[specifications]
| DORI (Detect / Observe / Recognize / Identify |
Detect 60.0–170.1 m; observe 24.1–67.1 m; recognize 11.9–34.1 m; identify 6.1–17.1 m (with 3–8.5 mm lens |
| Shutter Speed / SNR |
1/30500 to 2 s; signal-to-noise ratio approx. 55 dB |
| Supported Video Resolutions |
2592 × 1944; 2560 × 1440; 1920 × 1200 |
| Max Frame Rate |
Up to 30 fps at 2560 × 1440 |
| Video Compression |
H.264, H.265, MJPEG; Axis Zipstream for optimized bitrate |
| Streaming & Profiles |
Multiple configurable streams; ONVIF Profiles S, G, M and T supported |
| Focus & Zoom |
Motorized varifocal lens with remote focus and remote zoom; up to 2.8× optical zoom; minimum focus distance approx. 1.0 m (3.3 ft |
| Image Enhancements |
Forensic WDR, Lightfinder 2.0, defogging, digital PTZ, image rotation, corridor mode, brightness/contrast/sharpness control |
| Minimum Illumination (Detail |
0.1 lux color; 0.03 lux B/W (F1.38, 50 IRE; 0 lux with IR illumination |
| Network Protocols |
Supports IPv4/IPv6, HTTP/HTTPS, FTP, SMTP, DHCP, DNS, NTP, SNMP, SSH, TLS and others for IP video and management |
| Security Features |
HTTPS encryption, IEEE 802.1X, digest authentication, Axis Edge Vault, secure boot, signed firmware and video, user access log |
| Storage Options |
Onboard microSD slot plus external NAS or cloud storage |
| Analytics & Applications |
Axis Object Analytics, video motion detection, human and vehicle detection, people counting, scene change and sound classification, virtual-line crossing |
| Installation Aids |
Level grid, pixel counter, remote zoom/focus, straighten image, up to seven individually cropped view areas |
| Alarm I/O & Events |
1 alarm input / 1 alarm output; supports event-triggered recording, notifications and alarms |
| Audio |
No built-in microphone; simplex audio supported |
| Supported Languages |
Interface languages include English, German, French, Spanish, Italian, Portuguese, Russian, Chinese (simplified/traditional, Japanese, Korean, Turkish and others |
| Certifications |
Conforms to international safety and EMC standards including CE, FCC, UL, RoHS and TAA requirements |
[/specifications]
[accesories]
| Included |
AXIS P3287-LV camera; drill template; terminal block connector(s; connector guard; cable gasket(s; owner authentication key |
[/accesories]

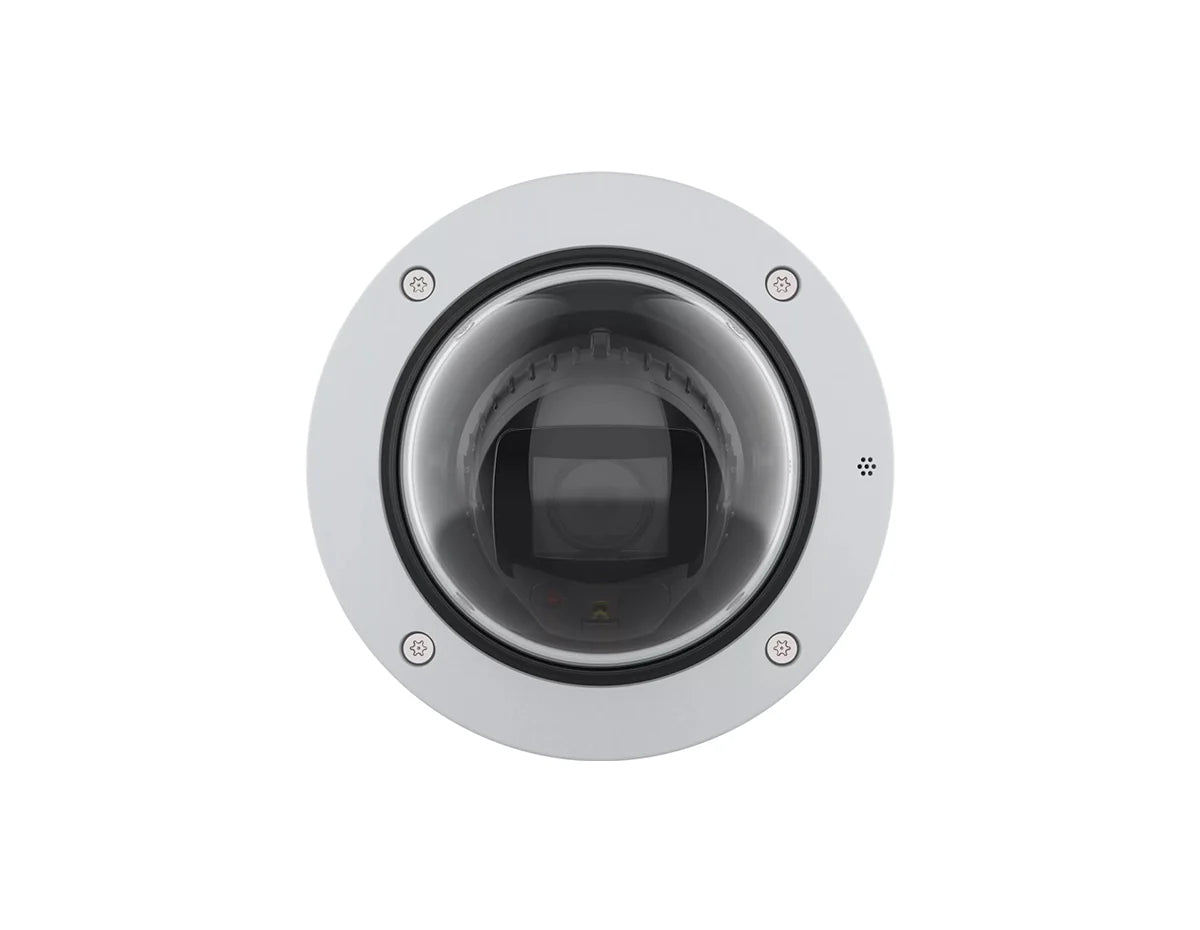

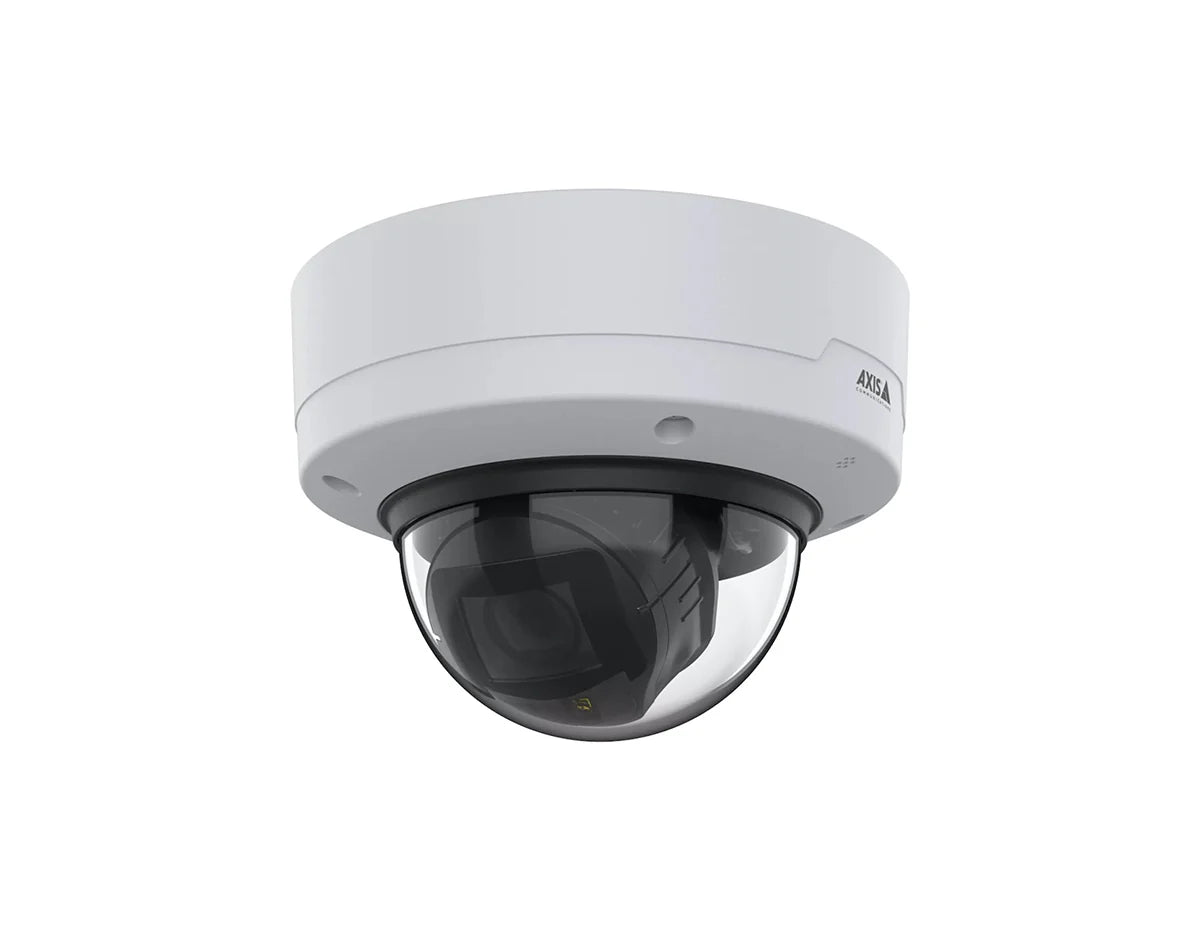

High-Resolution Indoor Dome with Smart Edge Analytics
The Axis P3287-LV 5MP Indoor Network Dome Camera delivers detailed QHD video for demanding indoor surveillance, combining 5MP resolution with powerful IR night vision up to 40 m (131 ft. With its varifocal lens, vandal-resistant IK10 housing, and PoE/PoE+ support, this TAA-compliant dome is ideal for critical sites that require reliable, always-on monitoring.
Key Benefits & Features
-
5MP QHD imaging: Capture sharp 2560 × 1440 video at up to 30 fps for clear identification in busy indoor areas.
-
Flexible 3–8.5mm varifocal lens: Adjust the horizontal field of view from wide 104° coverage to a tight 34° view for focused monitoring.
-
IR night vision to 40 m (131 ft: Built-in IR illumination and true day/night functionality maintain usable images even in complete darkness.
-
Advanced Axis analytics: Onboard analytics such as human and vehicle detection, line-crossing, and motion detection enhance situational awareness and event-based recording.
-
Durable, secure design: IK10 impact-rated, dust- and water-resistant (IP66 housing with secure boot, encrypted storage, and TAA compliance for regulated environments.
Ideal Use Cases
- Corporate offices, reception areas, and corridors requiring high-detail indoor monitoring.
- Banks, retail stores, and shopping centers needing reliable coverage of entrances, cash zones, and aisles.
- Healthcare, education, and public buildings with compliance-focused security standards.
- Transportation hubs, terminals, and exposed lobbies that demand vandal-resistant hardware.
- Government and critical infrastructure sites requiring TAA-compliant network surveillance cameras.
Technical Specifications
-
Image sensor: 1/2.8" progressive scan RGB CMOS, 5MP effective resolution.
-
Maximum resolution / frame rate: Up to 2560 × 1440 at 30 fps.
-
Lens: 3–8.5mm varifocal, F1.38–2.58, horizontal FOV 104°–34°.
-
Day/night performance: IR-cut filter, minimum illumination 0.1 lux color, 0 lux with IR.
-
IR illumination: Optimized IR LEDs, range up to 40 m (131 ft.
-
Video compression: H.264, H.265, and MJPEG with Axis Zipstream technology.
-
Power: PoE 802.3af / PoE+ 802.3at, typical consumption 4.7–12.6 W depending on IR and heater usage.
-
Onboard storage: microSD/microSDHC/microSDXC slot, 2 GB RAM, 8 GB flash.
-
Environmental & protection: IK10 impact-resistant, dust- and water-resistant (IP66 housing for demanding indoor locations.
-
Operating conditions: 0 to 50 °C (32 to 122 °F, 10–85% relative humidity (non-condensing.
-
Compliance: TAA-compliant network surveillance camera.
Secure Your Critical Indoor Spaces With Axis P3287-LV
Strengthen your video security posture with high-detail 5MP imaging, smart analytics, and a robust dome built for professional installations. Order today and deploy trusted Axis surveillance where it matters most.
