[shortdesc]Purpose-tuned 1080p license plate camera with 7–137 mm varifocal lens, OptimizedIR up to 50 m, Forensic WDR, Lightfinder 2.0, and robust IP66/IK10 design for plate capture up to 250 km/h at distances up to 100 m.[/shortdesc]

[properties]

Model	AXIS Q1800-LE License Plate Camera (03107-001
Product Type	License plate camera for 3rd party LPR software
Image Sensor	1/2.8" progressive scan RGB CMOS, pixel size 2.9 µm
Lens	Varifocal 7–137 mm, F1.5–4.0; horizontal FOV 38°–2.3°; vertical FOV 22°–1.3°; minimum focus distance 1.2 m (3.9 ft; remote zoom and focus; P-Iris control; thread for 62 mm filters (max thickness 5 mm
Day and Night	Automatic IR-cut filter in day mode; IR-pass filter 720 nm in night mode
Minimum Illumination	Color: 0.06 lux at 50 IRE, F1.5; B/W: 0.01 lux at 50 IRE, F1.5; 0 lux with IR illumination on
Shutter Speed	1080p @ 25/30 fps (WDR: 1/37000 s to 2 s; 1080p @ 50/60 fps: 1/71500 s to 2 s; 1080p @ 90 fps: 1/111000 s to 2 s
License Plate Capture Range	Day: 20–100 m (66–328 ft; Night: 20–50 m (66–164 ft; night detection range up to 100 m (328 ft with optional AXIS T90D20 IR-LED Illuminator
Vehicle Speed Support	Up to 200 km/h (124 mph with optional edge analytics; up to 250 km/h (155 mph with server-based analytics
IR Illumination	OptimizedIR with 850 nm IR LEDs, adjustable angle and intensity; range 40 m (131 ft in wide FOV and 50 m (164 ft in full tele view, or more depending on scene
Video Resolution	4:3: 1400x1050 to 160x120; 16:9: 1920x1080 to 320x180
Frame Rate	With WDR: up to 25/30 fps (50/60 Hz in all resolutions; no WDR: up to 90 fps (50/60 Hz in all resolutions
WDR & Low-light Technologies	Forensic WDR up to 120 dB (scene dependent; Lightfinder 2.0; OptimizedIR; spatial (2D and temporal (3D noise reduction
System-on-Chip	ARTPEC-8 with deep learning processing unit (DLPU, 2048 MB RAM, 8192 MB Flash
Power	PoE IEEE 802.3af/802.3at Type 1 Class 3 (typical 12.6 W, max 12.95 W, no IR/heaters; PoE IEEE 802.3at Type 2 Class 4 (typical 12.6 W, max 25.5 W; 10–28 V DC (typical 11 W, max 29 W; 20–24 V AC (typical 11 VA, max 28 VA; PoE output IEEE 802.3bt Type 3 Class 6, up to PoE 802.3at Type 2 Class 4 (30 W to a second device
Connectors	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE input; RJ45 1000BASE-T PoE output; 4-pin 2.5 mm terminal block for two configurable supervised I/O (12 V DC output, max 50 mA; 3.5 mm mic/line in; DC power input
Edge Storage	microSD/microSDHC/microSDXC card support with SD card encryption (AES-XTS-Plain64 256 bit; recording to NAS
Operating Conditions	Temperature: -40 °C to 60 °C (-40 °F to 140 °F; maximum temperature according to NEMA TS 2 (2.2.7: 74 °C (165 °F; humidity: 10–100% RH (condensing
Storage Conditions	Temperature: -40 °C to 65 °C (-40 °F to 149 °F; humidity: 5–95% RH (non-condensing
Environmental Ratings	IEC/EN 60529 IP66; NEMA 250 Type 4X; IEC/EN 62262 IK10 (body, IK08 (glass; NEMA TS 2 (2.2.7–2.2.9; various IEC 60068-2 tests
Casing	IK10 impact-resistant aluminum enclosure with integrated dehumidifying membrane; IK08 impact-resistant glass front window; color grey NCS S 5502-B and black NCS S 9000-N
Mounting	Mounting bracket with junction box holes (double-gang, single-gang, 4" square, 4" octagon; ¾" (M25 conduit side entries
Dimensions	Effective Projected Area (EPA: 0.054 m² (0.58 ft²; see dimension drawing in datasheet for full dimensions
Weight	3200 g (7.05 lb
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Sustainability	PVC free; BFR/CFR free per JEDEC/ECA JS709; RoHS compliant; REACH compliant; renewable carbon-based plastic content 60% (1% recycled, 59% bio-based; screened for conflict minerals

[/properties]

[specifications]

Camera & Optics	1/2.8" progressive scan RGB CMOS sensor, 2.9 µm pixel size; varifocal 7–137 mm F1.5–4.0 lens; H/V field of view 38°–2.3° / 22°–1.3°; minimum focus distance 1.2 m (3.9 ft; remote zoom and focus; P-Iris control; automatic IR-cut filter (day; IR-pass filter 720 nm (night; camera adjustment: pan ±180°, tilt 0 to -90°, roll -90 to 270°
License Plate Capture	Detection range: day 20–100 m (66–328 ft; night 20–50 m (66–164 ft; night detection up to 100 m (328 ft with optional AXIS T90D20 IR-LED Illuminator; OptimizedIR with 850 nm LEDs, adjustable angle and intensity; range 40 m (131 ft in wide FOV and 50 m (164 ft in full tele view or more depending on scene; vehicle speed support up to 200 km/h (124 mph with optional edge analytics and up to 250 km/h (155 mph with server-based analytics; coverage: single lane with optional edge analytics, two lanes with server-based analytics; mounting height up to 10 m (33 ft; distance from road up to 10 m (33 ft; automatic tilt and roll detection; built-in license plate capture assistant for optimized video settings
System-on-Chip & Compute	ARTPEC-8 system-on-chip with deep learning processing unit (DLPU; 2048 MB RAM; 8192 MB Flash
Video Compression & Streaming	H.264 (MPEG-4 Part 10/AVC Baseline, Main, High Profiles; H.265 (MPEG-H Part 2/HEVC Main Profile; Motion JPEG; resolutions 4:3 from 1400x1050 to 160x120 and 16:9 from 1920x1080 to 320x180; with WDR up to 25/30 fps (50/60 Hz in all resolutions; without WDR up to 90 fps (50/60 Hz in all resolutions; up to 20 unique and configurable video streams; Axis Zipstream in H.264 and H.265; controllable frame rate and bandwidth; VBR/ABR/MBR (H.264/H.265; low latency mode; video streaming indicator; signal-to-noise ratio >55 dB
WDR & Image Processing	Forensic WDR up to 120 dB depending on scene; image settings include saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, barrel distortion correction, compression, rotation (0°, 90°, 180°, 270° including corridor format, mirroring, text and image overlay, dynamic text and image overlay, polygon privacy mask, target aperture; scene profiles for license plate; processing: Axis Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR; noise reduction via spatial (2D and temporal (3D filters
Audio	Two-way audio (half duplex; automatic gain control; 10-band graphic equalizer for audio input; speaker pairing; spectrum visualizer (via ACAP; audio input via microphone pairing, external unbalanced microphone input with optional 5 V mic power, digital input with optional 12 V ring power; unbalanced line input; audio output via speaker pairing; encoding: 24-bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz with configurable bit rate
Network Protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II, DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, secure syslog (RFC 3164/5424, UDP/TCP/TLS, link-local address (ZeroConf
System Integration & VMS	Open API for software integration including VAPIX, metadata, and AXIS Camera Application Platform (ACAP; one-click cloud connection; ONVIF Profile G, M, S, T; compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis partners; onscreen controls include video streaming indicator, day/night shift, image stabilization, defog, autofocus, privacy masks, WDR, IR illumination, media clip; edge-to-edge support for microphone, radar, and speaker pairing
Events & Actions	Event conditions include device status (operating temperature thresholds, IP address changes, network lost, system ready, digital audio status, edge storage status, I/O (digital input, manual trigger, virtual input, MQTT stateless, scheduled/recurring events, and video conditions (average bitrate degradation, day/night mode, tampering; event actions include day/night mode, defog, I/O toggling, IR lighting control, sending images (FTP/HTTP/SFTP, MQTT publish, notifications (HTTP/HTTPS/TCP/email, overlay text, recordings (SD card or network share, SNMP traps, and video clip export via FTP/HTTP/SFTP; WDR mode control
Installation Aids	Pixel counter; remote zoom and focus; level grid; leveling assistant; traffic camera installation assistance; camera automatically detects tilt and roll angle; built-in license plate capture assistant
Analytics & Applications	Included: AXIS Object Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Speed Monitor, AXIS Video Motion Detection, active tampering alarm, audio detection; supported: AXIS License Plate Verifier; AXIS Camera Application Platform support for third-party applications. AXIS Object Analytics: object classes humans and vehicles (cars, buses, trucks, bikes, other; scenarios include line crossing, object in area, time in area, crossline counting, occupancy in area, motion in area, motion line crossing; up to 10 scenarios; features include visualization of triggered objects with trajectories, color-coded bounding boxes and tables, polygon include/exclude areas, perspective configuration, ONVIF Motion Alarm events. AXIS Image Health Analytics: tampering detection (blocked/redirected image, image degradation detection (blurred/underexposed image with sensitivity and validation period. AXIS Scene Metadata: object classes humans, faces, vehicles (cars, buses, trucks, bikes, license plates with attributes for vehicle and clothing color, confidence, position
Approvals & EMC	Product markings: UL/cUL, BIS, UKCA, CE, KC, VCCI, RCM; TAA compliant supply chain. EMC: CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2; RCM AS/NZS CISPR 32 Class A; ICES(A/NMB(A; VCCI Class A; KS C 9835, KS C 9832 Class A; FCC Part 15 Subpart B Class A; IEC 62236-4 (railway
Safety & Environmental Tests	Safety: CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC/EN 62471 risk group exempt, IS 13252. Environment: IEC 60068-2-1, -2-2, -2-6, -2-14, -2-27, -2-78; IEC/EN 60529 IP66; IEC/EN 62262 IK10 body, IK08 glass; NEMA 250 Type 4X; NEMA TS 2 (2.2.7–2.2.9
Network & Cybersecurity	Network: NIST SP500-267. Cybersecurity: ETSI EN 303 645, BSI IT Security Label, FIPS 140. Edge security: signed OS, brute force delay protection, digest authentication and OAuth 2.0 (Client Credential Flow / OpenID Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 Level 1; hardware-based Axis Edge Vault platform including TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2, secure element (CC EAL 6+, system-on-chip security (TEE, Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256 bit. Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2, IEEE 802.1AE (MACsec PSK/EAP-TLS, IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS, X.509 certificate PKI, host-based firewall
Storage & Edge Recording	microSD/microSDHC/microSDXC support; SD card encryption (AES-XTS-Plain64 256 bit; recording to NAS; edge storage event monitoring for recording ongoing, storage disruption, and storage health issues
DORI Performance	DORI (detect/observe/recognize/identify distances at wide/tele: Detect (25 px/m: 96.7 m / 1884.2 m; Observe (63 px/m: 38.4 m / 747.7 m; Recognize (125 px/m: 19.3 m / 376.8 m; Identify (250 px/m: 9.7 m / 188.4 m. Values calculated per EN-62676-4 using center pixel density and considering lens distortion; real-world results depend on motion, compression, lighting, and focus
System Tools	Supported by AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator

[/specifications]

[accesories]

Included	Camera, installation guide, terminal block connector, RJ45 cable, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards

[/accesories]

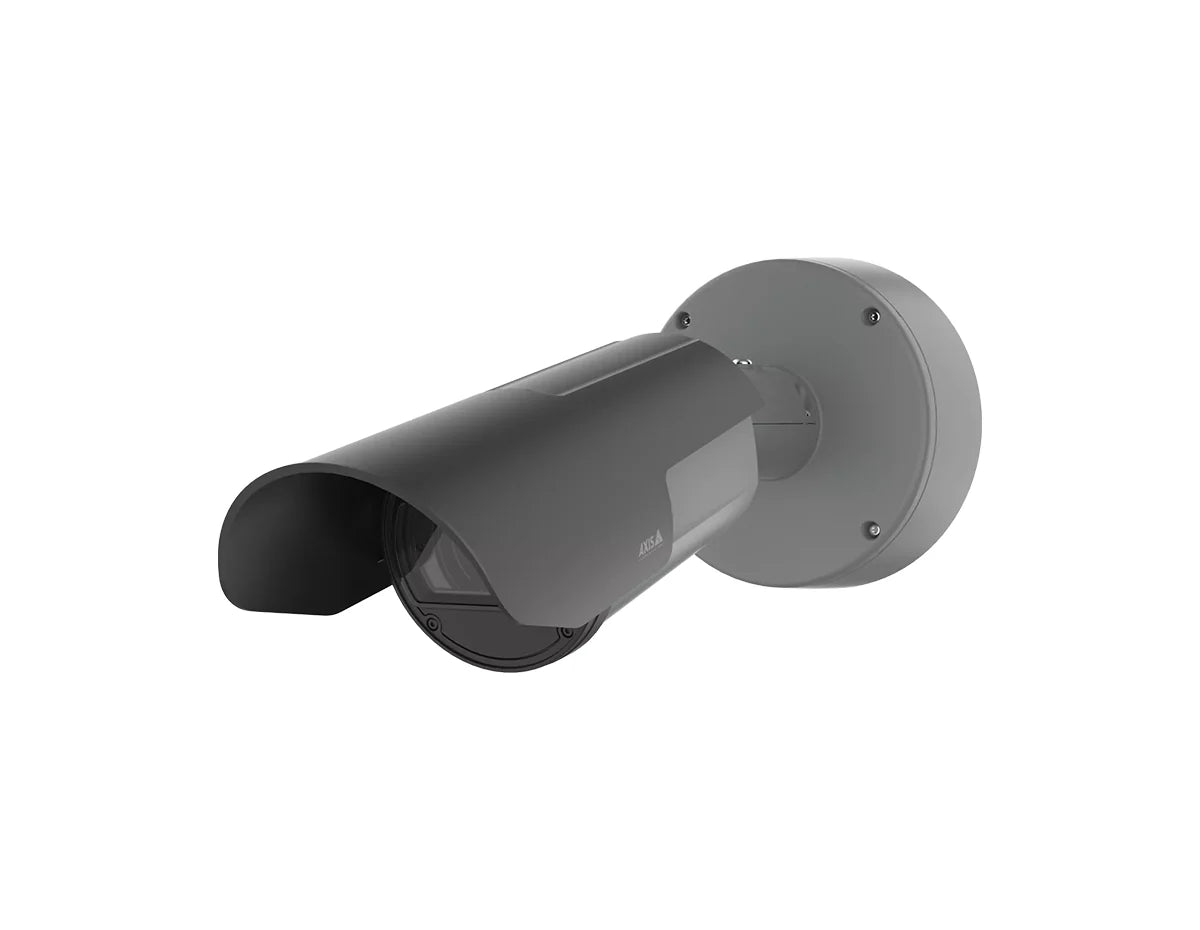

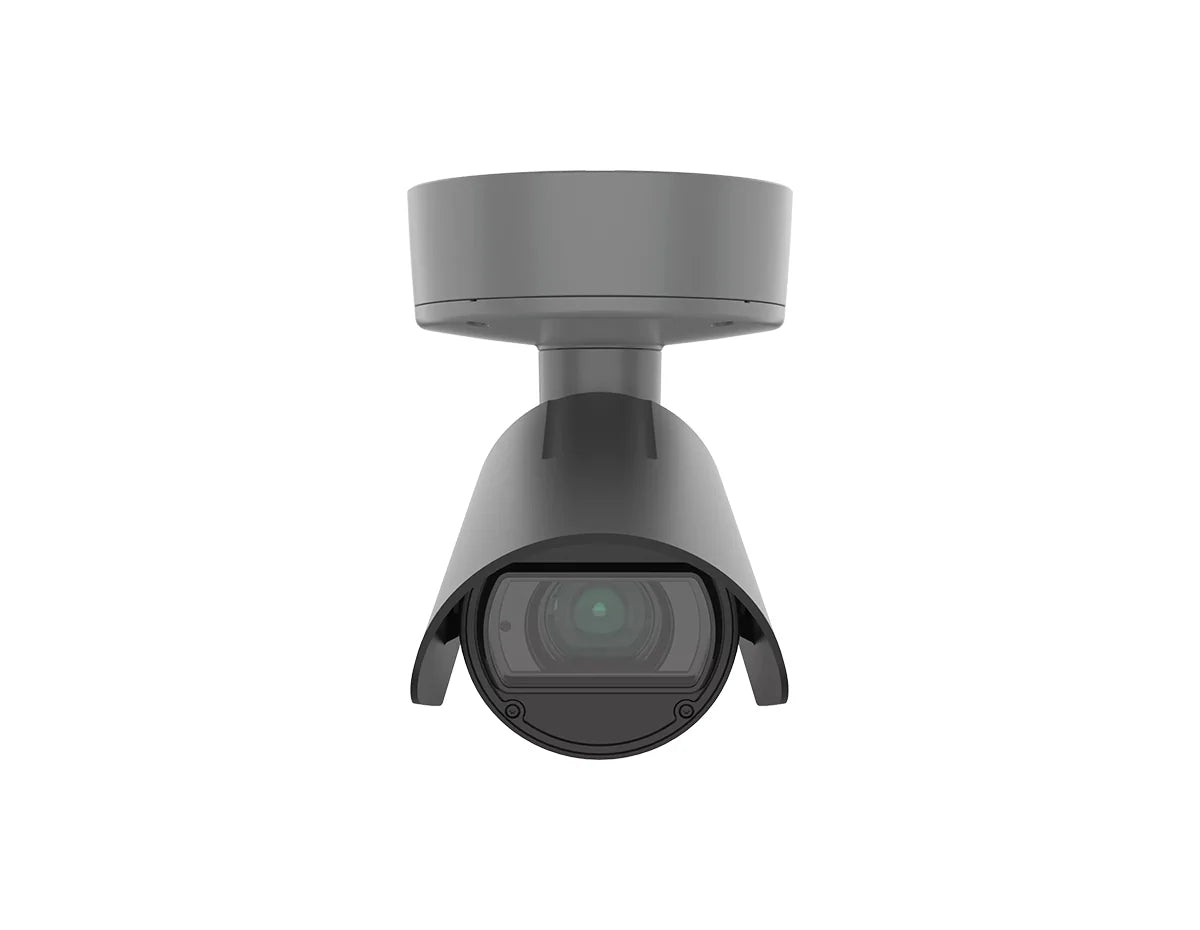

The AXIS Q1800-LE License Plate Camera (03107-001 is a purpose-tuned, high-performance license plate camera designed for accurate plate capture around the clock. With a 7–137 mm varifocal lens, Forensic WDR, Lightfinder 2.0, and OptimizedIR, it delivers clear, readable plates across a wide range of distances and lighting conditions, including complete darkness.

Built on the ARTPEC-8 system-on-chip with deep learning processing, this camera is fully compatible with third-party LPR software and integrates seamlessly with leading video management systems. Its rugged, IP66- and NEMA 4X-rated aluminum enclosure with IK10 body protection ensures reliable operation in harsh weather, while extensive cybersecurity features help safeguard your system end to end.

High-speed, long-range license plate capture with robust protection

Accurate plate capture at speed: Capture vehicle plates at speeds up to 250 km/h (155 mph and distances up to 100 m (328 ft, supporting demanding traffic and monitoring scenarios.
Optimized for day and night: Automatic IR-cut filter, IR-pass night filter, and OptimizedIR provide reliable plate visibility from 20–100 m by day and 20–50 m by night, with extended range using optional IR illuminators.
Powerful image quality tools: Forensic WDR up to 120 dB, Lightfinder 2.0, local contrast, tone mapping, and advanced noise reduction maintain forensic detail in challenging light and weather.
Deep learning-enabled platform: ARTPEC-8 with DLPU and AXIS Object Analytics enables rich metadata, advanced object classification, and flexible rule-based event handling.
Rugged outdoor design: IP66 and NEMA 4X ratings, IK10 body and IK08 glass, wide operating temperature range, and extensive environmental testing ensure dependable operation in tough conditions.
Flexible power and connectivity: Multiple PoE classes, DC/AC power options, and PoE output for a second device simplify deployment and system design.
Hardened cybersecurity: Axis Edge Vault, signed OS and video, secure boot, encrypted filesystem, and comprehensive network security protocols help protect devices and data.

Ideal use cases

High-speed vehicle monitoring where accurate license plate capture is required at up to 250 km/h and long detection distances.
Single-lane or two-lane monitoring scenarios using optional edge analytics or server-based analytics for flexible coverage.
Outdoor installations exposed to harsh weather, vibration, and temperature extremes requiring IP66, NEMA 4X, and IK10-rated equipment.
Sites needing deep integration with third-party LPR and VMS platforms via open APIs and ONVIF Profiles G, M, S, and T.
Deployments with strict cybersecurity and compliance requirements, leveraging Axis Edge Vault and certified security features.

Technical specifications summary

Image sensor: 1/2.8" progressive scan RGB CMOS, 2.9 µm pixel size
Lens: Varifocal 7–137 mm, F1.5–4.0; H/V FOV 38°–2.3° / 22°–1.3°; min focus 1.2 m (3.9 ft; remote zoom and focus; P-Iris
License plate capture: Day 20–100 m; night 20–50 m; up to 250 km/h (155 mph with server-based analytics; OptimizedIR 40–50 m range
Video: H.264, H.265, Motion JPEG; up to 1080p at 90 fps (no WDR; up to 1080p at 25/30 fps with Forensic WDR
Imaging technologies: Forensic WDR (up to 120 dB, Lightfinder 2.0, OptimizedIR, 2D/3D noise reduction, advanced image settings
Audio: Two-way audio (half duplex with multiple codecs, mic/line in, audio analytics, and speaker pairing
Analytics: AXIS Object Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Speed Monitor, AXIS Video Motion Detection, tampering and audio detection; supports AXIS License Plate Verifier
Power: PoE 802.3af/at input, DC 10–28 V, AC 20–24 V, and PoE output 802.3bt Type 3 Class 6 to external device
Ruggedness: IP66, NEMA 4X, IK10 (body, IK08 (glass, -40 °C to 60 °C operating range, extensive IEC 60068 and NEMA TS 2 testing
Cybersecurity: Axis Edge Vault, TPM 2.0, secure element, signed OS and video, secure boot, encrypted filesystem, IEEE 802.1X, MACsec, HTTPS/HSTS, TLS v1.2/v1.3
Edge storage: microSD/microSDHC/microSDXC support with encryption and NAS recording
