| Camera & Imaging |
Image sensor: 1/1.8" progressive scan RGB CMOS, 2.9 µm pixel size.
Day/night: Automatic IR-cut filter.
Minimum illumination (51 mm lens: Color: 0.04 lux at 50 IRE, F1.7; B/W: 0 lux at 50 IRE, F1.7; 0 lux with IR on.
Shutter speed: 1/49500 s to 2 s.
Camera adjustment (51 mm lens: Pan ±180°, tilt -42° to +89°, rotation ±180°. |
| Lens & Optics (51 mm variant |
Lens: Varifocal 13–51 mm, F1.7–2.1, P-Iris control, IR-corrected, remote zoom and focus.
Optical zoom: 3.8×.
Field of view: Horizontal 33°–9°; Vertical 18°–5°.
Minimum focus distance: 2.60 m (8.53 ft. |
| Video |
Resolutions: 16:9 up to 2688×1512; 16:10 up to 1280×800; 4:3 up to 2016×1512.
Frame rates: Up to 25/30 fps with Forensic WDR; up to 100/120 fps without WDR (all resolutions.
Codecs: H.264 (Baseline/Main/High, H.265 (Main, AV1, Motion JPEG.
Zipstream: Axis Zipstream for H.264, H.265, and AV1 with VBR/ABR/MBR and low-latency mode.
Multi-view: Up to 7 individually cropped view areas.
Signal-to-noise ratio: >55 dB.
WDR: Forensic WDR up to 120 dB depending on scene. |
| Image Settings & PTZ |
Image settings: Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode/zones, defog, barrel distortion correction, rotation (0°/90°/180°/270° including corridor format, mirroring, dynamic text and image overlay, overlay widget, privacy masks, lock aperture, target aperture.
PTZ: Digital PTZ, optical zoom, presets, limited guard tour, control queue, on-screen directional indicator, tour recording (up to 10, max 16 minutes each, up to 100 guard tours. |
| IR Illumination (51 mm lens |
Technology: OptimizedIR with power-efficient, long-life 850 nm IR LEDs.
Range: Up to 70 m (230 ft or more depending on the scene for the 51 mm lens. |
| Analytics & Applications |
Included analytics: AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection.
Supported analytics: AXIS Perimeter Defender, AXIS License Plate Verifier; support for AXIS Camera Application Platform (ACAP and third-party applications.
AXIS Object Analytics: Detects and classifies humans and vehicles (cars, buses, trucks, bikes, other with scenarios such as line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoring (BETA, motion in area, motion line crossing, up to 10 scenarios with perspective and include/exclude areas.
AXIS Audio Analytics: Sound pressure level, adaptive audio detection, audio classification for scream, shout, glass break, speech; transmits metadata only.
AXIS Image Health Analytics: Tampering and image degradation detection (blocked/redirected/blurred/underexposed image with configurable sensitivity and validation period.
AXIS Scene Metadata: Metadata for humans, faces, vehicles, license plates, and audio level. |
| Network & System Integration |
Protocols: IPv4, IPv6 USGv6, HTTP/HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, secure syslog, link-local address (ZeroConf.
APIs: Open API including VAPIX, metadata, ACAP; ONVIF Profiles G, M, S, T.
VMS compatibility: AXIS Camera Station Edge/Pro/5 and partner VMS solutions. |
| Event Management |
Event triggers: Analytics events, audio analytics (level, glass break, scream, shout, device status (temperature, casing open, fan failure, IP address changes, network loss, shock, edge storage status, I/O (inputs, manual, virtual, MQTT, schedules, video events (bitrate degradation, day/night mode.
Event actions: Day/night mode, guard tours, I/O control, IR and status LED control, MQTT publish, HTTP/HTTPS/TCP/email notifications, text overlays, PTZ presets/tours, pre/post-alarm buffering, SD/NAS recording, erase configuration, SNMP traps, file upload via FTP/SFTP/HTTP/HTTPS. |
| Edge Computing & Security |
SoC: ARTPEC-9 with deep learning processing unit (DLPU.
Edge security: Signed OS, brute force delay protection, password protection, Axis Cryptographic Module (FIPS 140-2 Level 1.
Axis Edge Vault: Secure keystore (secure element, CC EAL 6+, FIPS 140-3 Level 3, system-on-chip security (TEE, Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256 bit.
Network security: IEEE 802.1X, MACsec, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS, X.509 PKI, host-based firewall. |
| Storage |
Local storage: microSD/microSDHC/microSDXC card support with SD card encryption (AES-XTS-Plain64 256 bit.
Network storage: Recording to NAS; SD/NAS recommendations available from Axis. |
| Power & Connectors |
Power: PoE IEEE 802.3at Type 2 Class 4, max 25.5 W, typical 6.3 W (heater off, IR off; 8–28 V DC, max 25.5 W, typical 6.2 W (heater off, IR off.
Connectors: Shielded RJ45 Ethernet with PoE; DC power input terminal block; 4-pin I/O terminal block.
I/O functionality: Two configurable supervised inputs/digital outputs with 12 V DC output (max 50 mA. |
| Environmental & Mechanical |
Operating temperature: -50 °C to 55 °C (-58 °F to 131 °F; maximum temperature per NEMA TS 2 (2.2.7: 74 °C (165 °F; start-up temperature: -40 °C (-40 °F.
Humidity (operating: 10–100% RH (non-condensing.
Storage: -40 °C to 65 °C (-40 °F to 149 °F, 5–95% RH (non-condensing.

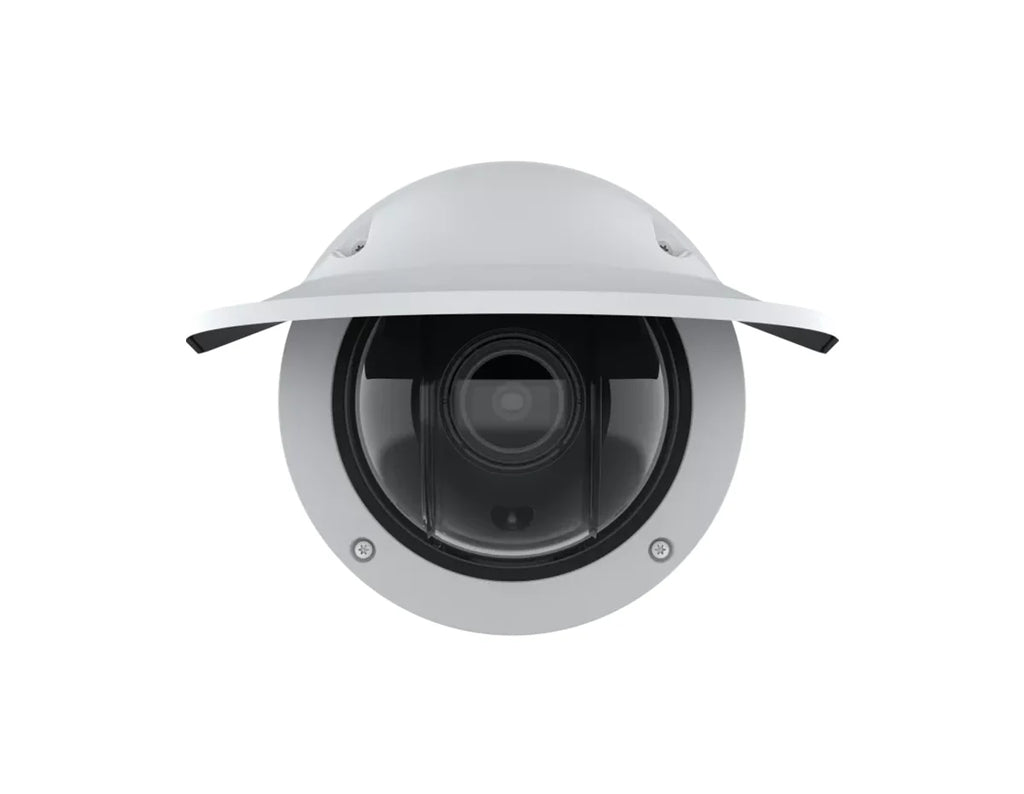

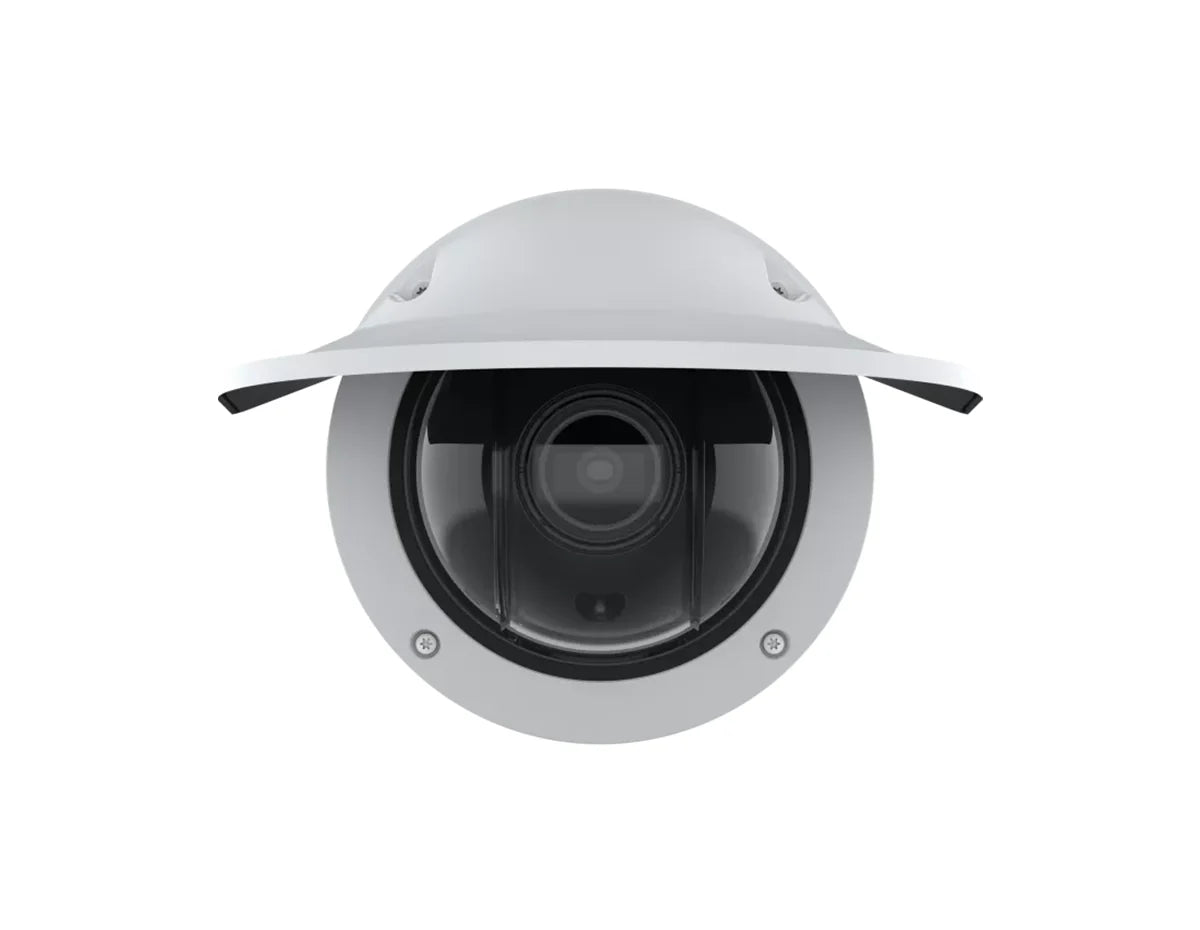

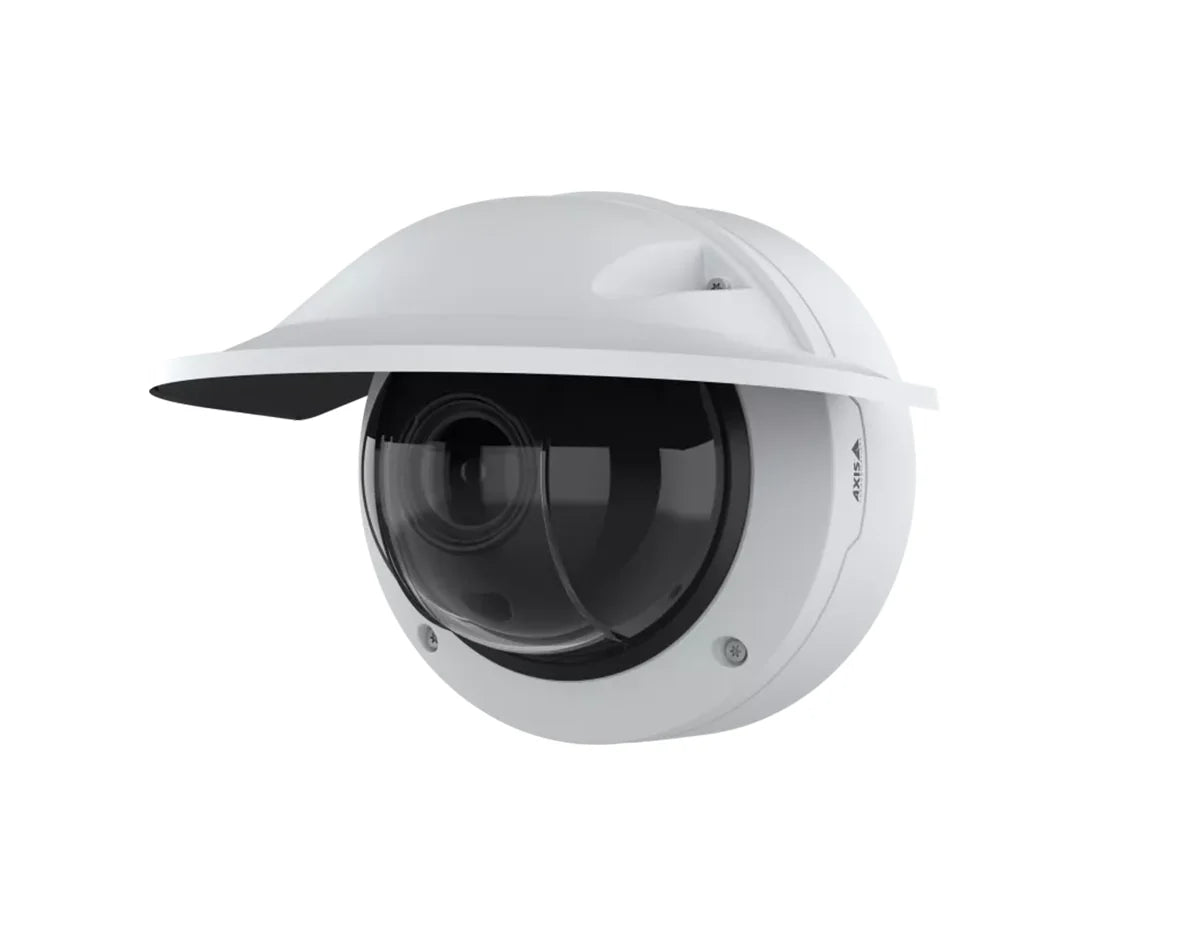

Casing: IP66/IP6K9K, NEMA 4X, IK10-rated aluminum body with polycarbonate hard-coated dome and PC/ASA weathershield; white NCS S 1002-B.
EPA: 0.041 m² (0.44 ft².
Weight: 2360 g (5.2 lb. |
| DORI Performance (51 mm lens |
Detect (25 px/m: 183 m (600 ft wide, 698 m (2290 ft tele.
Observe (63 px/m: 73 m (240 ft wide, 277 m (909 ft tele.
Recognize (125 px/m: 37 m (121 ft wide, 140 m (459 ft tele.
Identify (250 px/m: 18 m (59 ft wide, 70 m (230 ft tele.
Values calculated per EN 62676-4 using pixel density in the image center; real-world results depend on scene, motion, compression, lighting, and focus. |
| Approvals & EMC |
Product markings: UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE; TAA compliant supply chain.
EMC: CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A/NMB(A, VCCI Class A, KS C 9832 Class A, KS C 9835, FCC Part 15 Subpart B Class A, IEC 62236-4.
Safety: CAN/CSA C22.2 No. 62368-1 ed.3, IEC/EN/UL 62368-1 ed.3, IEC/EN 62471 risk group exempt.
Network standard: NIST SP500-267 (network. |
| Sustainability |
Substance control: PVC free, BFR/CFR free per JEDEC/ECA JS709; RoHS compliant; REACH compliant with SCIP registration where applicable.
Materials: 38% renewable carbon-based plastic content (34% bio-based, 4% carbon-capture based; screened for conflict minerals per OECD guidelines. |
