[shortdesc]
Cisco C9200L-24PXG-2Y-A delivers 8× mGig PoE+ and 16× 1G PoE+ ports with 2× 25G uplinks, 370W PoE budget, StackWise-80 support, and advanced Layer 3 with Network Advantage.
[/shortdesc]
[properties]
| Properties |
C9200L-24PXG-2Y-A |
| Description |
Catalyst 9200L 24-port 8× mGig, 16× 1G, 2× 25G, PoE+, Network Advantage |
| Product Family |
Catalyst 9200L |
| Product Type |
Ethernet Switch |
| Number of Ports |
24 |
Downlinks total 10/100/1000
or PoE+ copper ports |
24 ports full PoE+ (8 mGig up to 10G, 16 × 1G |
| Uplink configuration |
2 × 1/10/25G SFP28 fixed uplinks |
| Cisco IOS Software |
Network Advantage |
Default primary AC
power supply |
PWR-C5-600WAC |
Available PoE power with
additional secondary
power supply |
740W (with 1000W PSU |
| Fans |
Fixed redundant |
Chassis + FEP +
Fan Dimensions (HxWxD Inches |
1.73 × 17.5 × 13.8 |
[/properties]
[specifications]
| Specifications |
C9200L-24PXG-2Y-A |
| Console Ports |
RJ-45-to-DB9 cable for PC connections, USB-C console, USB Type-A |
| DRAM |
2 GB |
| Flash Memory |
4 GB |
| Switching capacity |
292 Gbps |
| Forwarding rate |
229.16 Mpps |
| MAC addresses |
16,000 |
Operating Temperature
Up to 5,000 ft (1500 m |
-5°C to +45°C |
Operating Temperature
Up to 10,000 ft (3000 m |
-5°C to +40°C |
| Safety |
IEC 60950-1
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
Class I Equipment |
Electromagnetic compatibility
certifications |
47 CFR Part 15
CISPR 32 Class A
CNS 13438
EN 300 386*
EN 55032 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
KN 32
TCVN 7189 Class A
V-3 Class A
CISPR 35
EN 300 386*
EN 55035
KN 35
TCVN 7317 |
EMC
compliance |
FCC Part 15 (CFR 47 Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
CISPR 35
EN 55035, EN300 386*
EN 61000-3-2, EN 61000-3-3 |
Safety
compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| Environmental |
Reduction of Hazardous Substances (ROHS 5 |
[/specifications]
[accesories]
| Stacking Support |
StackWise-80 |
| Stacking bandwidth support |
80 Gbps |
| Stacking hardware |
C9200L-STACK-KIT |
Number of
members |
8 |
| Supported stack members |
Other C9200L models with same license level |
|
|
| C9200L-STACK-KIT |
Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM |
Data stack 50 cm cable (default cable with Stack Kit |
| STACK-T4-1M |
Data stack 1 m cable |
| STACK T4-3M |
Data stack 3 m cable |
[/accesories]
[specifications] [/specifications]
At a Glance
-

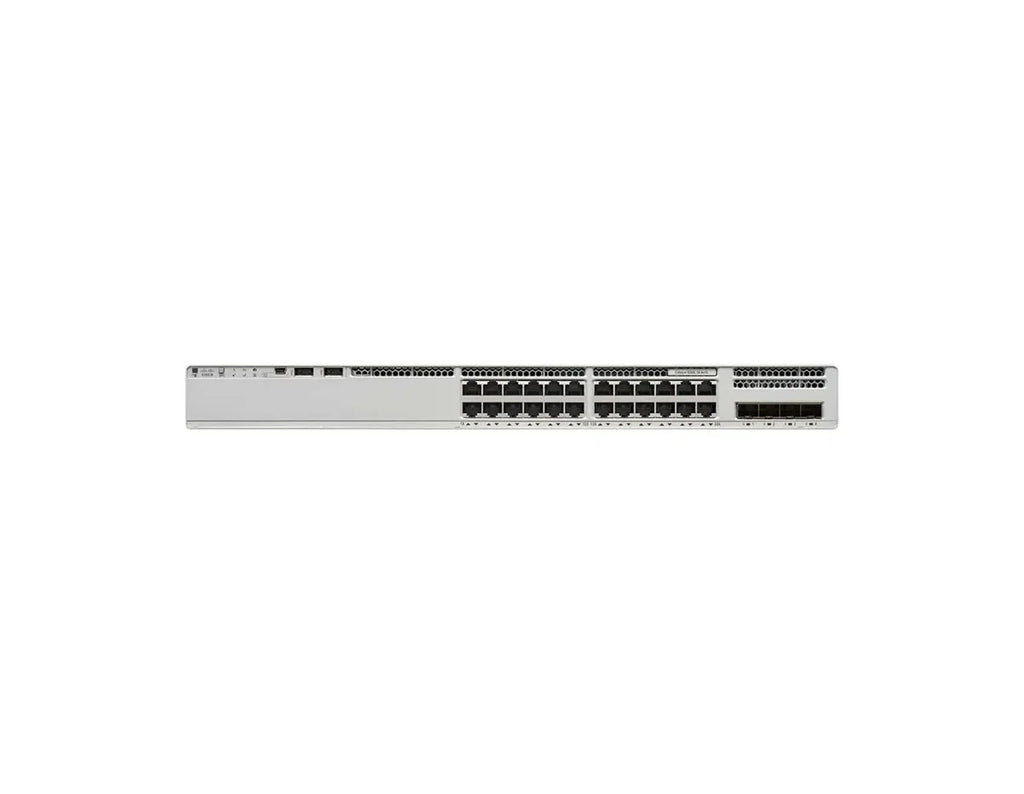

Ports: 8 × Multigigabit PoE+ & 16 × 1G PoE+
-
Uplinks: 2 × 1/10/25G SFP28 fixed uplinks
-
Stacking: StackWise-80 with 80 Gbps bandwidth
-
PoE Budget: Up to 370W (with included 600W PSU
Product Overview

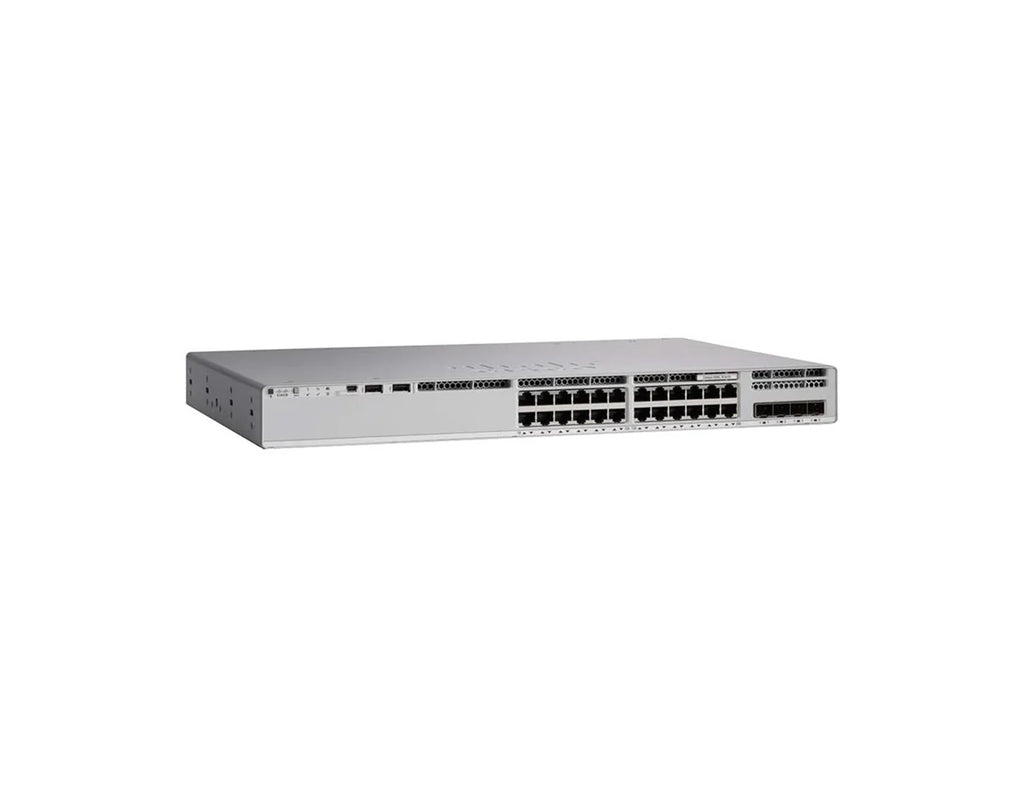

The Cisco C9200L-24PXG-2Y-A is a next-generation Layer 3 managed switch built to deliver high-speed access for modern enterprise networks. Featuring 8 Multigigabit PoE+ ports, 16 standard 1G PoE+ ports, and two fixed 25G SFP28 uplinks, this model is ideal for high-performance wireless (Wi-Fi 6/6E and endpoint aggregation.
Designed for enterprise access layers, it supports StackWise-80 technology for seamless stacking of up to 8 switches and simplifies management through Cisco IOS XE and DNA Center integration. Powered by the UADP 2.0 Mini ASIC, the switch offers consistent security, automation, and rich telemetry. This model includes the Network Advantage license, unlocking advanced routing, segmentation, and enterprise-class security capabilities.
Technical Specifications
Hardware
-
Model: C9200L-24PXG-2Y
-
Ports: 8 × mGig (up to 10G + 16 × 1G PoE+ Ethernet ports
-
Uplinks: 2 × 1/10/25G SFP28 fixed uplinks
-
Stacking Support: StackWise-80
-
Stacking Bandwidth: 80 Gbps
-

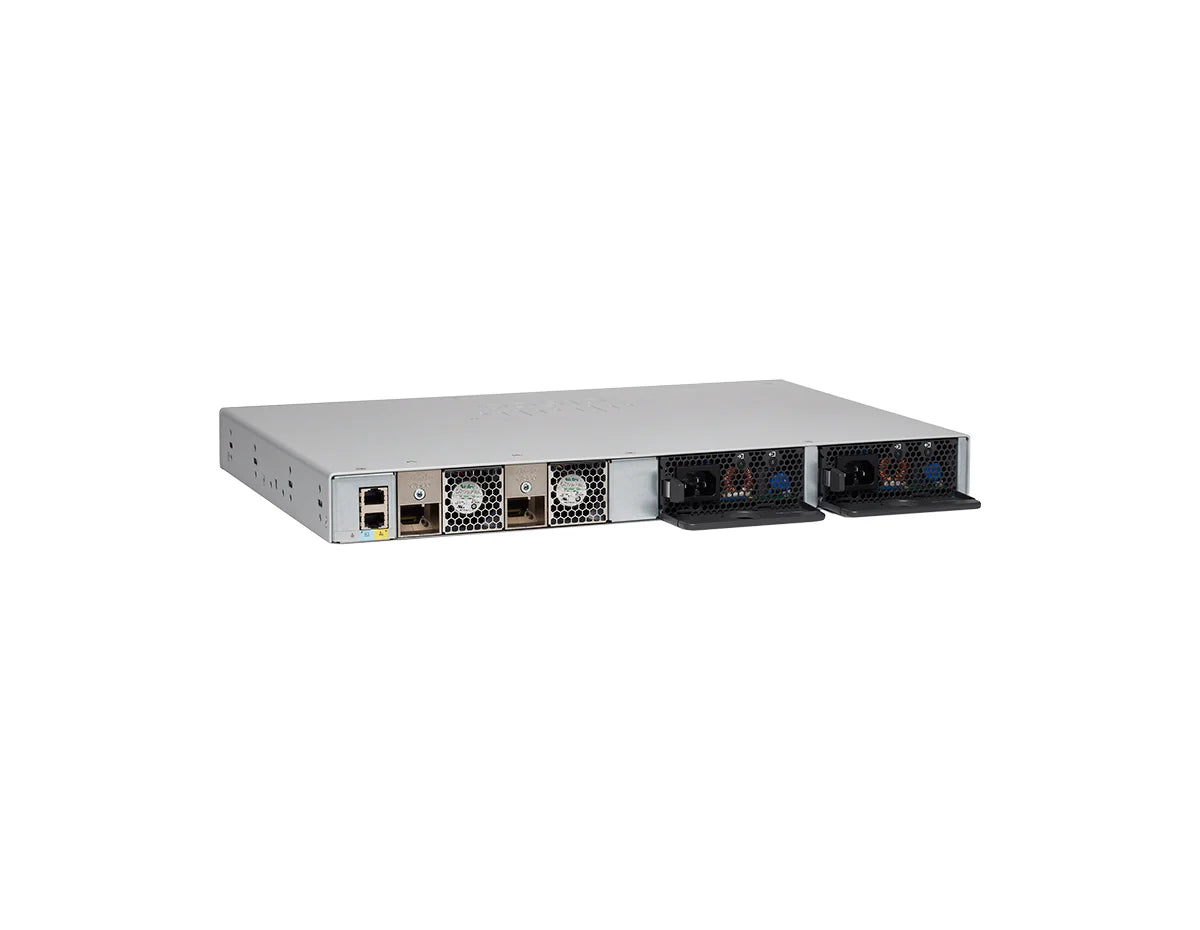

Power Supply: 1 × 600W AC (PWR-C5-600WAC
-
PoE Budget: Up to 370W
-
Fan Modules: Fixed
-
Physical Dimensions: 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm
-
Weight: 12.0 lbs (5.44 kg
Performance
-
Switching Capacity: 292 Gbps
-
Forwarding Rate: 229.16 Mpps
-
DRAM: 2 GB
-
Flash Memory: 4 GB
-
VLAN Support: 4094 VLANs
-
MAC Address Table Size: 16,000 entries
-
Jumbo Frame Support: Up to 9198 bytes
Software & Features
-
Operating System: Cisco IOS XE
-
License Tier: Network Advantage
-
Routing Protocols: OSPF, EIGRP, IS-IS, RIP, VRF
-
Security Features: MACsec-128, 802.1X, ACLs, Trustworthy Solutions
Frequently Asked Questions
How many multigigabit ports does this switch support?
It includes 8 multigigabit PoE+ ports that support speeds up to 10G, plus 16 standard 1G PoE+ ports.
What uplinks are included on this model?
The switch includes 2 fixed 1/10/25G SFP28 uplink ports.
Can this switch be stacked with other C9200L models?
Yes. It supports StackWise-80 and can stack with other C9200L switches, up to 8 units in total.
What power supply is included?
This model comes with a 600W AC power supply (PWR-C5-600WAC by default, delivering up to a 370W PoE budget.
