[shortdesc]
- Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (370W, Layer 2
[/shortdesc]
[properties]
| Product Name |
MS120-24P-HW |
| Description |
Cisco Meraki MS120-24P, a cloud-managed 24-port Gigabit Ethernet switch with 370W PoE power, designed for enterprise networking and easy management. |
| Switch Type |
Cloud-managed Layer 2 switch |
| Total Ports |
24 x Gigabit Ethernet (PoE+ |
| PoE Power Budget |
370W (802.3af/at PoE+ |
| Uplink Ports |
4 x 1G SFP |
| Management |
Cloud-based via Meraki dashboard |
| Operating Temperature |
0°C to 40°C (32°F to 104°F |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F |
| Humidity |
5% to 95% non-condensing |
| Dimensions |
44.0 cm x 25.4 cm x 4.5 cm (17.3 in x 10.0 in x 1.8 in |
| Weight |
3.6 kg (7.9 lb |
| Mounting Options |
Rack-mountable (1U, mounting brackets included |
| Power Supply |
Internal power supply |
| Cooling |
Fanless design for silent operation |
| Usage |
Ideal for small to medium-sized enterprise networks |
| Durability |
Designed for continuous operation in commercial environments |
[/properties]
[specifications]
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
41.7 Mpps |
| PoE Standard |
IEEE 802.3af/at (PoE+ |
| Latency |
0.7 microseconds for 64-byte packets |
| Certifications |
CE, FCC, RoHS compliant |
| Environmental Safety |
Mercury-free, low-halogen materials used |
| EMC Compliance |
Meets international EMC standards for networking equipment |
| Power Consumption |
Maximum 425W (with PoE load |
| Stacking Support |
Virtual stacking managed through cloud dashboard |
| MTBF |
1,300,000 hours |
| Security Features |
Port security, MAC-based RADIUS authentication, 802.1X |
| Management Features |
Remote monitoring, firmware updates, and configuration via Meraki dashboard |
| VLAN Support |
Supports up to 4,094 VLANs |
| QoS |
Quality of Service for prioritizing critical traffic |
| Deployment |
Optimized for enterprise, branch, and campus networks |
| Monitoring |
Real-time network monitoring and troubleshooting via cloud dashboard |
| Firmware Compatibility |
Automated firmware updates via the cloud |
[/specifications]

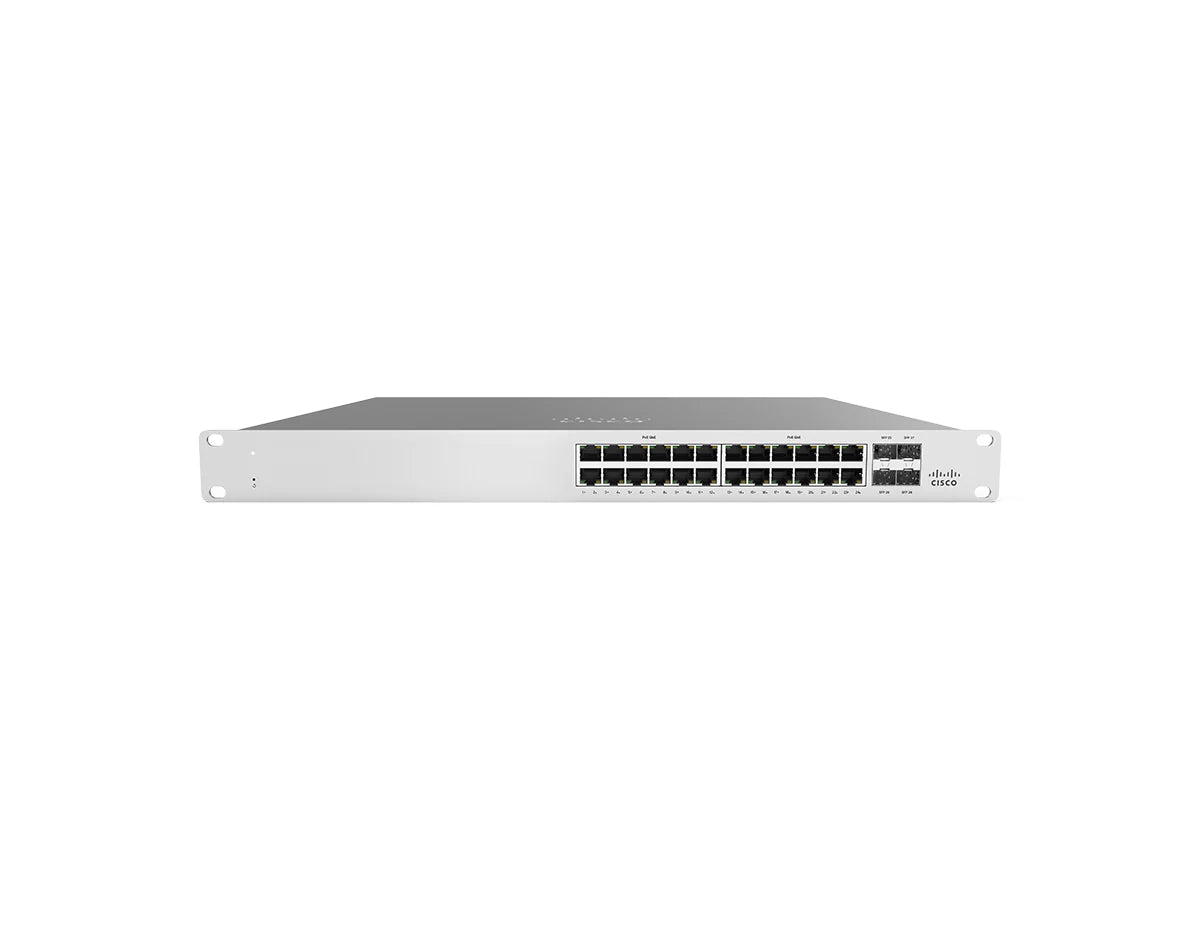

Cisco MS120-24P-HW Switch
The Cisco MS120-24P-HW is a cloud-managed 24-port Gigabit Ethernet switch designed for simplified management and high-performance networking in small to medium-sized businesses. Featuring 24 PoE-enabled ports with a power budget of 370W and 4 SFP uplinks, this switch delivers reliable power and connectivity for devices such as IP phones, cameras, and access points. The MS120-24P-HW integrates seamlessly with Cisco's cloud-based management platform, offering centralized control and easy deployment.
Key Features:
-
24 x Gigabit PoE Ports: Provides both power and connectivity to devices like IP phones and cameras with a total PoE budget of 370W.
-
4 x Gigabit SFP Uplinks: Ensures reliable high-speed uplinks for seamless network expansion.
-
Cloud-Based Management: Simplifies network management with Meraki’s centralized dashboard for monitoring, configuration, and automation.
-
Energy-Efficient Design: Supports IEEE 802.3az standards to minimize power consumption.
-
Zero-Touch Provisioning: Facilitates easy, remote configuration and deployment without on-site setup.
Technical Overview:
-
Recommended for: Small to medium-sized businesses and branch offices.
-
Ports: 24 x 10/100/1000 PoE Ethernet ports, 4 x Gigabit SFP uplinks.
-
PoE Power Budget: 370W.
-
Switching Capacity: 128 Gbps.
-
Forwarding Rate: 41.67 Mpps.
-
Stacking Bandwidth: 80 Gbps.
You can check the related tab for the MS120-24P-HW datasheet.
