[shortdesc] AC 100-240 V, for Catalyst IE3200 Rugged Series, 50 Watt
[/shortdesc] [properties]
| Properties |
Cisco PWR-IE50W-AC |
| Description |
Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| Product Family |
Industrial Ethernet 3000 |
| Product Type |
Power Supply |
| Configurations |
Expansion Power Module for Cisco IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E and IE-3000-8TC-E switches, supports input AC 100-240V/1.25A or Input DC 125-250V/1A, Output DC 24V/2.1A, DIN-Rail Mount, compatible with PWR-IE3000-AC |
| Dimensions (HxWxD) Inches |
2.0”W x 5.8”H x 4.4”D (51mm W x 147mm H x 112mm D |
| Weight |
1.4 lb (0.65 kg) |
| Input voltage and currents supported |
100-240VAC/1.25A |
[/properties] [specifications]
| Specifications |
PWR-IE50W-AC |
| Mean Time Between Failures (MTBF) |
1,662,359 |
| Operating Temperature |
• -40C to +75C
• -40C to +70C (Vented Enclosure – 40 LFM Air Flow)
• -40C to +60C (Sealed Enclosure – 0 LFM Air Flow)
• -24C to +75C (Fan or Blower equipped Enclosure – 200 LFM Air Flow)
• -40C to +85C (IEC 60068-2-2 Environmental Type Testing – 16 hours) |
| Storage Temperature |
-40 C to +85 C |
| Operating Altitude |
Up to 13,000 ft (3963m) |
| Storage Altitude |
Up to 15,000 ft (4573m) |
| Standard safety certifications |
UL 60950-1
CSA C22.2 No. 60950-1
TUV/GS to EN 60950-1
CB to IEC 60950-1 with all country deviations
NOM
|
| Electromagnetic emissions |
FCC Part 15 Class A
EN 55022
CISPR 22
CISPR11
VCCI Class A
AS/NZS 3548 Class A
CNS 13438 Class A
KN 22 Class A |
| Electromagnetic immunity |
EN 55024
AS/NZS CISPR 24
KN 24
IEC/EN 61000-4-2 (Electro Static Discharge)
IEC/EN 61000-4-3 (Radiated Immunity)
IEC/EN 61000-4-4 (Fast Transients)
IEC/EN 61000-4-5 (Surge)
IEC/EN 61000-4-6 (Conducted Immunity)
IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)
IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)
IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)
IEC/EN 61000-4-11 (AC power Voltage Immunity)
IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances)
IEC/EN 61000-4-17 (Ripple on DC Input Power)
IEC/EN 61000-4-18 (Damped Oscillatory Wave)
IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power)
IEEE C37.90 (Surge)
IEEE C37.90.1 (Fast Transients)
IEEE C37.90.2 (Radiated Immunity)
IEEE C37.90.3 (Electro Static Discharge) |
| Mechanical stability |
IEC 60628-2-27 Shock 20g (operational), 30g (nonoperational)
|
| Industry specifications |
EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical)
IEEE 1613 Power Station and Substation Networking Devices
IEC 61850-3 Power Station and Substation Communication Networks and Systems
EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC
EN 61000-6-1 Immunity for Light Industrial Environments
EN 61000-6-2 Immunity for Industrial Environments
EN 61000-6-4 Emissions for Industrial Environments
TS 61000-6-5 EMC Immunity for Power Station and Substation
EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical)
EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock
EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus
EN 60945 Maritime Navigation and Radio-communication Equipment and Systems
IEC 60533 Shipboard Electrical and Electronic Installation EMC
Marine Type Approval (BV, DNV, Korean Register, Lloyd Register)
NEMA TS-2 (EMC, environmental, mechanical)
ABB Industrial IT certification
ODVA Industrial EtherNet/IP support
PROFINETv2 support
Directive 2011/65/EU RoHS
IP20 |
| Hazardous locations |
UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure)
EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure)
IEC 60079-0, -15 (Test report only) (requires cabinet enclosure)
UL 508
CSA C22.2 No. 142 |
| Humidity |
Relative humidity: 5% to 95% non-condensing |
[/specifications] [accesories]
| Accessories and License Upgrade PIDs |
| IEM-3000-8TM= |
● Expansion Copper module for Cisco IE-3000-4TC and IE-3000-8TC switches
● 8 10/100 TX ports
● 2.8W |
| IEM-3000-8FM= |
● Expansion Fiber module for Cisco IE-3000-4TC and IE-3000-8TC switches
● 8 100 FX ports
● 10.1W |
| IEM-3000-4SM= |
● Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches
● 4 100M SFP ports
● 7.6W |
| IEM-3000-8SM= |
● Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches
● 8 100M SFP ports
● 12.2W |
| IEM-3000-4PC= |
● Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches
● 4 10/100 PoE/PoE+ ports
● External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+)
● 7.3W |
| IEM-3000-4PC-4TC= |
● Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches
● 4 non-PoE ports and 4 10/100 PoE/PoE+ ports
● External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+)
● 7.9W |
| PWR-IE50W-AC= |
Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| PWR-IE50W-AC-IEC= |
Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| PWR-IE65W-PC-AC= |
AC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules |
| PWR-IE65W-PC-DC= |
DC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules |
| CAB-SM-LCSC-1M |
1m-fiber single-mode LC-to-SC connectors |
| CAB-SM-LCSC-5M |
5m-fiber single-mode LC-to-SC connectors |
| CF-IE3000= |
IE 3000 Compact Flash |
| PWR-IE3000-CLP= |
IE 3000 Power Transformer Spare connector clip |
| PWR-IE3000-CNCT= |
IE 3000 Power Spare connector |
| LPNL-IE3000= |
IE 3000 Left Panel Spare |
| RPNL-IE3000= |
IE 3000 Right Panel Spare |
| DINCLP-IE3000= |
Din-rail clip 4 pack Spare |
| BMP-IE3000= |
Din-rail clip bumper 4 pack Spare |
| STK-RACKMNT-2955= |
Din-rail adapter for rack mounting |
| IE-SW-SPARE |
Spare IOS software upgrade part number (L2 to L3 features) |
| IE3000-DNA-E-L |
DNA Essentials license |
| IE3000-DNA-E-L-3Y |
DNA Essentials 3-year term license option |
| IE3000-DNA-E-L-5Y |
DNA Essentials 5-year term license option |
| GLC-FE-100FX-RGD= |
100BASE-FX |
| GLC-FE-100LX-RGD |
100BASE-LX10 |
| GLC-FE-T-I= |
100BASE-T |
| GLC-FE-100FX= |
100BASE-FX |
| GLC-FE-100LX= |
100BASE-LX10 |
| GLC-FE-100EX= |
100BASE-EX |
| GLC-FE-100ZX= |
100BASE-ZX |
| GLC-FE-100BX-D= |
100BASE-BX10 |
| GLC-FE-100BX-U= |
100BASE-BX10 |
| GLC-SX-MM-RGD= |
1000BASE-SX |
| GLC-LX-SM-RGD= |
1000BASE-LX/LH |
| GLC-ZX-SM-RGD= |
1000BASE-ZX |
| GLC-BX40-U-I= |
1000BASE-BX40 |
| GLC-BX40-D-I= |
1000BASE-BX40 |
| GLC-BX40-DA-I= |
1000BASE-BX40 |
| GLC-BX80-U-I= |
1000BASE-BX80 |
| GLC-BX80-D-I= |
1000BASE-BX80 |
| GLC-SX-MMD= |
1000BASE-SX |
| GLC-LH-SMD= |
1000BASE-LX/LH |
| GLC-EX-SMD= |
1000BASE-EX |
| GLC-ZX-SMD= |
1000BASE-ZX |
| GLC-BX-D= |
1000BASE-BX10 |
| GLC-BX-U= |
1000BASE-BX10 |
| CWDM-SFP-xxxx= (8 freq) |
CWDM 1000BASE-X |
| DWDM-SFP-xxxx= (40 freq) |
DWDM 1000BASE-X |
| SFP-GE-S= |
1000BASE-SX |
| SFP-GE-L= |
1000BASE-LX/LH |
| SFP-GE-Z= |
1000BASE-ZX |
| GLC-SX-MM= |
1000BASE-SX |
| GLC-LH-SM= |
1000BASE-LX/LH |
| GLC-ZX-SM= |
1000BASE-ZX |
| GLC-TE= |
1000BASE-T |
| GLC-T= |
1000BASE-T |
| GLC-T-RGD= |
1000BASE-T |
[/accesories]

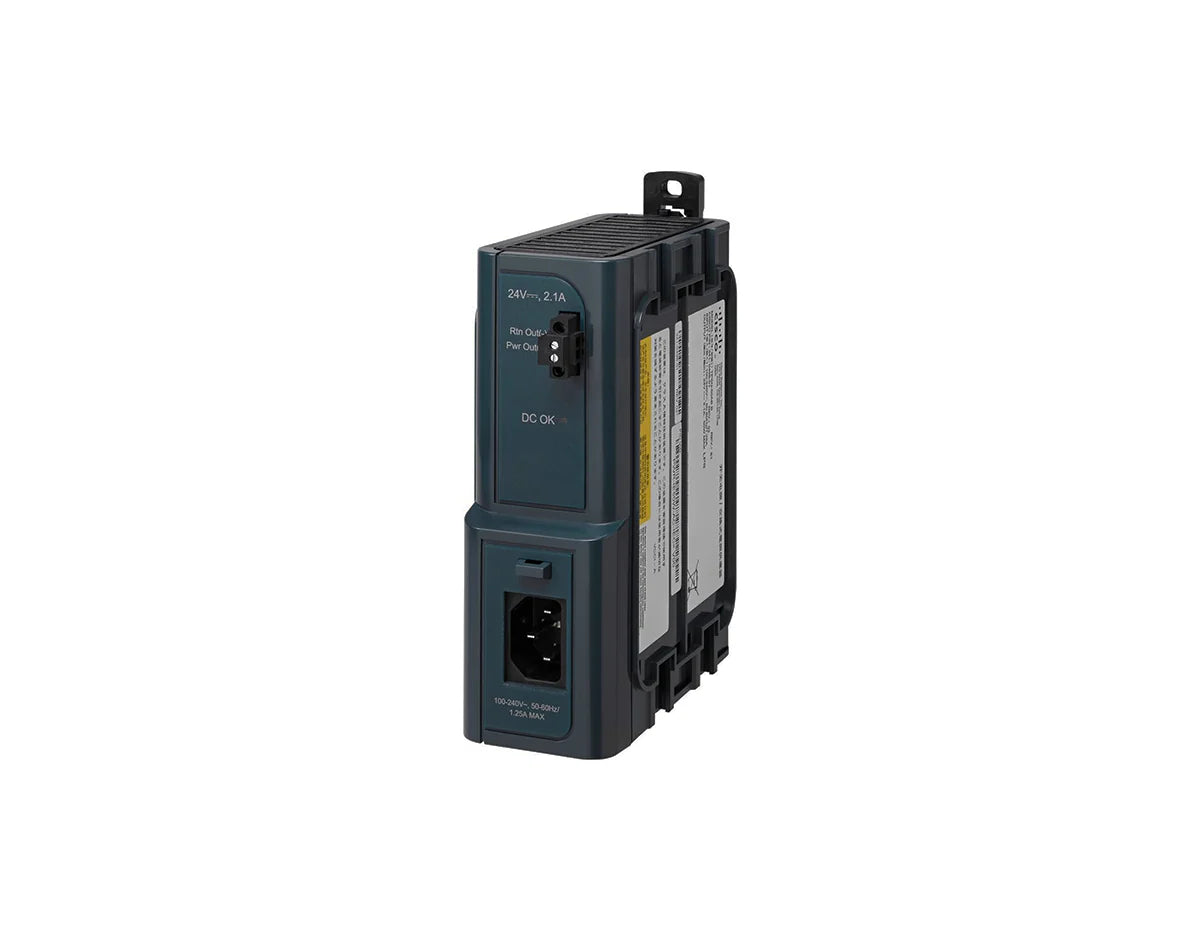

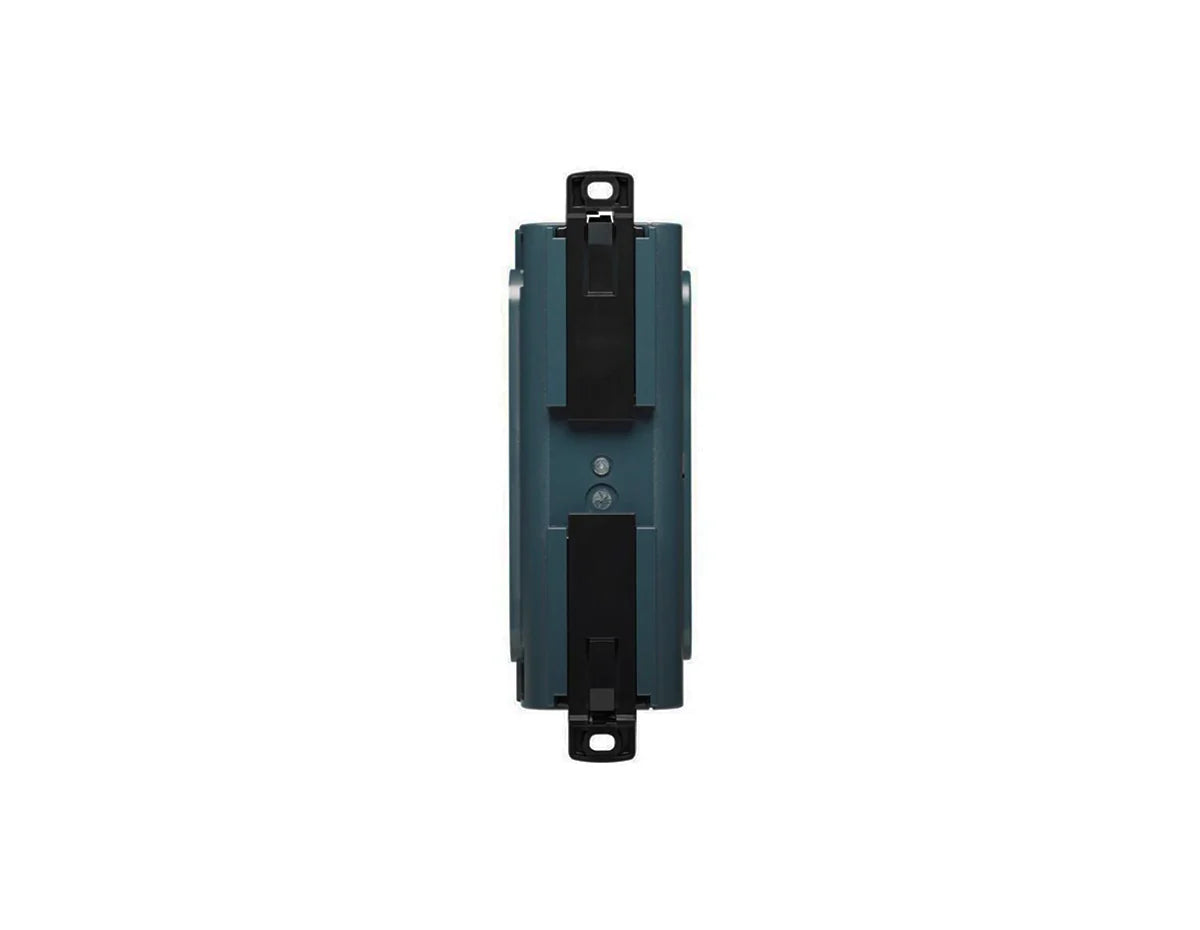

Cisco PWR-IE50W-AC-L Power Supply
Cisco's industrial din-rail power supply portfolio provides versatile options for powering industrial networking equipment. The PWR-IE50W-AC-L delivers a power of 50 watts - AC to DC. Key features comprise operating, din-rail mountable designs, support for high-capacity Power over Ethernet (PoE), options for conformal coating.
Key Features:
- 50W
- High-capacity PoE
- Din-rail
For detailed specifications, refer to the Cisco PWR-IE50W-AC-L datasheet in the tabs.
