[shortdesc] NGFW firewall, integrated Wi-Fi 5 Wave 2, secure SD-WAN, fanless desktop design, FortiOS platform [/shortdesc]
[properties]
| Model |
FortiWiFi 60F |
| SKU |
FWF-60F-A |
| Product Type |
Next Generation Firewall Security Appliance |
| Form Factor |
Desktop |
| Processor |
Fortinet FortiASIC SoC4 |
| Firewall Throughput |
10 Gbps |
| IPS Throughput |
1.4 Gbps |
| NGFW Throughput |
1 Gbps |
| Threat Protection Throughput |
700 Mbps |
| Concurrent Sessions |
700,000 |
| New Sessions per Second |
35,000 |
| Wireless Standard |
802.11 a/b/g/n/ac Wave 2 |
| Wi-Fi Bands |
2.4 GHz and 5 GHz |
| Maximum Wi-Fi Speed |
1300 Mbps (5 GHz), 450 Mbps (2.4 GHz) |
| Ethernet Interfaces |
2 x GE RJ45 WAN, 1 x GE RJ45 DMZ, 5 x GE RJ45 Internal, 2 x GE RJ45 FortiLink |
| USB Ports |
1 x USB |
| Console Port |
1 x RJ45 |
| Internal Storage |
None |
| Noise Level |
Fanless (0 dBA) |
| Power Supply |
External DC Power Adapter |
| Dimensions (H x W x D) |
38.5 x 216 x 160 mm |
| Weight |
1.01 kg |
[/properties]
[specifications]
| Firewall Latency |
3.3 microseconds (64 byte UDP) |
| Firewall Throughput (Packets) |
9 Mpps |
| IPsec VPN Throughput |
6.5 Gbps |
| Gateway-to-Gateway VPN Tunnels |
200 |
| Client-to-Gateway VPN Tunnels |
500 |
| SSL VPN Throughput |
900 Mbps |
| Concurrent SSL VPN Users |
200 |
| SSL Inspection Throughput |
630 Mbps |
| Application Control Throughput |
18 Gbps |
| CAPWAP Throughput |
8 Gbps |
| Virtual Domains |
10 |
| Maximum FortiSwitches Supported |
24 |
| Maximum FortiAPs Supported |
64 (32 in Tunnel Mode) |
| Power Consumption |
17.2 W average, 18.7 W maximum |
| Operating Temperature |
0 C to 40 C |
| Storage Temperature |
-35 C to 70 C |
| Operating Humidity |
10% to 90% non-condensing |
| Operating Altitude |
Up to 2250 m |
| Certifications |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6 |
[/specifications]
[accesories]
| Included |
External DC Power Adapter |
| Optional |
Rack Mount Tray SP-RACKTRAY-02; Wall Mount Kit SP-FG60F-MOUNT-20; AC Power Adapter SP-FG60E-PDC-5 |
[/accesories]
Secure Branch Connectivity with Integrated Wireless

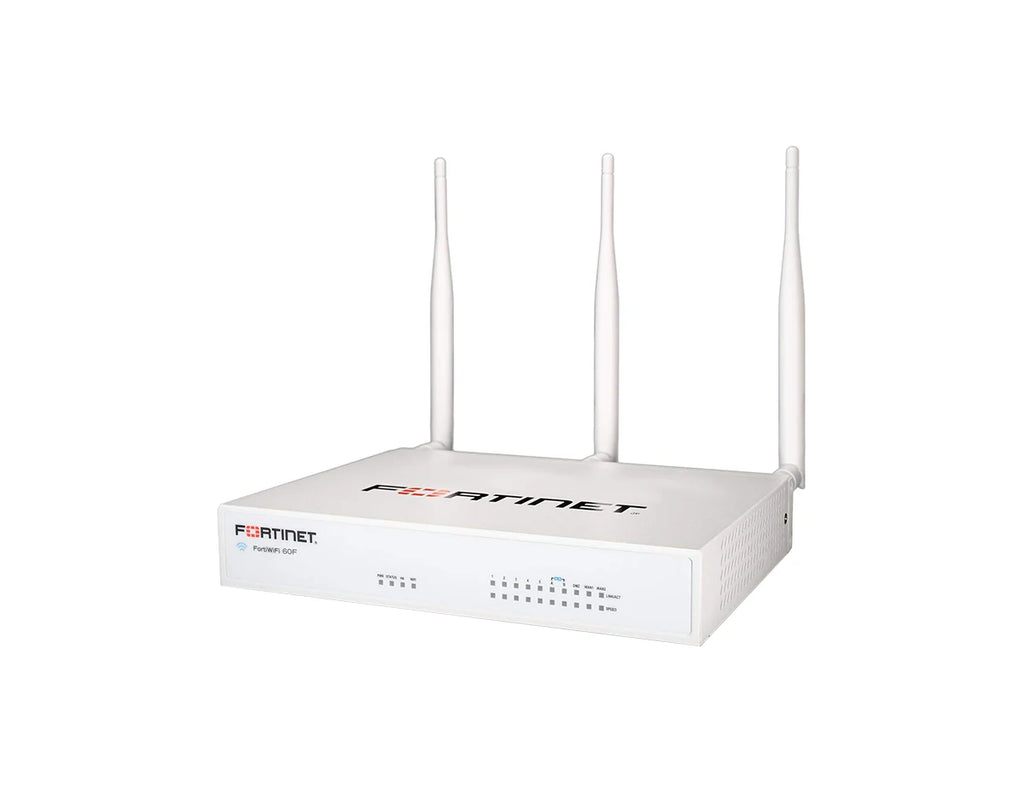

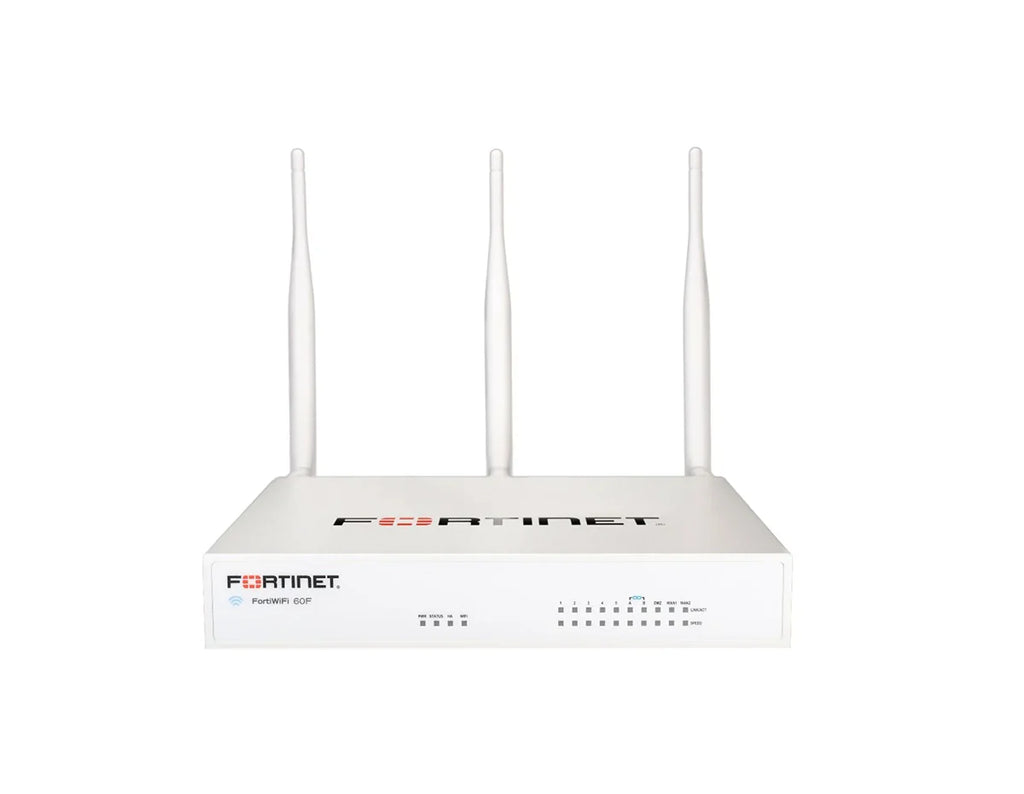

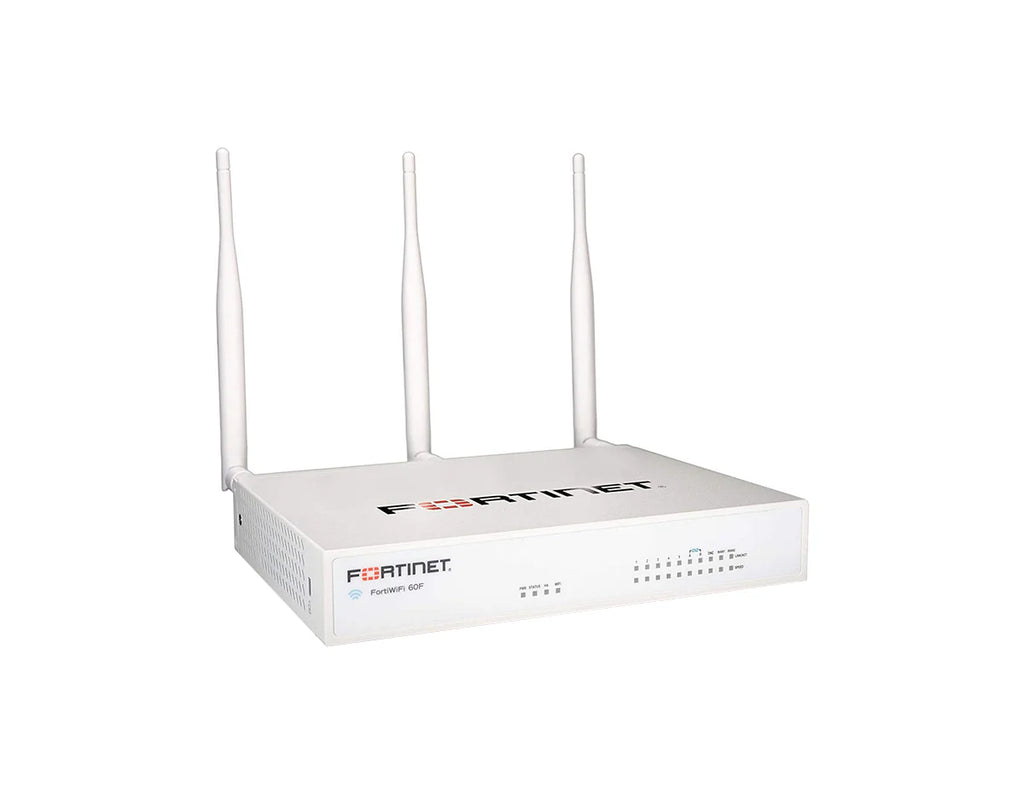

The Fortinet FortiWiFi 60F (FWF-60F-A) is a compact next-generation firewall designed for branch offices and small to mid-size businesses that need strong security and built-in wireless connectivity. Powered by FortiOS and Fortinet purpose-built SOC4 ASIC, it combines firewalling, SD-WAN, and Wi-Fi 5 in a single appliance to reduce complexity while maintaining enterprise-grade protection.
This all-in-one platform enables secure wired and wireless access, high-speed threat inspection, and centralized management without requiring additional controllers or access points.
Key Benefits & Features
-
Integrated Next-Generation Firewall: Delivers advanced firewall, IPS, application control, and threat protection in one device.
-
Built-in Wi-Fi 5 Wave 2: Single-radio 802.11a/b/g/n/ac Wave 2 wireless supports both 2.4 GHz and 5 GHz bands for secure office connectivity.
-
High-Performance SOC4 ASIC: Hardware acceleration enables up to 1 Gbps NGFW throughput and 700 Mbps threat protection.
-
Secure SD-WAN Capabilities: Optimizes application traffic across WAN links with integrated SD-WAN at no extra cost.
-
Fanless Desktop Form Factor: Silent operation and compact design ideal for offices, retail, and remote sites.
Ideal Use Cases
- Branch offices requiring unified security and wireless access
- Retail stores and franchises with limited IT space
- Small to mid-size enterprises deploying secure SD-WAN
- Remote sites needing centralized security management
- Organizations consolidating firewall and Wi-Fi infrastructure
Technical Specifications
-
Firewall Throughput: Up to 10 Gbps
-
NGFW Throughput: Up to 1 Gbps
-
Threat Protection Throughput: Up to 700 Mbps
-
Wireless Standard: 802.11a/b/g/n/ac Wave 2
-
Ethernet Ports: 10x GE RJ45 total including WAN, DMZ, internal, and FortiLink ports
-
Concurrent Sessions: Up to 700,000
-
Form Factor: Desktop, fanless
-
Operating System: FortiOS
