[shortdesc]
- Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G/10G SFP+ Uplinks, PoE+ (740W, Layer 3
[/shortdesc]
[properties]
| Properties |
HPE OfficeConnect 2930F JL558A |
| Description |
The Aruba 2930F JL558A is a 52-port Gigabit + 10G access switch with 48 PoE+ ports and 4 SFP+ uplinks, delivering a 740W PoE+ budget for enterprise-grade networking |
| Product Family |
2930F Series |
| Product Type |
Ethernet Switch |
| I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less |
| Additional ports and slots |
1 dual-personality (RJ-45 or USB micro-B serial console port |
| Frequency |
50/60 Hz |
| Voltage |
100 - 127 / 200 - 240 VAC, rated |
| Current |
9.2/4.9 A |
| Maximum heat dissipation |
420.9 BTU/hr (444.1 kJ/hr |
| Maximum power rating |
980 W |
| Idle power |
49.9 W |
| PoE power |
740 W PoE+ |
| Dimensions |
1.73 x 17.42 x 12.77 in (4.39 x 44.25 x 32.42 cm |
| Weight |
10.56 lb (4.79 kg |
[/properties][specifications]
| Specifications |
2930F-JL558A |
| CPU |
Dual Core ARM Cortex A9 @ 1016 MHz, 4 GB Emmc |
| Memory and Flash |
1 GB DDR3 SDRAM 4 GB Emmc |
| Packet Buffer |
12.38 MB 4.5 MB Ingress/7.875 MB Egress |
| 1000 Mb Latency |
< 3.8 μs (64-byte packets |
| 10 Gbps Latency |
< 1.6 μs (64-byte packets |
| Throughput |
up to 112.0 Mpps |
| Switching capacity |
176 Gbps |
| Routing table size |
2,000 entries (IPv4, 1,000 entries (IPv6 |
| MAC address table size |
32,768 entries |
| Management |
Aruba Central; Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP |
| Operating temperature |
32°F to 113°F (0°C to 45°C; up to 5,000 Feet,
0°C to 40°C (32°F to 104°F up to 10,000 Feet |
| Airflow direction |
Side-to-side |
| Acoustic |
Power: 55.1 dB, Pressure: 41.1 dB |
| Safety |
UL 60950-1: 2nd Edition;
UL 62368-1: 2nd Edition;
EN 60950-1:2006 +A11:2009
+A1:2010 +A12:2011+A2:2013;
EN 62368-1: 2nd Edition;
IEC 60950-1:2005 +A1:2009
+A2:2013; CSA 22.2 No. 60950-1-07
2nd; IEC-62368-1: 2nd Edition;
EN 60825-1:2014 / IEC 60825- 1:2014 Class 1 |
| Emissions |
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438 |
| Immunity |
EN 55024, CISPR 24
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3 |
[/specifications][accesories]
| Cables |
| JL448A |
Aruba X2C2 RJ45 to DB9 Console Cable |
| Mounting Kit |
| J9583A |
HPE X410 1U Universal 4-post Rack Mounting Kit |
| J9583B |
Aruba X414 1U Universal 4-post Rack Mounting Kit |
| Transceivers |
|
| J9054D |
Aruba 100M SFP LC FX 2km MMF XCVR |
| J9054DCM |
Aruba CM 100M SFP LC FX 2km MMF XCVR |
| J4858D |
Aruba 1G SFP LC SX 500m MMF XCVR |
| J4858DCM |
Aruba CM 1G SFP LC SX 500m MMF XCVR |
| J4859D |
Aruba 1G SFP LC LX 10km SMF XCVR |
| J4859DCM |
Aruba CM 1G SFP LC LX 10km SMF XCVR |
| J4860D |
Aruba 1G SFP LC LH 70km SMF XCVR |
| J4860DCM |
Aruba CM 1G SFP LC LH 70km SMF XCVR |
| J8177D |
Aruba 1G SFP RJ45 T 100m Cat5e XCVR |
| J8177DCM |
Aruba CM 1G SFP RJ45 T 100m Cat5e XCVR |
| J9150D |
Aruba 10G SFP+ LC SR 300m MMF XCVR |
| J9150DCM |
Aruba CM 10G SFP+ LC SR 300m MMF XCVR |
| J9151E |
Aruba 10G SFP+ LC LR 10km SMF XCVR |
| J9151ECM |
Aruba CM 10G SFP+ LC LR 10km SMF XCVR |
| J9153D |
Aruba 10G SFP+ LC ER 40km SMF XCVR |
| J9281D |
Aruba 10G SFP+ to SFP+ 1m DAC Cable |
| J9283D |
Aruba 10G SFP+ to SFP+ 3m DAC Cable |
| Note: 2930F Series Switches do not support the use of 10G LRM, nor 7M 10G DAC |
[/accesories]

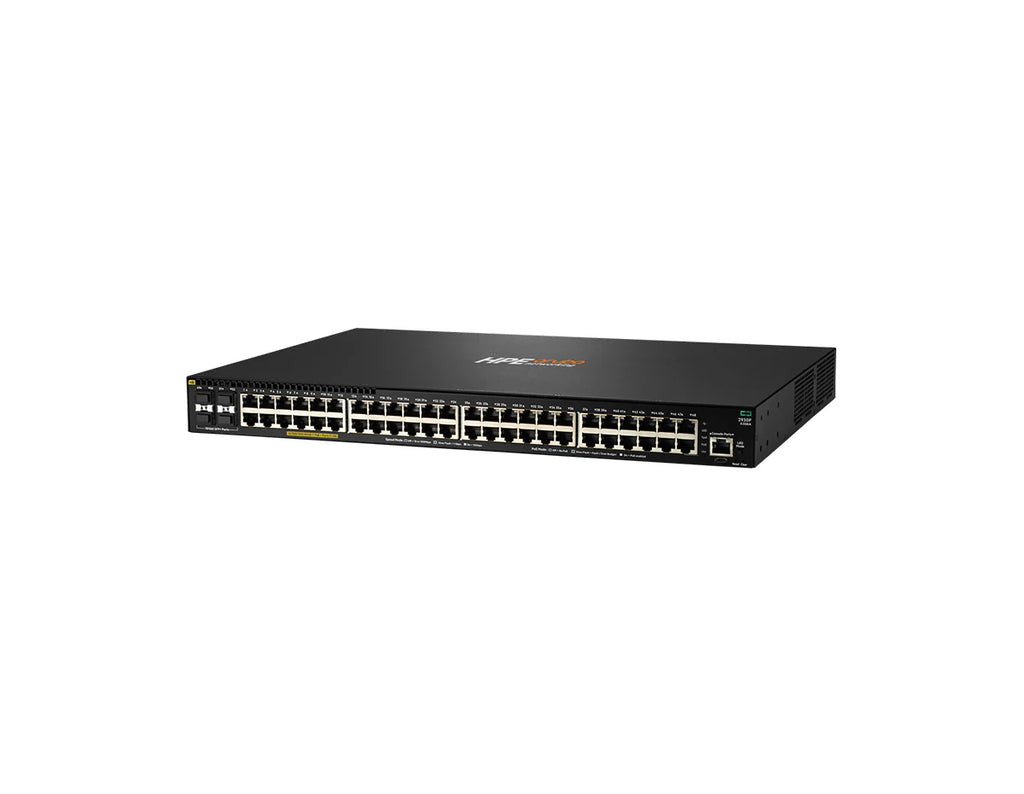

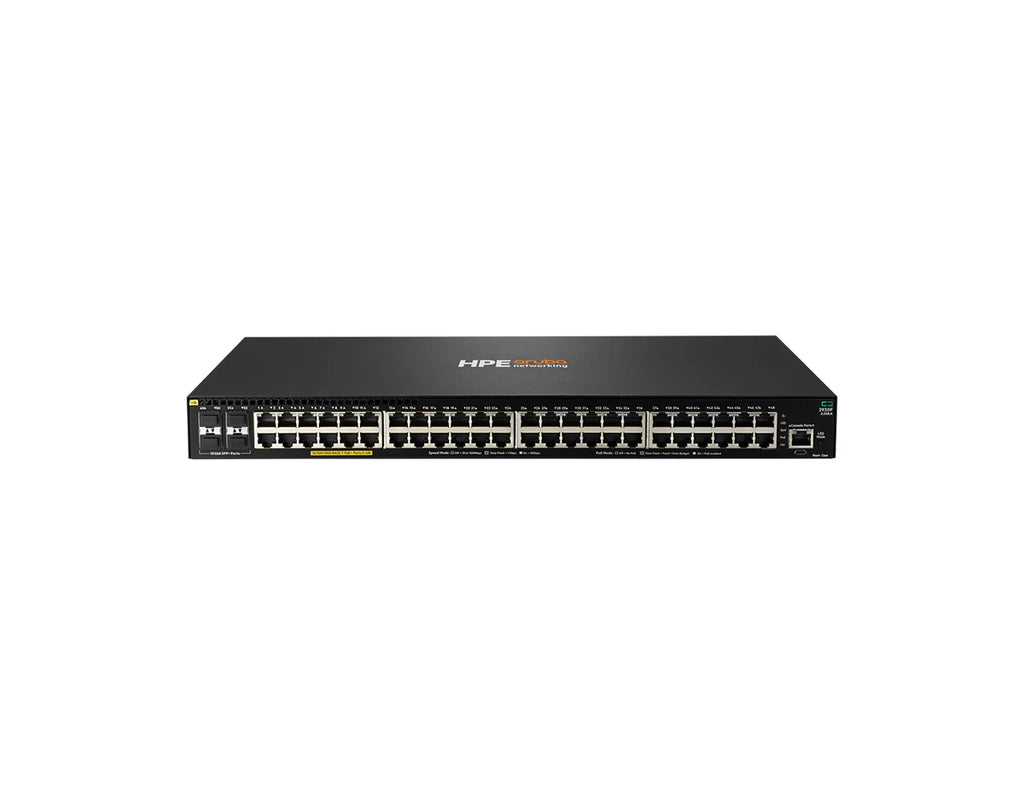

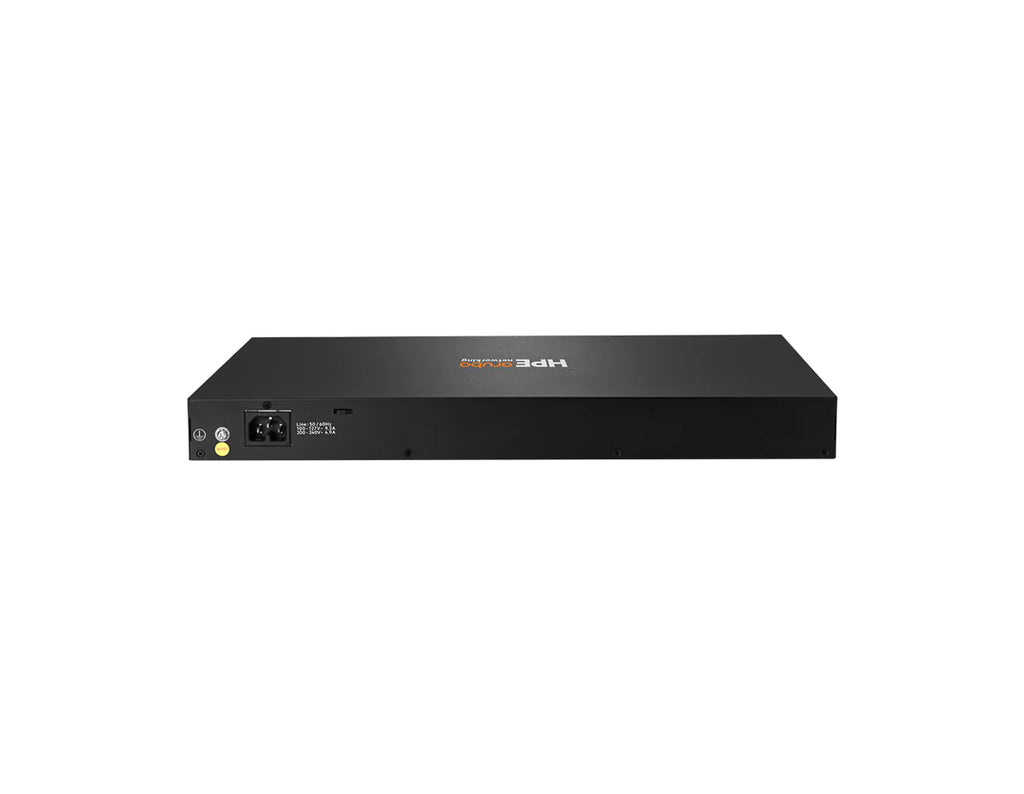

HPE Aruba 2930F 48G PoE+ 4SFP+ 740W Switch (JL558A
The HPE Aruba 2930F 48G PoE+ 4SFP+ 740W Switch (JL558A is a powerful networking solution for businesses looking to deliver reliable performance with PoE+ capabilities. Featuring 48 Gigabit Ethernet PoE+ ports and 4 SFP+ uplinks, this switch supports high-speed data and power delivery for connected devices like IP phones, wireless access points, and security cameras. Its 740W PoE budget ensures that it can handle multiple PoE devices, providing an efficient and scalable network for growing environments.
Key Features:
-
48 x 1GbE PoE+ Ports: Delivers up to 30W per port, providing both data and power for PoE-enabled devices.
-
4 x SFP+ Uplink Ports: Offers high-speed 10GbE uplinks for efficient network expansion.
-
740W PoE Power Budget: Ensures sufficient power for multiple connected devices, reducing the need for external power sources.
-
Layer 3 Features: Includes OSPF, static routing, and RIP for advanced network management.
-
Centralized Management: Managed via Aruba Central, CLI, or web-based GUI for streamlined monitoring and control.
Technical Overview:
-
Recommended for: Enterprises, branch offices, and growing SMBs.
-
Ports: 48 x 1GbE PoE+ ports, 4 x 10GbE SFP+ uplinks.
-
Switching Capacity: 176 Gbps.
-
Forwarding Rate: 112 Mpps.
-
PoE Power Budget: 740W for powering PoE-enabled devices.
-
Management: Managed via Aruba Central, CLI, or web-based GUI.
-
Energy Efficiency: Compliant with IEEE 802.3az for energy-efficient operation.
